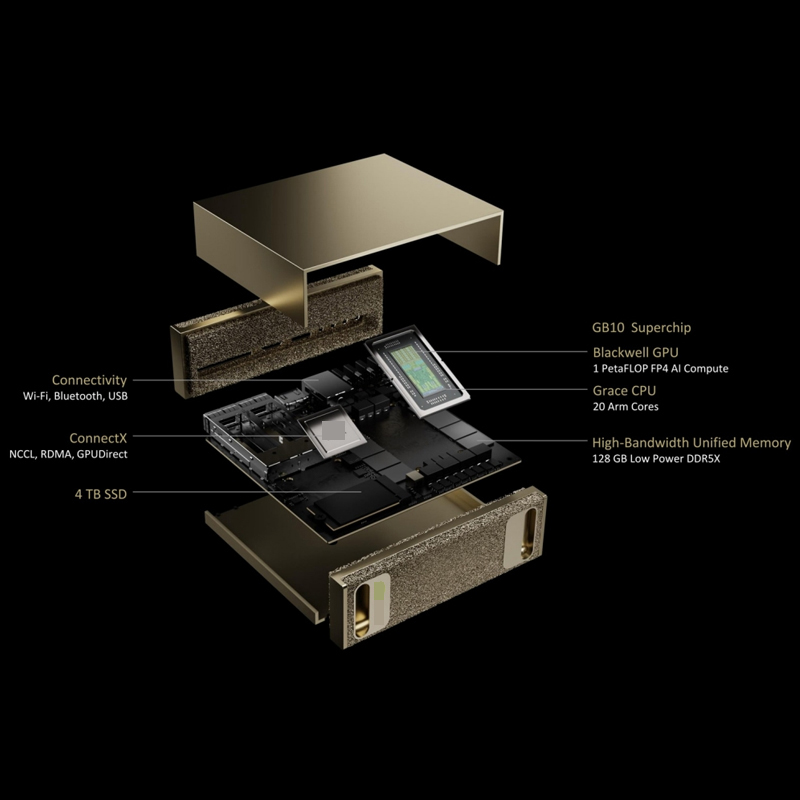

| System Architecture | * Chipset: GB10 Grace Blackwell Superchip * Combines a 20-core Arm CPU with a Blackwell GPU via NVLink-C2C interconnect * Coherent unified memory architecture for CPU-GPU data sharing |
| CPU | 20-core Arm v9 processor * 10× Cortex-X925 cores (high-performance) * 10× Cortex-A725 cores (energy-efficient) |
| GPU | Blackwell architecture with: * 6,144 CUDA cores (equivalent to RTX 5070) * 5th-generation Tensor Cores (1,000 AI TOPS FP4 precision) * 4th-generation RT Cores (ray tracing acceleration) |
| Video Engines | 1× NVENC (9th gen), 1× NVDEC (5th gen) |
| System Memory | 28GB LPDDR5X unified memory * 256-bit interface, 273GB/s bandwidth * Supports models up to 200B parameters locally, 405B parameters with dual-node clustering |
| Storage | 4TB NVMe M.2 SSD (self-encrypting) |
| Networking | * ConnectX-7 Smart NIC (200Gbps RDMA for clustering) * 10GbE RJ45 port * Wi-Fi 7 (802.11be) + Bluetooth 5.3 |
| Interfaces | * 4× USB4 Type-C (40Gbps) * 1× HDMI 2.1a (supports 8K video output) * Audio: HDMI multichannel audio |
| Power Consumption | * 170W typical operation * Up to 224W peak under heavy load |
| Cooling | Passive airflow design optimized for silent operation |
| Physical Specifications | * Dimensions: 150mm (L) × 150mm (W) × 50.5mm (H) * Weight: 1.2kg * Form Factor: FHFL dual-slot (rack-mountable with optional kit) |
| Operating System | DGX OS (Ubuntu 22.04-based) * Pre-installed AI Enterprise software stack * Supports frameworks: PyTorch, TensorFlow, RAPIDS |

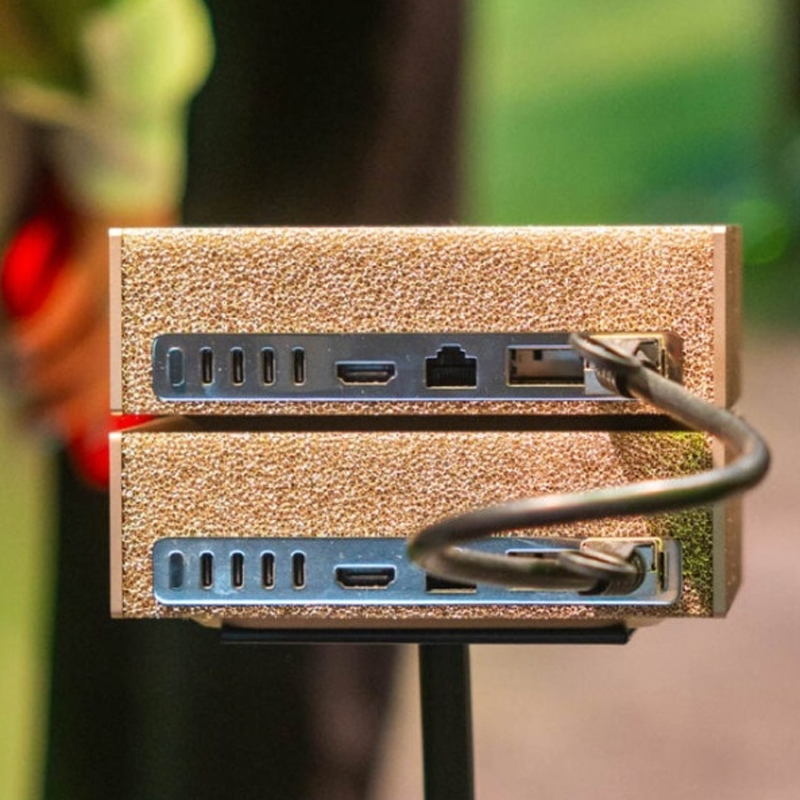

| Model Capabilities | * Inference: Up to 200B parameters (e.g., LLaMA 2, DeepSeek-R1) * Fine-tuning: Up to 70B parameters * Distributed training: Scale to 405B parameters with dual DGX Spark nodes |
| Security | * Secure Boot and ECC memory protection * Confidential computing with ARM TrustZone |
| Development Tools | * AI Enterprise Suite (cuDNN, TensorRT, etc.) * NGC container registry access |
Security is integrated into every phase of the lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.
Increase efficiency and accelerate operations with autonomous collaboration. Simplify, automate and centralize one-to-many management with the Enterprise console and iDRAC for high-density environments.
Designed to reduce the carbon footprint and lower operation costs through recycled materials and innovative energy efficiency options. Built for responsible lifecycle management and energy-conscious data center deployment.
Designed for 24x7 enterprise data center operations, it features enterprise-grade components and energy-efficient hardware optimized for deployment at scale. Supports Secure Boot with Hardware Root of Trust technology, provides an extra layer of security, and meets NEBS Level 3 standards to meet new data center standards.
The passively cooled, energy-efficient, dual-socket design fits a wide range of Tesla-Certified systems from OEM vendors and is easy to integrate into existing data center infrastructure.
