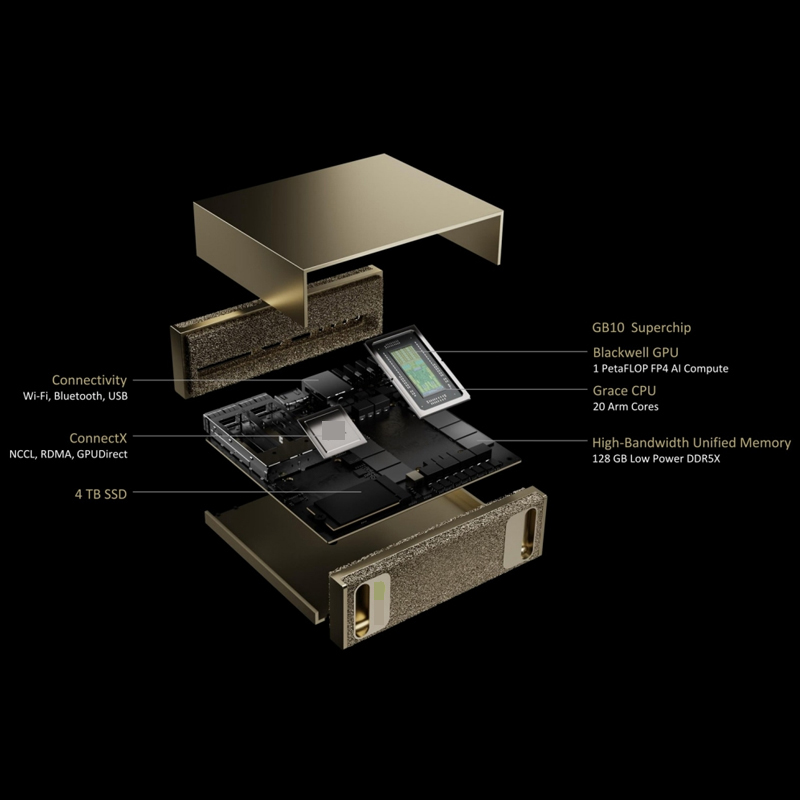

| System Architecture | * Chipset: GB10 Grace Blackwell Superchip * Combines a 20-core Arm CPU with a Blackwell GPU via NVLink-C2C interconnect * Coherent unified memory architecture for CPU-GPU data sharing |
| CPU | 20-core Arm v9 processor * 10× Cortex-X925 cores (high-performance) * 10× Cortex-A725 cores (energy-efficient) |
| GPU | Blackwell architecture with: * 6,144 CUDA cores (equivalent to RTX 5070) * 5th-generation Tensor Cores (1,000 AI TOPS FP4 precision) * 4th-generation RT Cores (ray tracing acceleration) |
| Video Engines | 1× NVENC (9th gen), 1× NVDEC (5th gen) |
| System Memory | 28GB LPDDR5X unified memory * 256-bit interface, 273GB/s bandwidth * Supports models up to 200B parameters locally, 405B parameters with dual-node clustering |
| Storage | 4TB NVMe M.2 SSD (self-encrypting) |
| Networking | * ConnectX-7 Smart NIC (200Gbps RDMA for clustering) * 10GbE RJ45 port * Wi-Fi 7 (802.11be) + Bluetooth 5.3 |

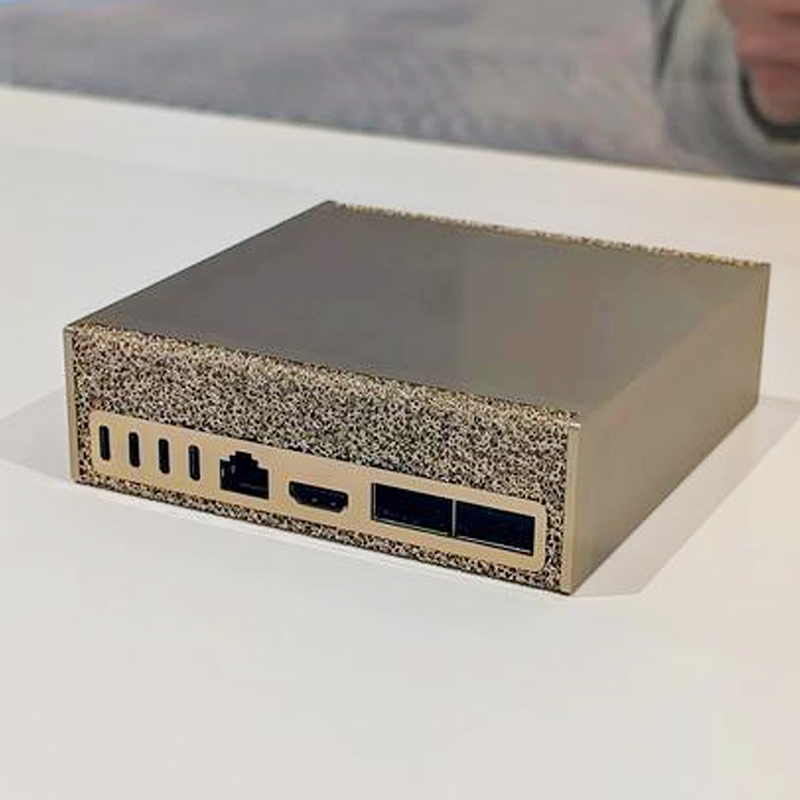

| Interfaces | * 4× USB4 Type-C (40Gbps) * 1× HDMI 2.1a (supports 8K video output) * Audio: HDMI multichannel audio |
| Power Consumption | * 170W typical operation * Up to 224W peak under heavy load |
| Cooling | Passive airflow design optimized for silent operation |
| Physical Specifications | * Dimensions: 150mm (L) × 150mm (W) × 50.5mm (H) * Weight: 1.2kg * Form Factor: FHFL dual-slot (rack-mountable with optional kit) |
| Operating System | DGX OS (Ubuntu 22.04-based) * Pre-installed AI Enterprise software stack * Supports frameworks: PyTorch, TensorFlow, RAPIDS |
| Model Capabilities | * Inference: Up to 200B parameters (e.g., LLaMA 2, DeepSeek-R1) * Fine-tuning: Up to 70B parameters * Distributed training: Scale to 405B parameters with dual DGX Spark nodes |
| Security | * Secure Boot and ECC memory protection * Confidential computing with ARM TrustZone |
| Development Tools | * AI Enterprise Suite (cuDNN, TensorRT, etc.) * NGC container registry access |
Security is integrated into every phase of the lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience.
Increase efficiency and accelerate operations with comprehensive management solutions. Simplify, automate and centralize management with professional consoles and controllers.
Designed to reduce carbon footprint and lower operation costs through innovative energy efficiency options and recycled materials in packaging.
Designed for 24x7 enterprise data center operations, it features enterprise-grade components and energy-efficient hardware optimized for deployment at scale.
Supports Secure Boot with Hardware Root of Trust technology, provides an extra layer of security, and meets NEBS Level 3 standards to meet new data center standards.
