Processors: Supports two Intel Xeon Scalable processors, typically 2x 2nd generation Intel® Xeon® processor scalable family, each with up to 24 cores and a TDP of up to 205W @ 35 ºC.
Memory: 24 DIMM slots, support 16GB/32GB/64GB DDR4 RDIMM, up to 1.5TB memory capacity.
Drive Slots: 10 2.5-inch hot-swappable storage bays, 6 of which can be flexibly configured with NVMe or SATA, 2 for SATA and 2 for NVMe.
Storage Controller: PERC H730P, etc., supports SATA and NVMe SSD, and the maximum storage capacity can reach 32TB.

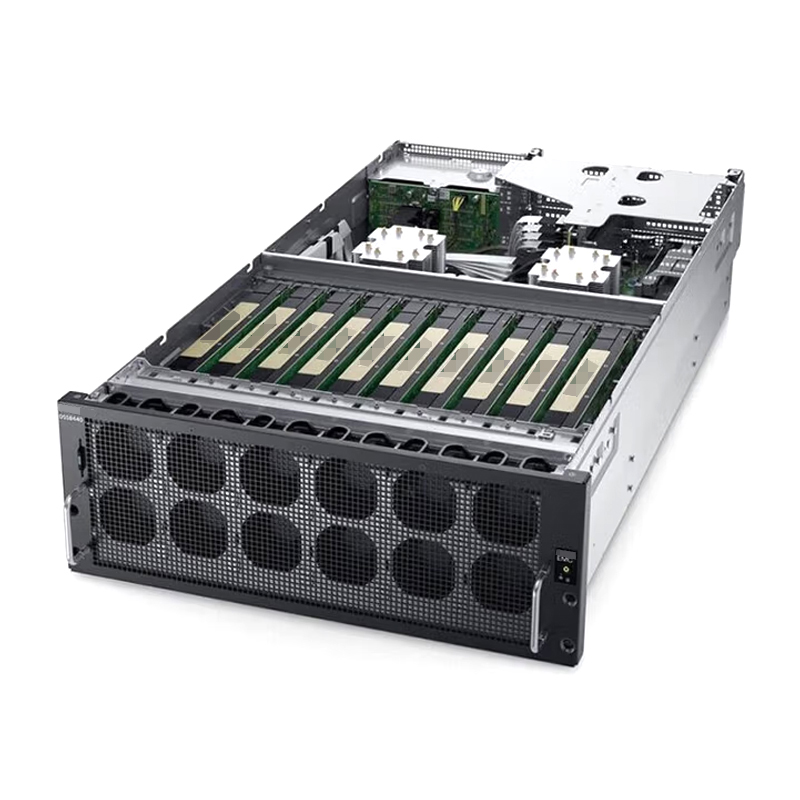

Accelerator Card: Supports up to 10 double-wide, full-length PCIe slots for GPU accelerators such as Tesla V100 16GB/32GB, Ampere A100, A40, and up to 8 Graphcore IPUs.
Networking: Typically equipped with network daughter cards such as Intel X550 dual-port 10Gbe Base-T and Intel X710 dual-port 10Gbe SFP to provide high-speed network connectivity.
Power Supply: (2 + 2) 2400W PSU redundant design, i.e. 4 power modules, each with 2400W power supply.
Cooling: Equipped with up to 12 square cooling fans of 60mm x 60mm.

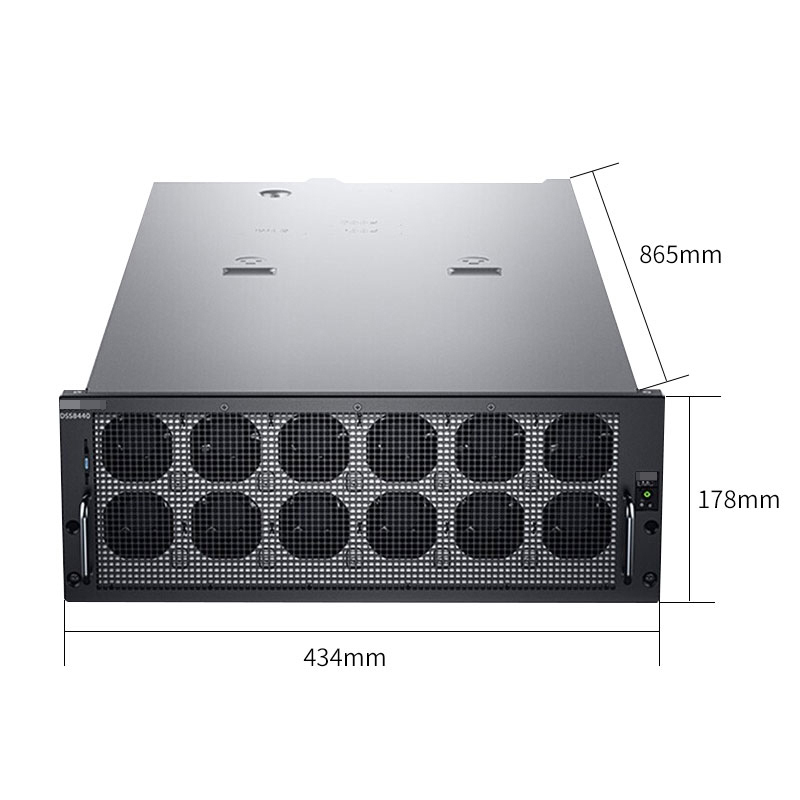

Dimensions & Weight: Height 178mm, width 434mm, depth 865mm. Weight: approx. 45kg (with 8 accelerators).
| Parameter Specifications | |
|---|---|
| Product Name | DSS 8440 |
| CPU | Support 2 CPUs (Xeon Bronze, Silver, Gold, Platinum) with better and more stable performance, up to 24 cores and 2 LGA3647 per processor |
| Memory | 24 DIMMs per node: 16GB/32GB, DDR4 RDIMM has a maximum capacity of 768GB |
| HDD | 10 bays: 6 fully flexible (NVMe or SATA), 2 SATA, 2 x NVMe (SATA and NVMe SSD supported) |
| RD | PERC H730P/H740P/H750P customizable based on support requirements |
| Power Supply | (2+2) 2400W redundant PSU |
| GPU Support | Up to 10 Tesla® V100 16GB and V100 32GB GPUs |
| PCIe Slots | 10 double-wide full-length PCIe slots with 4 PCIe switching hubs to meet the needs of enterprise expansion |
