PowerEdge R750XS

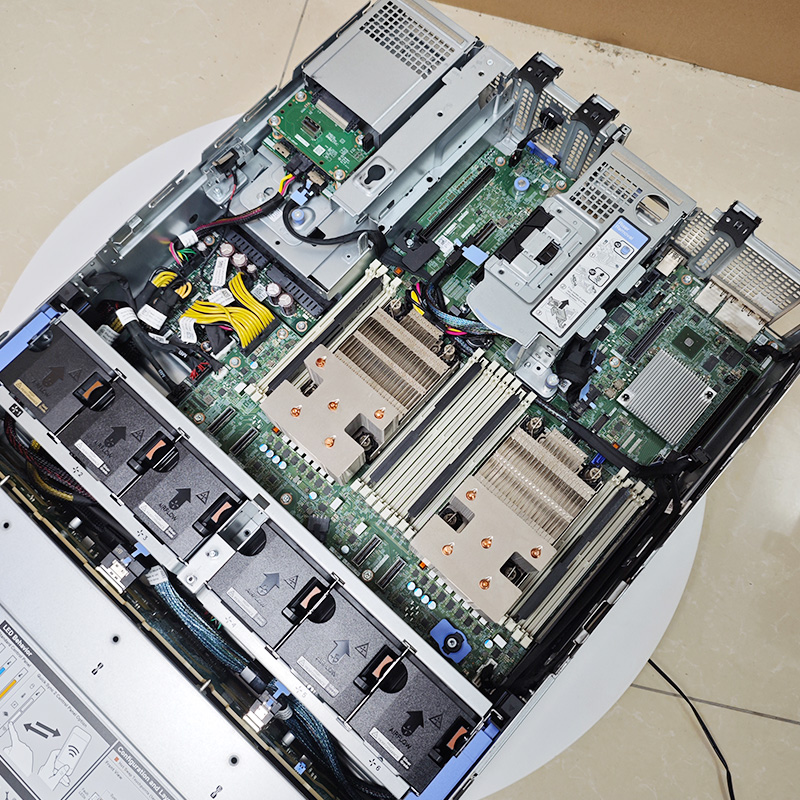

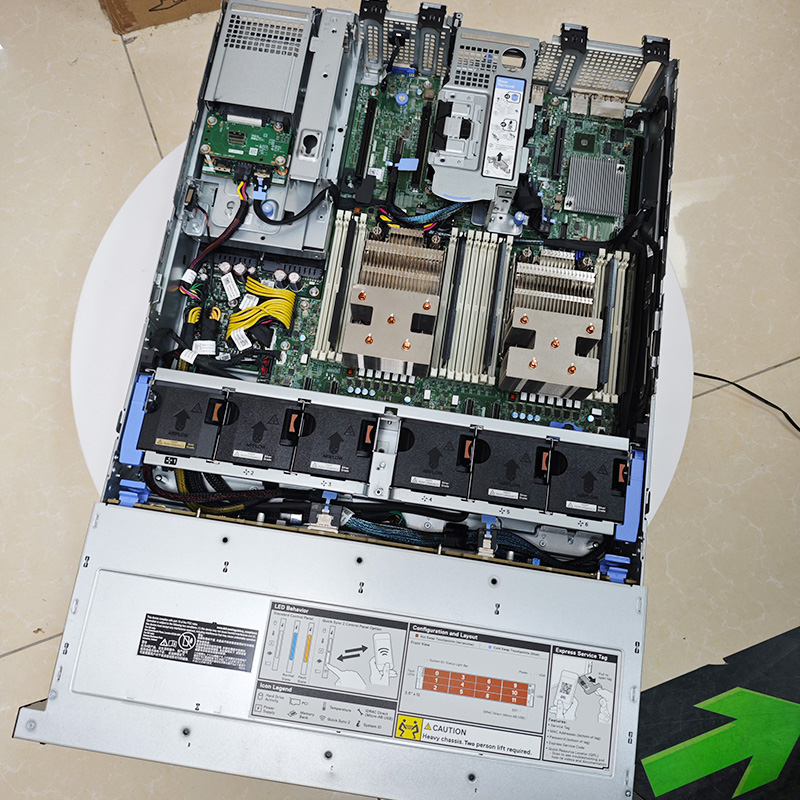

Overall Structure

• Dimensions: Height: 86.8mm (3.41 in) | Width: 482mm (18.97 in) | Depth: 707.78mm (27.85 in) without bezel; 721.62mm (28.4 in) with bezel.
• Form Factor: 2U rack-mounted design with a sleek, rectangular profile. Its compact structure allows easy installation in standard server racks, optimizing space in data centers for high-density deployments.

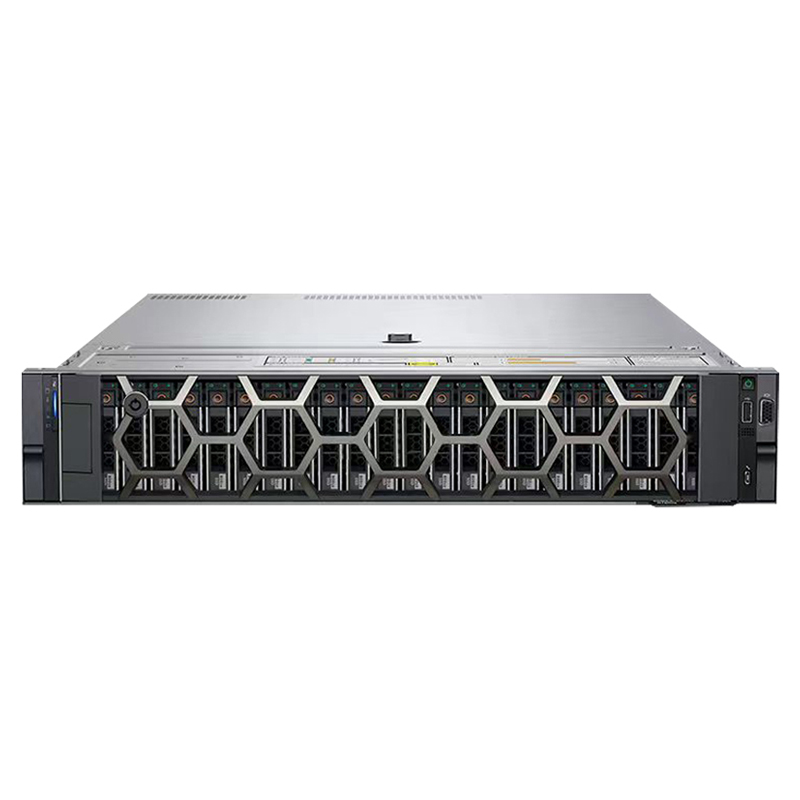

Front Panel

• Drive Bays: Supports multiple configurations, including up to 16×2.5" SAS/SATA drives and up to 8 small form factor (SFF) NVMe/SSD drive bays.
• Indicator Lights: Features up to five status LEDs and an overall system health LED bar, displaying chassis operation status, system ID, and other key metrics.
• Interfaces: 1 dedicated iDRAC Direct micro-USB port, 1 USB 2.0 port, and 1 VGA port for management, maintenance, and external device connectivity.

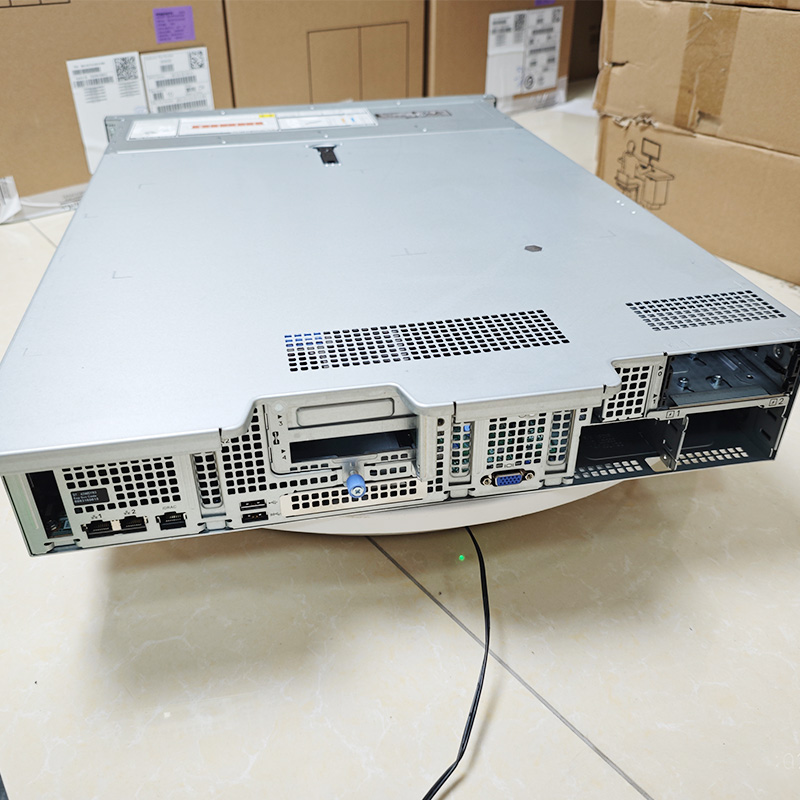

Rear Panel

• Ports: 1 USB 2.0 port, 1 USB 3.0 port, 1 optional serial port, 2 Ethernet ports, and 1 VGA port for data transmission and external device connections.
• Power Supply Modules: Hot-swappable power supplies with options including 600W, 800W, 1100W, and 1400W. Redundant configurations are supported.
• Cooling Fans: Multiple hot-swappable fans positioned at the top or other areas of the rear panel, providing efficient airflow to maintain optimal temperatures.

Side Panels & Design

• Vents: Extensive venting on the sides ensures unobstructed air circulation, assisting the cooling system in maintaining component temperatures for stable operation.
• Rail Mounts: Pre-installed slots for ReadyRails™ or compatible rails, enabling quick rack installation, sliding insertion, and maintenance.
• Design Highlights: The server’s minimalist exterior prioritizes functionality, with modular components designed for easy maintenance, balancing space efficiency and operational reliability.
