Dell PowerEdge R860 2U Rack Server Intel Xeon 4410Y*2 64G*3 20TSAS*2 3-Year Warranty Stable Reliable Enterprise Digital Stock

1 / 5

Dell PowerEdge R860 2U Rack Server Intel Xeon 4410Y2 64G3 20TSAS*2 3-Year Warranty Stable Reliable Enterprise Digital Stock

Send Inquiry

Product Description

PowerEdge R860 Overview

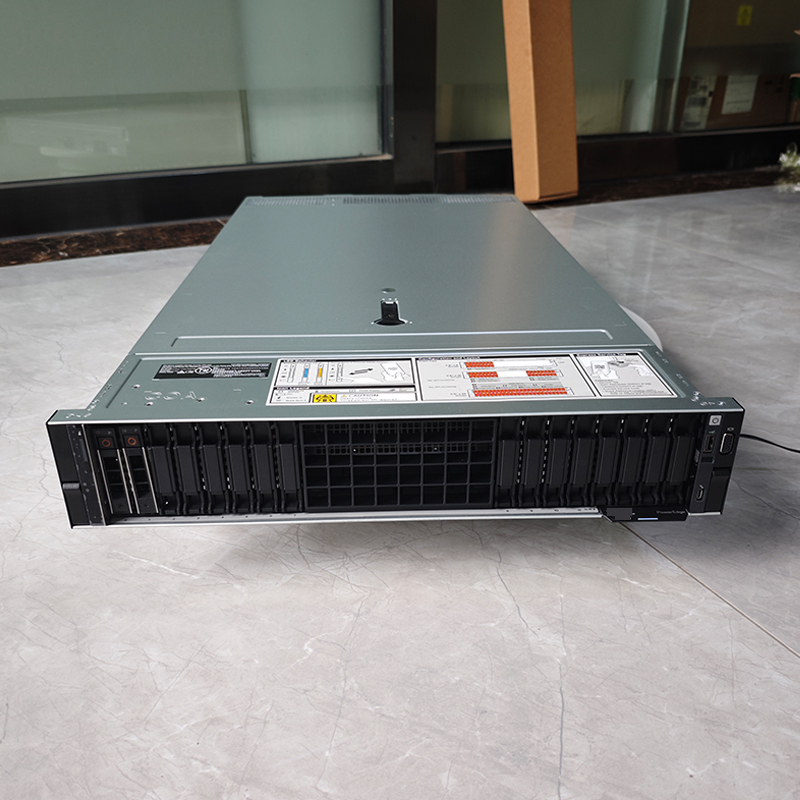

Design: Adopts a 2U air-cooled form factor. In terms of dimensions, the height is 86.8 mm (3.41 inches), the width is 482 mm (18.97 inches), and the depth is 883.2 mm (34.77 inches) (with bezel). This design not only facilitates installation and deployment in racks but also effectively dissipates heat through air cooling, ensuring stable operation of the server in high-density computing environments.

Key Features & Performance

Performance Features

High-Speed Communication: Supports PCIe Gen5 adapters, enabling fast 1:1 CPU-I/O communication, which greatly improves data transmission speed and system responsiveness, helping to enhance overall business processing efficiency.
Advanced Technology: Utilizes next-generation technologies such as DDR5 memory, PCIe Gen 5.0, and NVMe SSDs to better enable data transformation, support large in-memory databases, allowing users to gain insights faster and drive business growth. Meanwhile, with the new workload accelerators built into Intel Xeon processors, it delivers excellent performance in both traditional and emerging business applications.

Processor & Memory

Processor: Equipped with up to four 4th Generation Intel Xeon Scalable processors, each with a maximum of 60 cores. It also optionally supports Intel QuickAssist Technology, providing powerful computing support for various complex computing tasks, making it suitable for running applications with high computing requirements such as databases and analytics.
Memory: Comes with 64 DDR5 DIMM slots, supporting a maximum memory capacity of 16TB for RDIMM, with a memory speed of up to 4800MT/s. It can meet the high memory demands of in-memory databases and multiple applications, ensuring smooth system operation when processing large amounts of data and complex business.

Storage & Power

Storage: The storage configuration is very flexible, with various internal controller options including PERC H965i, PERC H755, PERC H355, HBA355i, etc. In terms of storage, it supports multiple combinations. For example, it can have up to 8 2.5-inch SAS/SATA (HDD/SSD) drives with a maximum capacity of 122.88TB; up to 8 EDSFF E3.S Gen5 NVMe (SSD) drives with a maximum capacity of 61.44TB, etc. The maximum supported storage capacity can reach 368.34TB.
Power Supply: Offers a variety of power supply options, including 1100W Titanium, 1400W Platinum, 1800W Titanium, 2400W Platinum, 2800W Titanium, etc. It supports 100-240VAC or 240HVDC voltage, and all are hot-swappable and redundant designs, ensuring the stability and reliability of the server's power supply.

Product Specifications

Product Parameters
Product name	PowerEdge R860
CPU	Support 2 CPUs (Xeon Bronze, Silver, Gold, Platinum) with better and more stable performance, up to 24 cores and 2 LGA3647 per processor
Memory	24 DIMMs per node: 16GB/32GB, DDR4 RDIMM has a maximum capacity of 768GB
HDD	10 bays 6 fully flexible (NVMe or SATA) 2 SATA, 2 x NVMe SATA and NVMe SSD
RD	PERC H730P/H740P/H750P can be matched according to customer service
Power supply	(2) 2400W redundant PSU
GPU support	Up to 10 Tesla® V100 16GB and V100 32GB GPUs
PCIE slots are supported	10 double-wide full-length PCIe slots With 4 PCIe switching hubs to meet the needs of enterprise expansion

Operations & Infrastructure

Frequently Asked Questions

What products can you buy from us?

You can buy Servers, Storage, Workstations, Memory, Hard Disks, laptops, and Desktops.

Do you offer product customization?

Yes, we have our own R&D team and can customize products as your requirements.

How is the product quality managed?

We ensure the highest standards with professional engineering support and strict QA and QC systems.

Are you looking for distributors?

Yes, we are actively looking for distributors and agents all over the world.

How are the items packaged?

Normally they are packed in standard cartons, but we can also pack them according to your specific requirements.

What is the estimated delivery time?

It depends on the quantity you need, but usually takes around 7 days. Our team communicates in English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, and Italian.
