Product Description

PowerEdge R960 Rack Server - Premium Customization

Accelerate compute-intensive, high-performance core workloads

The R960 boosts business-critical operations with unprecedented scale-up capabilities in a 4U air-cooled form factor with four (4) Intel Xeon Scalable Processors to empower business and drive data-driven initiatives.

Extreme Processing: Maximum CPU core count of 60 cores and support for 64 DDR5 DIMMs for a total of 16 TB of memory.
Scalability: Support for up to 24 NVMe drives, 12 PCIe Gen5 slots for I/O expansion.
Connectivity: LOM and industry standard OCP for flexible network connectivity.
Fast Communication: 1:1 CPU-I/O communications with PCIe Gen5 adaptor support.

🚀

Business-Critical Performance

Harness latest generation technologies to maximize data transformation, support large in-memory databases, and generate faster insights.

Install up to 4 GPU accelerators for AI-based business applications.
Workload accelerators built into Intel Xeon processors for peak performance.
Boost productivity with up to 4 VDI accelerators.

Technical Specifications

Feature	Description
Model	PowerEdge R960
Processor	Up to 4 x 4th Generation Intel Xeon Scalable processors (up to 60 cores per CPU)
Memory	64 DDR5 DIMM slots, Up to 16 TB RDIMM, Speed up to 4800 MT/s
Storage Bays	Front: Up to 24 x 2.5-inch NVMe (max 368.64 TB); Rear: Up to 2 x 2.5-inch SAS/SATA
Storage Controllers	Internal: PERC H965i, H755, H355; Boot: BOSS-N1 (HWRAID 2 x M.2 NVMe)
Power Supply	1100W/1400W/1800W/2400W/2800W Hot-swap redundant (Titanium/Platinum)
PCIe Slots	8 PCIe slots (Gen5 & Gen4 support)

🛡️

Zero Trust Architecture

Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) ensures trusted operations.

⚙️

Autonomous Operations

Simplify and centralize management with the OpenManage Enterprise console and iDRAC for efficient server oversight.

♻️

Sustainability

Designed with recycled materials and energy-efficient options to reduce carbon footprint and operation costs.

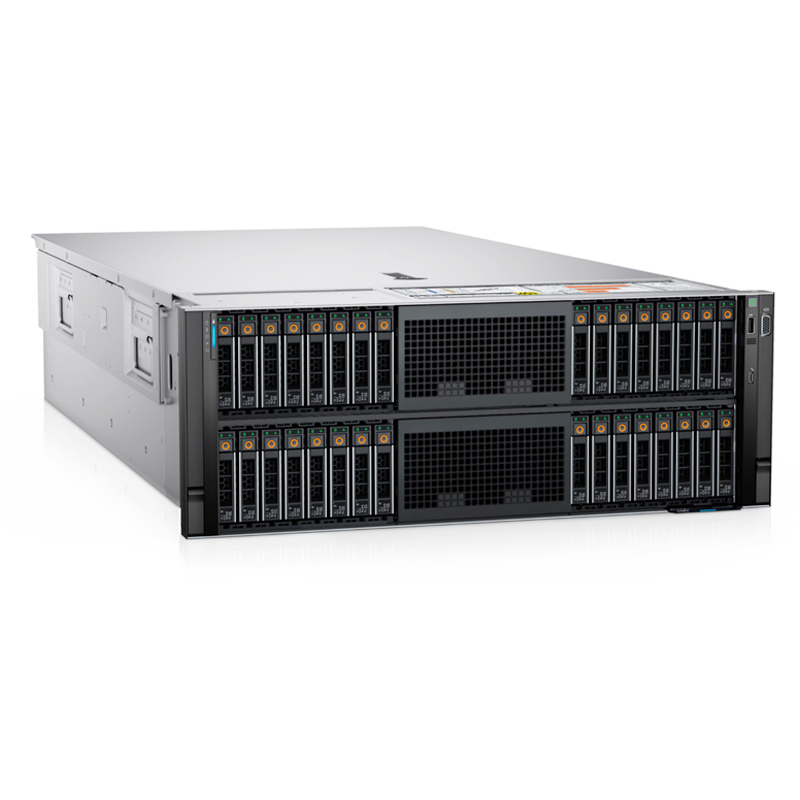

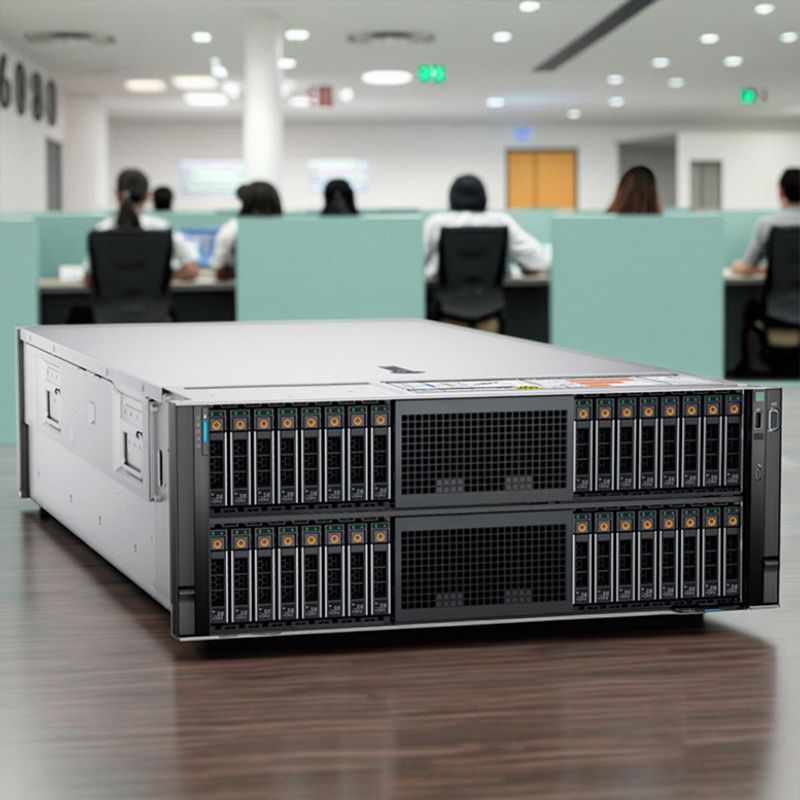

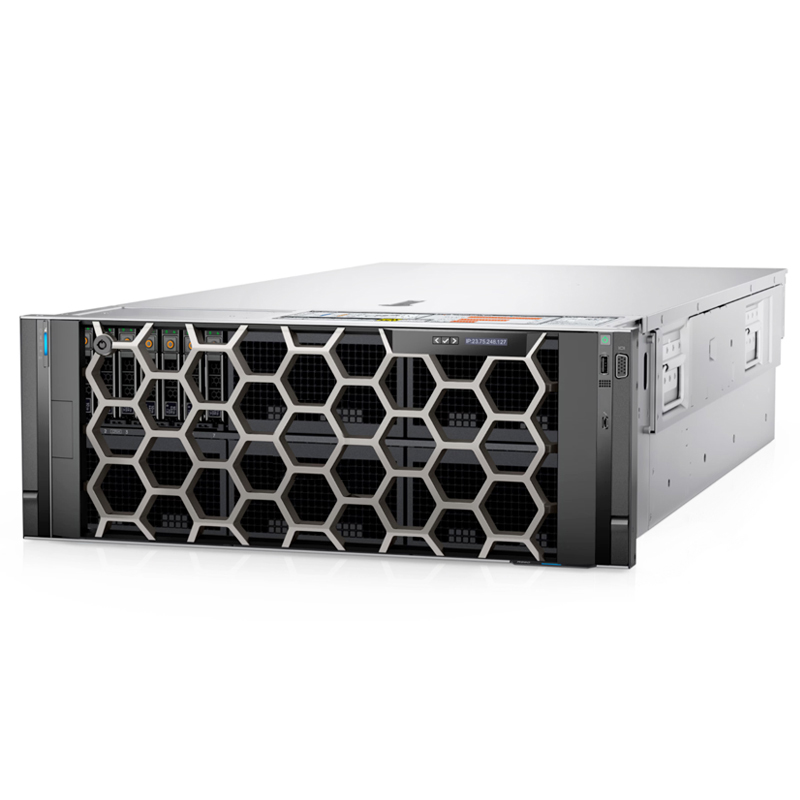

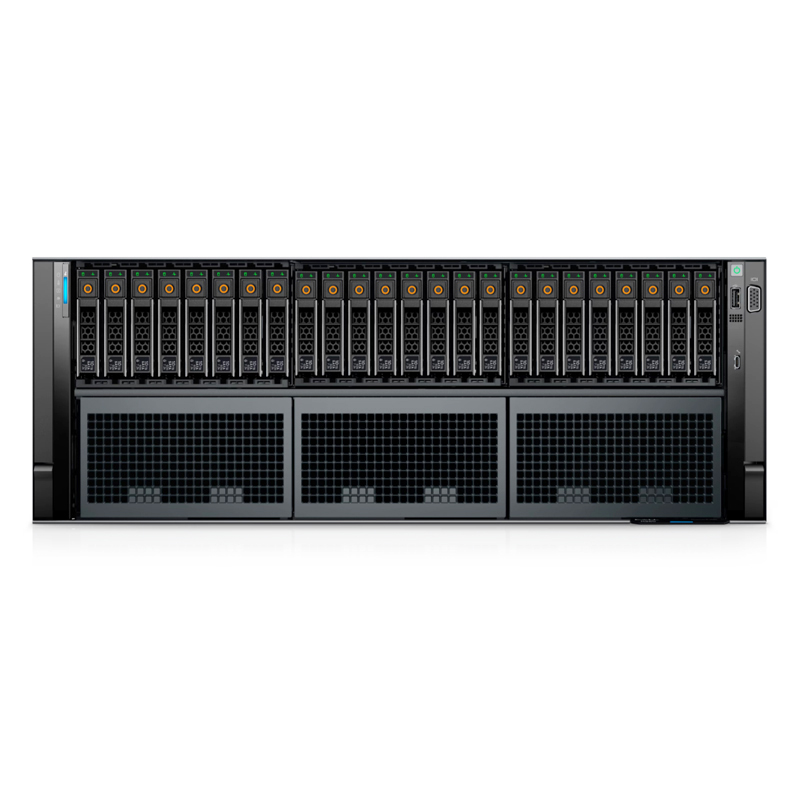

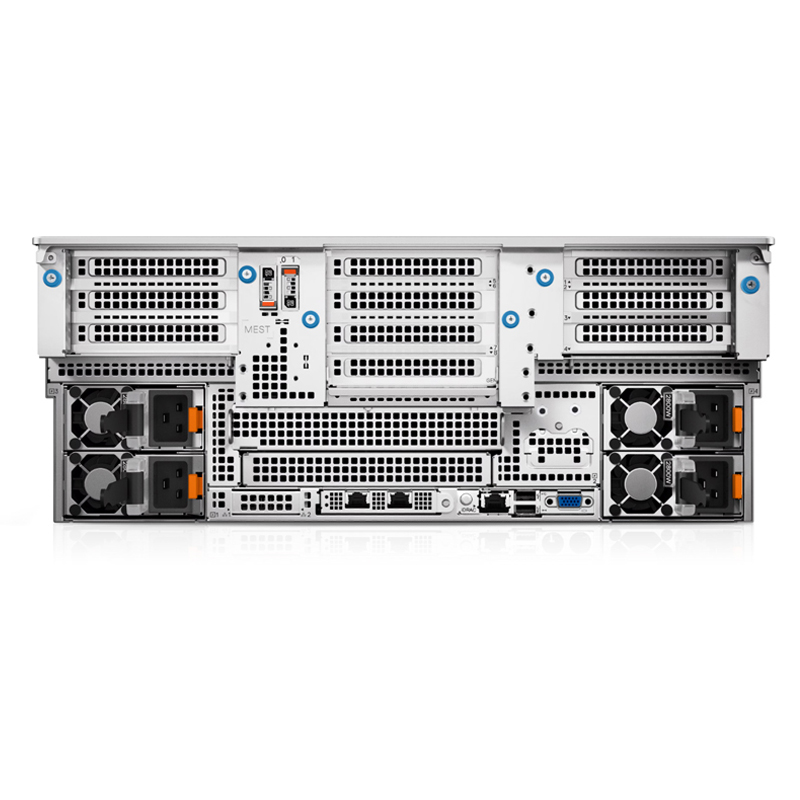

Internal & External Views

📦 Product Packaging

Frequently Asked Questions

Q1: What are the primary workloads for the PowerEdge R960?

A1: The R960 is optimized for large in-memory databases like SAP HANA, SQL, and Oracle, as well as data analytics, AI, and intensive virtualization/VDI environments.

Q2: How many processors and cores does the R960 support?

A2: It supports up to four 4th Generation Intel Xeon Scalable processors, with each processor offering up to 60 cores, enabling massive parallel processing power.

Q3: What is the maximum memory capacity available?

A3: The server features 64 DDR5 DIMM slots, allowing for a maximum of 16 TB of RAM to handle the most demanding data-driven initiatives.

Q4: Does the system support GPU acceleration for AI?

A4: Yes, the PowerEdge R960 can accommodate up to 4 GPU accelerators to boost AI-based business applications and real-time analytics.

Q5: What security features are built into this server?

A5: It utilizes a Cyber Resilient Architecture with a silicon-based root of trust, multi-factor authentication, and role-based access controls for a Zero Trust environment.

Q6: What are the storage expansion options?

A6: The R960 supports up to 24 NVMe drives for high-speed storage and includes 12 PCIe Gen5 slots for extensive I/O expansion.
