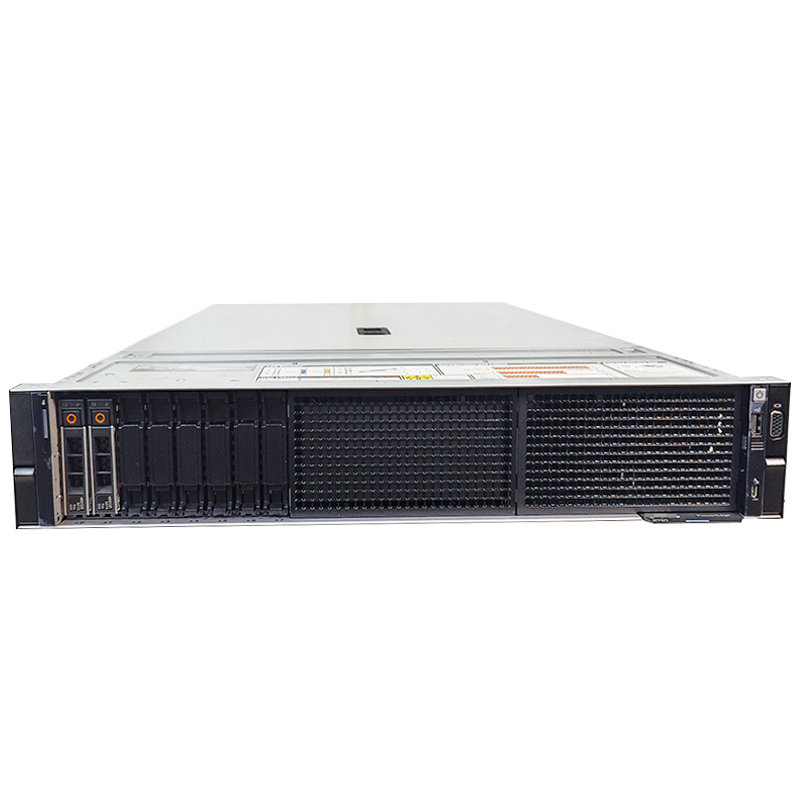

Appearance Design: It adopts a 2U rack-mounted design, with a height of 86.8 mm (3.41 inches), a width of 482 mm (18.97 inches), and a depth of 772.13 mm (30.39 inches) with a baffle, or 758.29 mm (29.85 inches) without a baffle. The maximum weight is 36.1 kg.
Supports 2 4th generation Intel® Xeon® Scalable Processors, with up to 56 cores configurable. Equipped with 32 DDR5 DIMM slots, supporting RDIMM memory. The memory speed can reach up to 4800MT/s, and the maximum capacity supported is 8TB.
Supports up to 12 3.5" SAS3/SATA drives; or up to 24 2.5" SAS4/SATA, 24 NVME U.2 4th Gen, or 16 NVME E3.S 5th Gen SSDs. Supports GPUs, including 2 dual-width or 6 single-width GPUs for acceleration workloads.
Intelligent flow chassis optimizes ventilation for high core count CPUs. Supports optional direct liquid cooling. Power options include dual redundant supplies ranging from 700W to 2800W Titanium/Platinum.
| Model | PowerEdge R760 |
| Processor | Supports up to two 4th or 5th Gen Xeon Scalable processors, Up to 32 cores per processor |
| RAM | 16 DDR5 RDIMM slots support 1.5 TB RDIMM with speeds up to 5200 MT/S |
| Drive Bays | Default 8 x 3.5-inch bays available; options for 12 x 3.5-inch or 16 x 2.5-inch chassis |
| RAID Controllers | S160 Software RAID; Optional PERC H355/H755/H755N, PERC H965i, HBA355i |
| Power Supply | Hot-swappable redundant power supplies: 600W / 800W / 1100W / 1400W / 1800W |
| Warranty | 3 Years |
