New Spot High-Performance AI Computing Server New NF5688G7 H20 141G GPU*8 DeepSeek-R1-671B NF5688-M7-A0-R0-00 High-end Server

Product Description

Inspur AI Server NF5688M7
Inspur AI Server NF5688M7 is a server for hyperscale data centers, based on a new generation of AI hyperconverged architecture platform. Below is its detailed introduction:
Appearance and size
Height: 6U rack server.
Dimensions: Width 447mm, height 263mm, depth 860mm.
Weight: Net weight 92kg, gross weight 107kg.
Compute performance
Processors: 2x Intel® 4th Gen/5th Gen Xeon® Scalable processors (TDP 350W) or 2x AMD 4th Gen EPYC processors (Max cTDP 400W).
GPU: 1 Tesla HGX - Hopper - 8GPU module with integrated Transformer engine to greatly accelerate GPT large model training.
Memory & Storage
Memory: Equipped with 32 DDR5 DIMMs memory at speeds up to 5600MT/s and up to 4TB of system memory.
Storage: Supports up to 24 2.5-inch SSD drives, including up to 16 NVMe, providing 128TB NVMe high-speed storage; Also includes 2 built-in M.2 NVMe/SATA (optional).
Networking & Scaling
PCIe slots: Supports 10 PCIe 5.0 x16 slots, with 1 PCIe 5.0 x16 slot replaceable with 2 x16 slots at PCIe 5.0 x8 rates. Optional support for Bluefield-3, CX7, and many types of SmartNICs.
OCP: Optional support for 1 OCP 3.0 network card, support NCSI function.
Network bandwidth: The system supports 4.0Tbps network bandwidth, high-speed interconnection and expansion between nodes, adopts 4.0Tbps non-blocking bandwidth IB/RoCE networking, cluster-level optimized architecture design, GPU: computing IB: storage IB =8:8:2.
I/O interface
Front: 1 USB 3.0 port, 1 USB 2.0 port, 1 VGA port.
Rear: 2 USB 3.0 ports, 1 MicroUSB port, 1 VGA port, 1 RJ45 management port.
Power & Cooling
Power supplies: 2 x 12V 3200W and 6 x 54V 2700W Titanium CRPS power supplies with N+N redundancy.
Cooling: Six redundant 54V N+1 hot-swappable fans in the GPU area and six redundant 12V N+1 hot-swappable fans in the CPU area. Layered heat dissipation; air duct decoupling improves energy efficiency ratio by 20%; 12V and 54V N+N redundant power supply separation design reduces conversion losses.

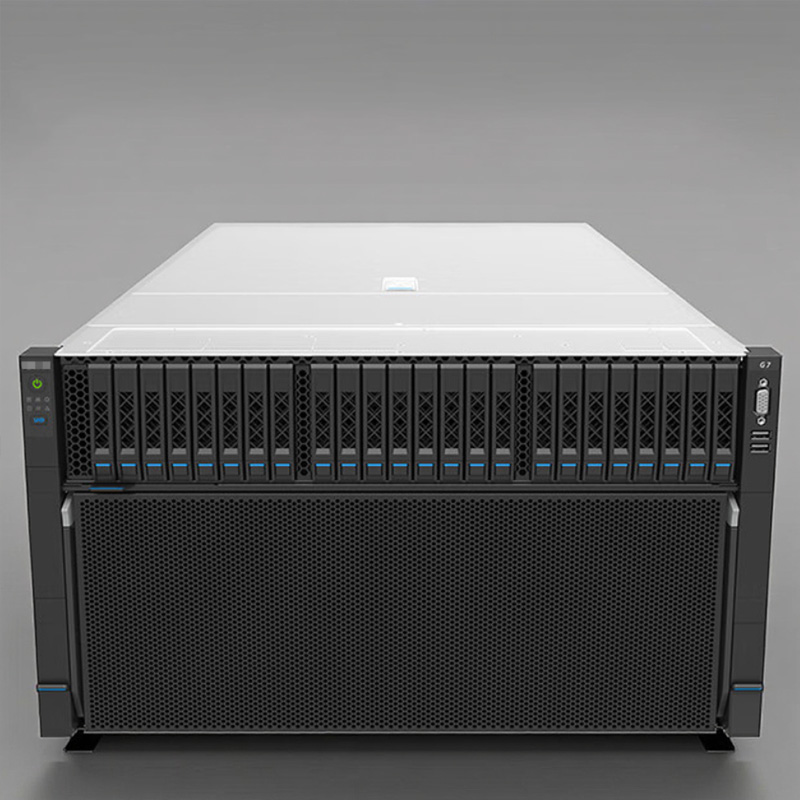

Inspur NF5688M7 Main View

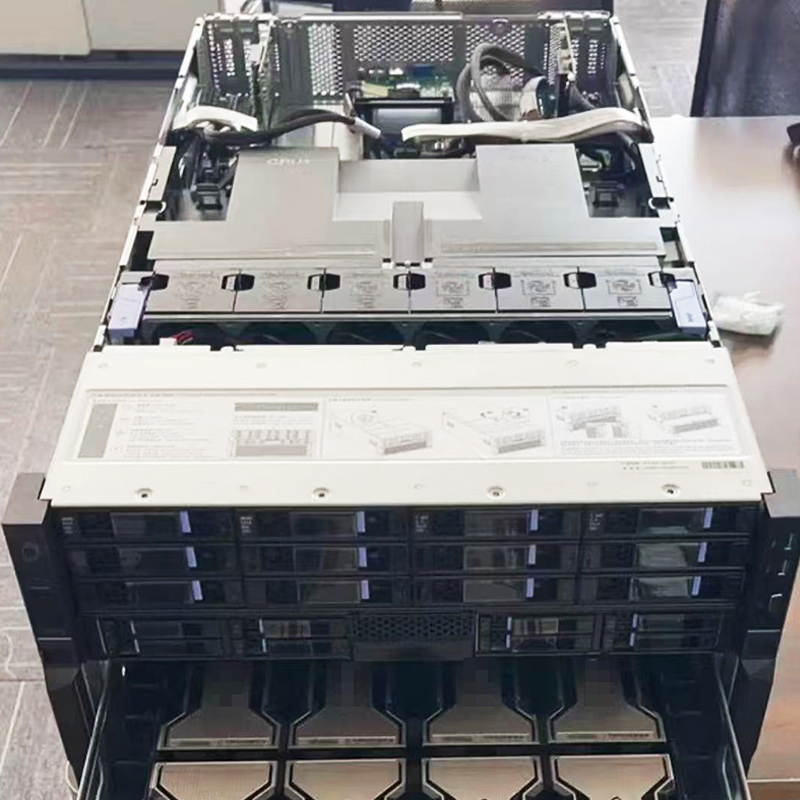

Cyber Resilient Architecture
NF5688M7
Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.

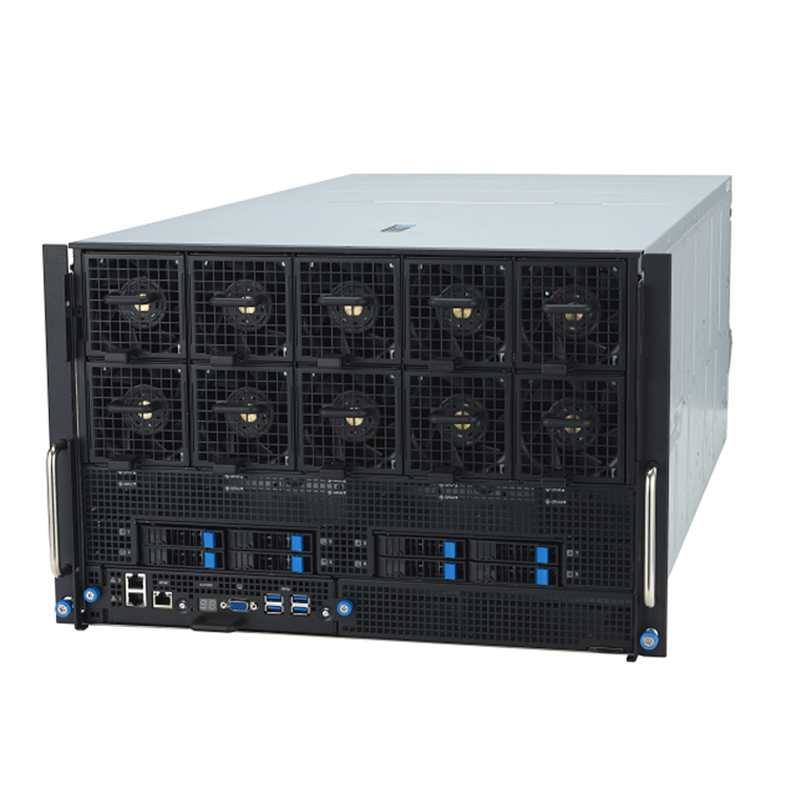

Increase efficiency
NF5688M7
Increase efficiency and accelerate operations with autonomous collaboration

The OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.

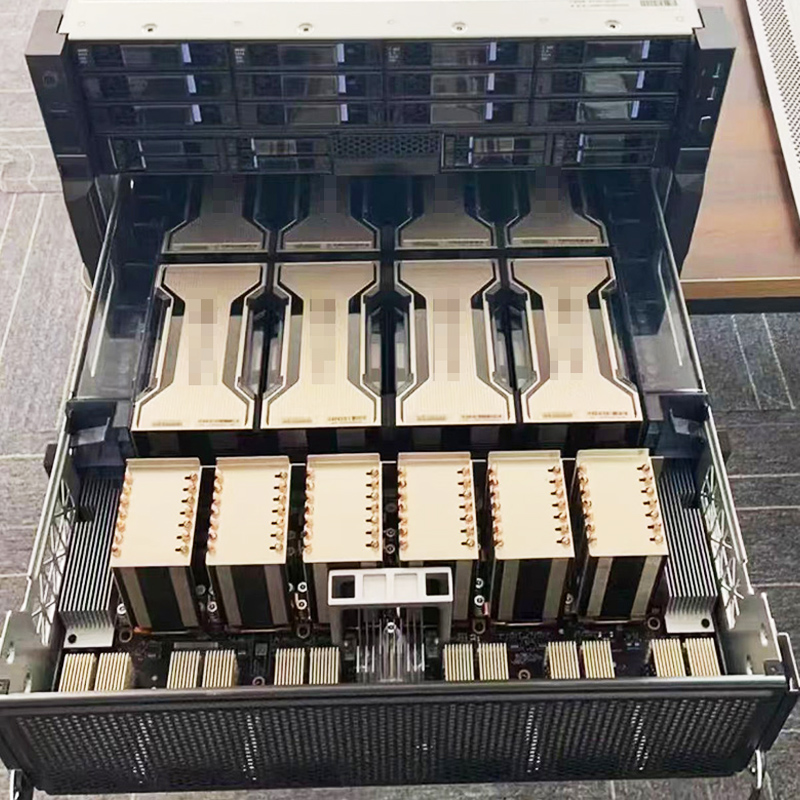

Sustainability
NF5688M7
Sustainability & Carbon Reduction

From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs.

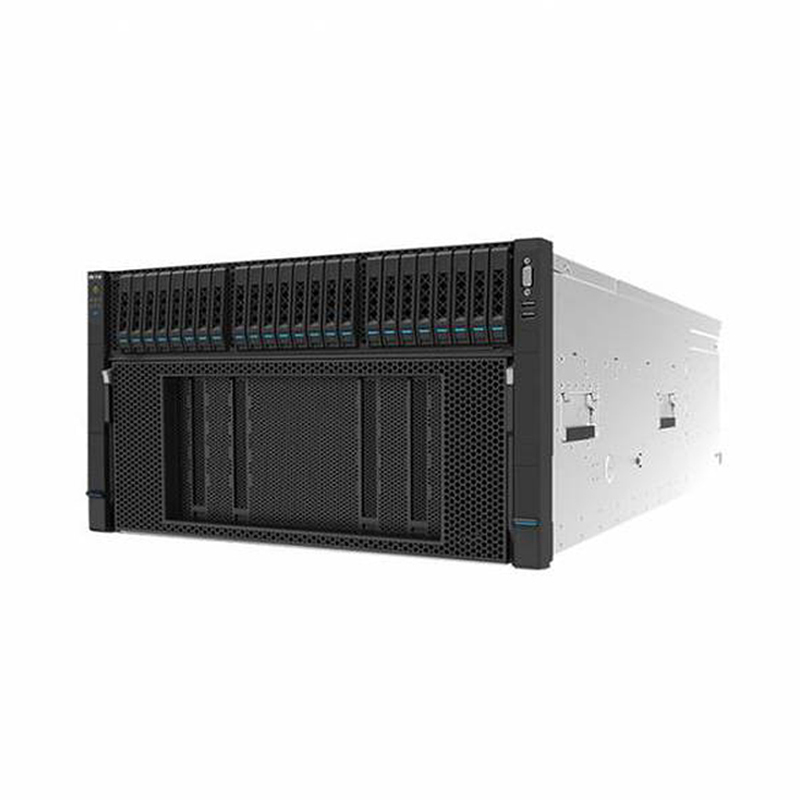

NF5688M7 Modular Design
NF5688M7 Modular Architecture

This server has a fully modular design, one machine is compatible with multiple cores, flexible configuration supports local and cloud deployment, supports large-scale GPT-3/LLaMA/ChatGLM model training and inference, and supports a variety of SuperPod solutions, suitable for AIGC, AI4Science, and metaverse and other rich scenarios.

Detail View 1
Detail View 2
Detail View 3
Structure Detail 1
Structure Detail 2
Structure Detail 3
Hardware Detail 1
Hardware Detail 2
Hardware Detail 3
Frequently Asked Questions
Q1: What products can I purchase from your standard product line?

We offer a wide range of hardware solutions, including High-Performance Servers, Enterprise Storage systems, Workstations, System Memory, Hard Disks, Laptops, and Desktop computers.

Q2: Do you have your own R&D team for product customization?

Yes, customized products can be developed and configured to match your specific corporate requirements and hardware standards.

Q3: How do you ensure the quality of the servers and components?

We maintain an experienced team of senior technical engineers, operating a strict Quality Assurance (QA) and Quality Control (QC) system to verify the reliability and performance of every product.

Q4: Are there opportunities for global partnership or distribution?

Yes, options for distributors, resellers, and agency partnerships are actively supported and sought after worldwide.

Q5: What packaging method is used for secure transit?

Normally, goods are packed in heavy-duty shipping cartons. Customized packaging options are also available based on specific logistic requirements.

Q6: What is the typical delivery timeframe and global communication support?

Delivery time typically takes around 7 days depending on the final order quantity. Support services are available in multiple languages including English, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, and Italian.
