Aiserver Manufacturer
1 / 5

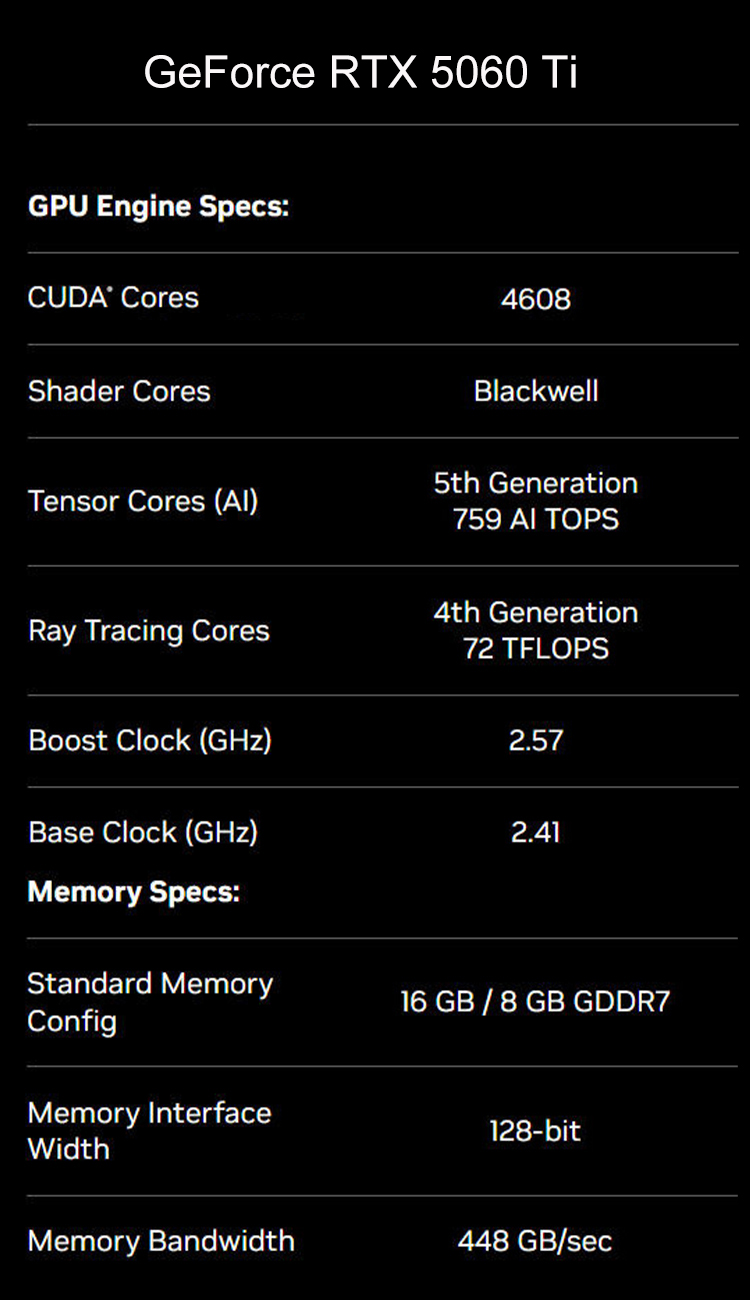

| Parameter | RTX 5060 Ti (8GB) | RTX 5060 Ti MAX (16GB) |
| GPU Model | GeForce RTX 5060 Ti | GeForce RTX 5060 Ti |
| Fabrication | TSMC 4N (5nm) | TSMC 4N (5nm) |
| CUDA Cores | 4608 | 4608 |
| Tensor Cores (5th Gen) | 144 (759 AI TOPS) | 144 (759 AI TOPS) |
| RT Cores (4th Gen) | 36 (72 TFLOPS) | 36 (72 TFLOPS) |
| Base Clock | 2407 MHz | 2407 MHz |
| Boost Clock | 2572 MHz (OC: 2602 MHz) | 2572 MHz (OC: 2602 MHz) |
| Memory | 8GB GDDR7 | 16GB GDDR7 |
| Memory Interface | 128-bit | 128-bit |
| Memory Speed | 28 Gbps | 28 Gbps |
| Memory Bandwidth | 448 GB/s | 448 GB/s |
| TDP | 180W (Peak 200W) | 180W (Peak 200W) |
| Power Connector | 1x 8-pin PCIe | 1x 8-pin PCIe |
| Recommended PSU | 550W+ | 550W+ |
| Bus Interface | PCIe 5.0 x8 | PCIe 5.0 x8 |
| Display Outputs | 3x DP 2.1b, 1x HDMI 2.1b | 3x DP 2.1b, 1x HDMI 2.1b |
| Max Resolution | 7680×4320 (8K) | 7680×4320 (8K) |
| Key Features | DLSS 4, Ray Tracing, Reflex, NVENC 9th Gen | DLSS 4, Ray Tracing, Reflex, NVENC 9th Gen |
| Form Factor | 2-slot / 2.5-slot (varies by model) | 2-slot / 2.5-slot (varies by model) |
| Dimensions (Metal Master) | 304×123×44.5mm (w/o bracket) | 304×123×44.5mm (w/o bracket) |
| Dimensions (Blade MAX) | - | 304×125×40mm (w/o bracket) |
