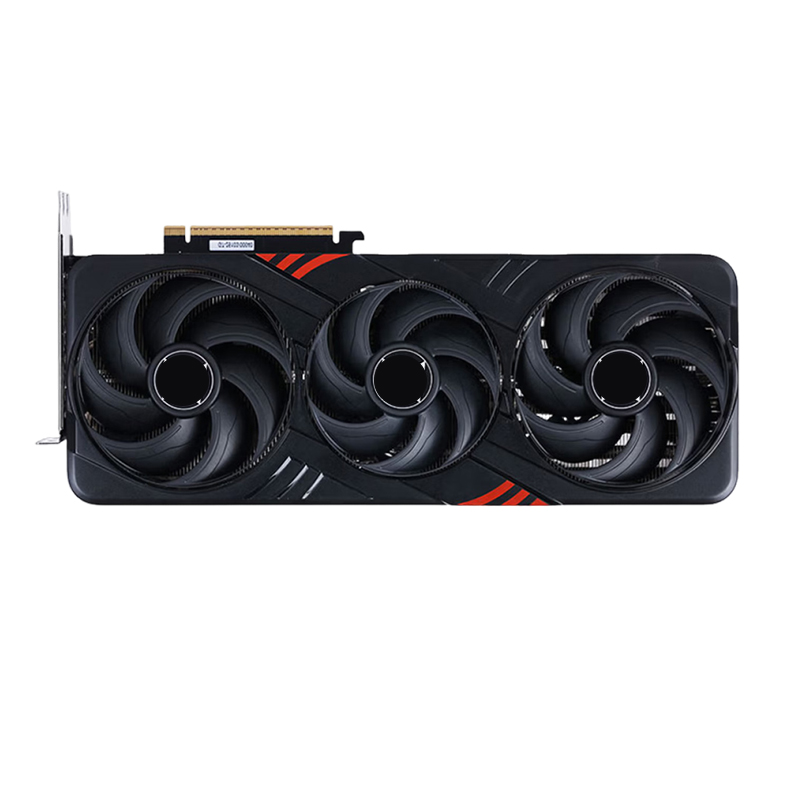

NVIDIA RTX 5090 D V2 24GB GDDR7 Gaming Graphics Card High Speed GPU for Desktop Gaming AI

1 / 5

NVIDIA RTX 5090 D V2 24GB GDDR7 Gaming Graphics Card High Speed GPU for Desktop Gaming AI

Send Inquiry

Product Description

RTX 5090 D v2 Turbo

Core Specifications

GPU architecture: NVIDIA Blackwell architecture, 21,760 CUDA cores, supports PCIe 5.0 x16.
Graphics memory configuration: 24GB of GDDR7 memory, 384-bit width, bandwidth of 1344GB/s, memory speed of 28Gbps.
Frequency performance: Core frequency 2017 MHz, boost frequency 2452 MHz, TDP power consumption 575 W.
Output interface: 3 x DP 2.1b + 2 x HDMI 2.1b, supporting 8K@60Hz output.

Performance Performance

Gaming Performance: At 4K resolution, with DLSS 4 enabled, the frame rate is on average 138% higher than that of RTX 4090 D. For some games, the frame rate can exceed 300 fps.
Ray tracing performance: In the ray tracing performance test, it outperformed the RTX 4090 D by an average of 45%, with the gap to the RTX 5090 D being only 2% - 5%.
Professional Applications: Supports 8K video editing, complex 3D modeling and AI local deployment, suitable for content creators.

Heat Dissipation Design

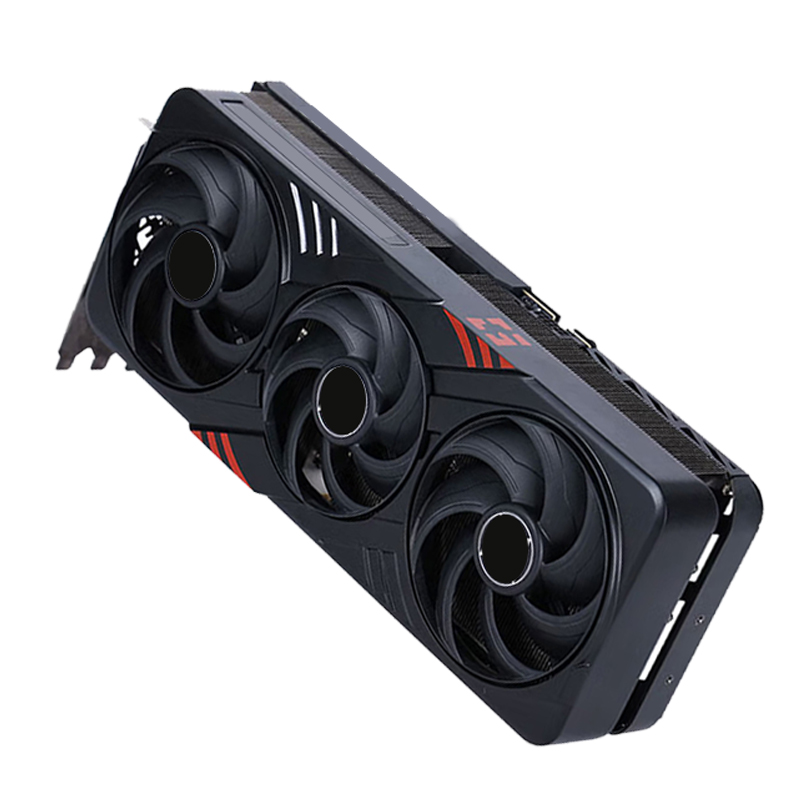

Three-fan cooling: Equipped with 2 102mm + 1 92mm third-generation "Blade of Storm" fans. The circular fan blades design enhances the air volume and pressure.
Heat pipe matrix: The internal structure features a 9-heat pipe matrix combined with a VC vacuum chamber heat sink plate, ensuring that the temperature remains within the ideal range under high load conditions.
Silence performance: User feedback indicates "The temperature is normal and the noise is very low", and it operates stably for a long period of time.

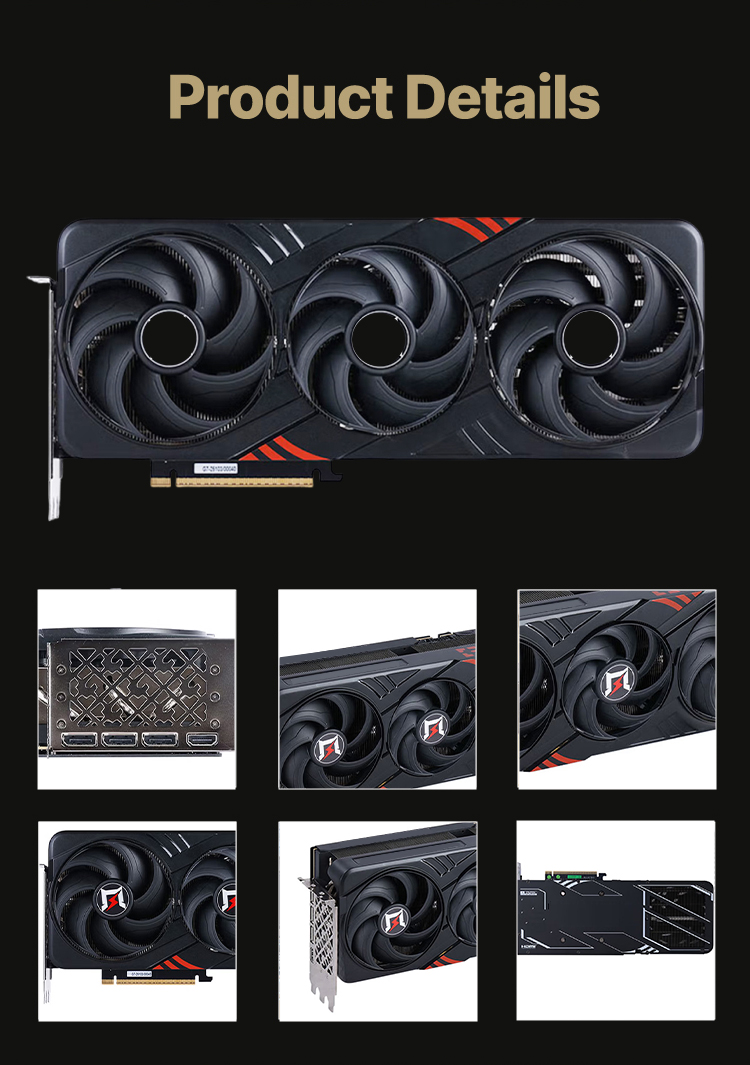

Appearance Features

Design style: Dark black metal air intake hood, sharp geometric lines, full of a sense of power and technological aesthetics.
RGB lighting effect: Supports RGB color-changing logo lighting effect, which can be adjusted through software to create a personalized gaming atmosphere.

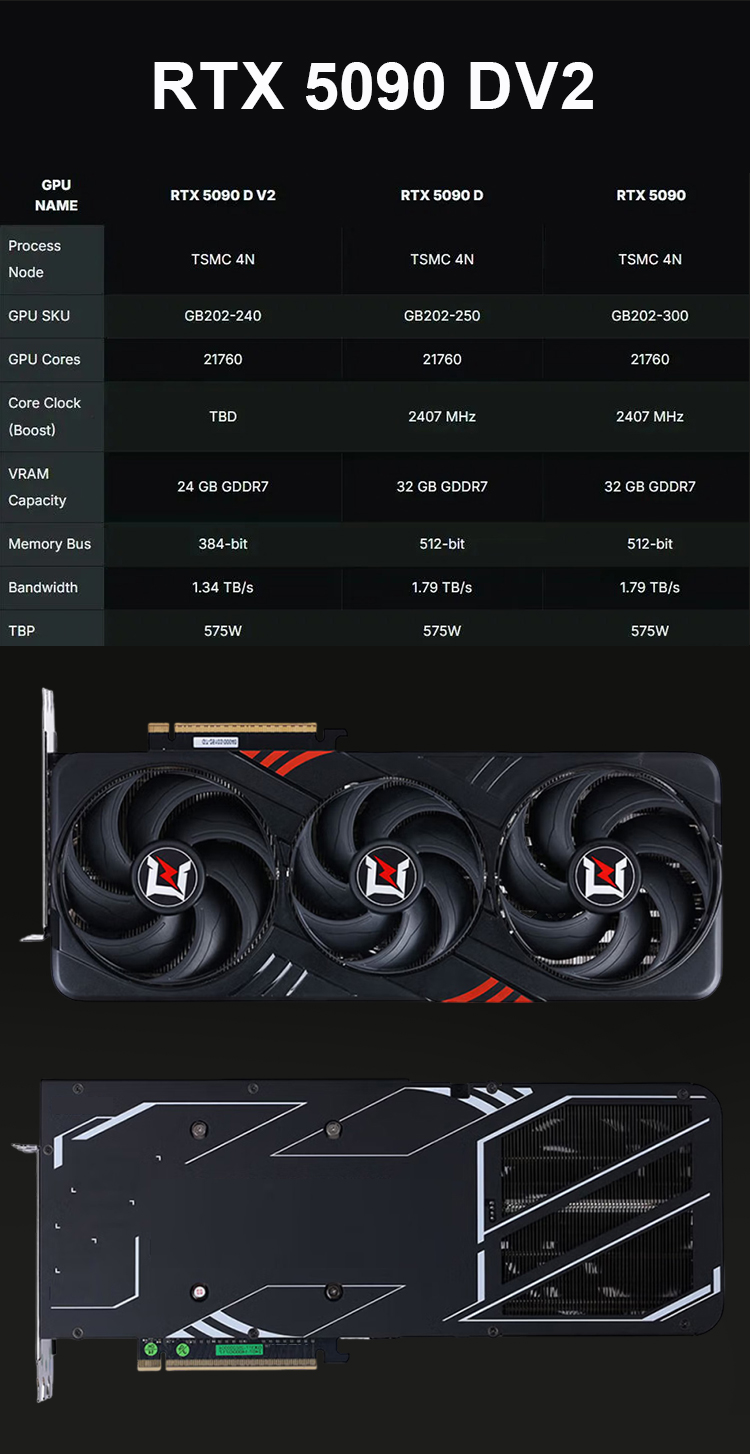

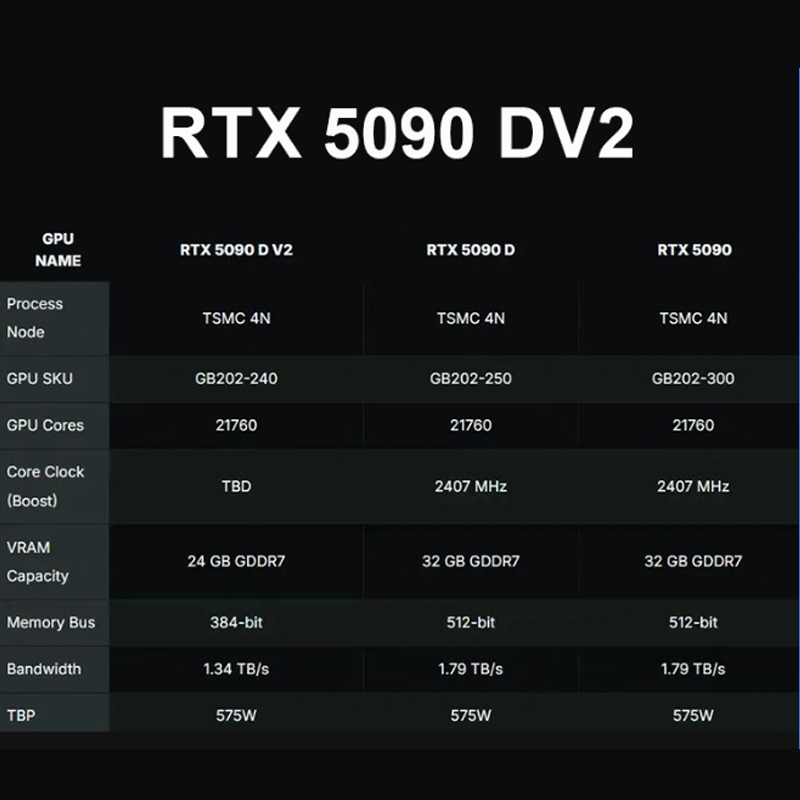

Item	Specification
GPU Model	GeForce RTX 5090 D v2 (GB202-240)
Architecture	Blackwell (TSMC 4N)
CUDA Cores	21760
RT Cores	170 (4th Gen)
Tensor Cores	680 (5th Gen)
Base Clock	2017 MHz
Boost Clock	2452 MHz
L2 Cache	96 MB
Video Memory	24 GB
Memory Type	GDDR7
Memory Bus	384-bit
Memory Clock	28000 MHz (Effective)
Memory Bandwidth	1344 GB/s
TDP	575 W
Power Connector	16-pin (12VHPWR)
Bus Interface	PCIe 5.0 x16
Output Ports	3×DP 2.1b, 2×HDMI 2.1b
Max Resolution	8K@60Hz
Cooling	Triple Fan
Warranty	3 Years

RTX 5090 D v2 Turbo Specifications Summary

Frequently Asked Questions

Q1: What are the key architecture and core specifications of the RTX 5090 D v2 Turbo?

A1: It is built on the advanced NVIDIA Blackwell architecture (TSMC 4N) featuring 21,760 CUDA cores, 170 4th Gen RT Cores, and 680 5th Gen Tensor Cores. It includes 24GB of GDDR7 memory with a 384-bit memory bus, 1344 GB/s memory bandwidth, and supports PCIe 5.0 x16.

Q2: How does the performance of the RTX 5090 D v2 Turbo compare to the RTX 4090 D?

A2: In 4K gaming tests with DLSS 4 enabled, the RTX 5090 D v2 Turbo averages 138% higher frame rates than the RTX 4090 D. Its ray tracing performance outperforms the RTX 4090 D by an average of 45%, and it stays within a 2% to 5% performance gap compared to the standard RTX 5090 D.

Q3: What cooling design is integrated into this high-performance graphics card?

A3: The graphics card utilizes a triple-fan cooling system featuring two 102mm and one 92mm third-generation "Blade of Storm" fans. Internally, a 9-heat pipe matrix combined with a VC vacuum chamber heat sink plate guarantees stable thermal management under heavy loading.

Q4: How do you guarantee the quality and engineering of the products?

A4: Every product is backed by a professional engineering team and a strict QA and QC system to ensure high performance and stability during operation.

Q5: What standard packaging is used for shipment?

A5: The products are normally packed in strong, protective cartons. Customized packaging options are also available to meet specific cargo or shipping requirements.

Q6: What is the typical delivery timeframe for an order?

A6: The delivery timeline depends on the ordered quantity. In general, standard orders are fulfilled and ready within 7 days.
