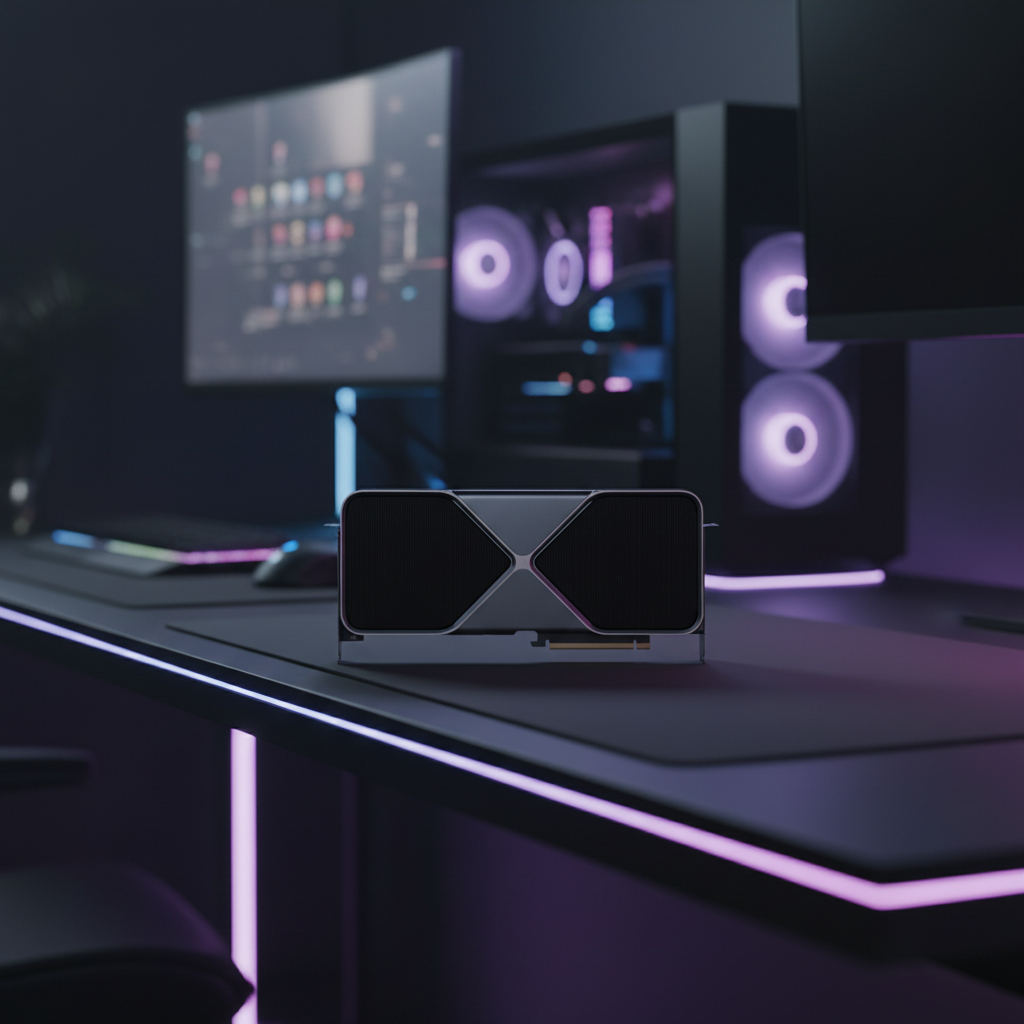

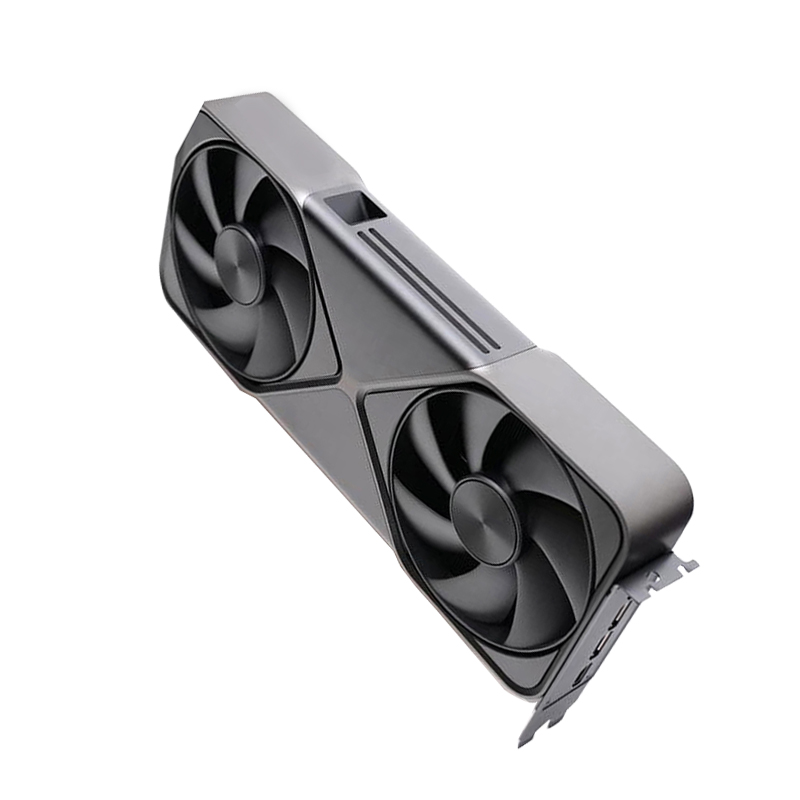

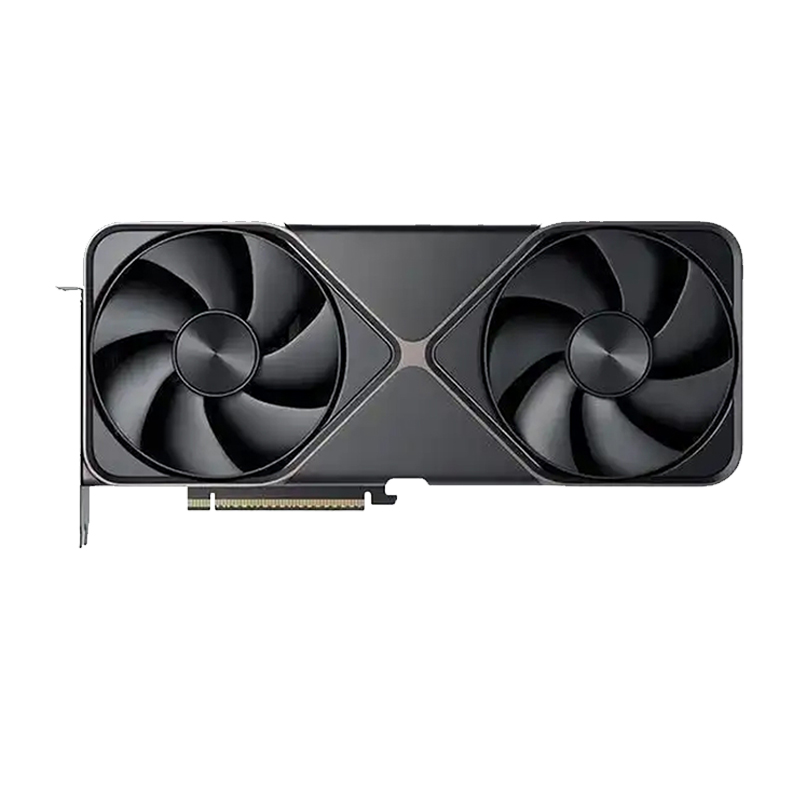

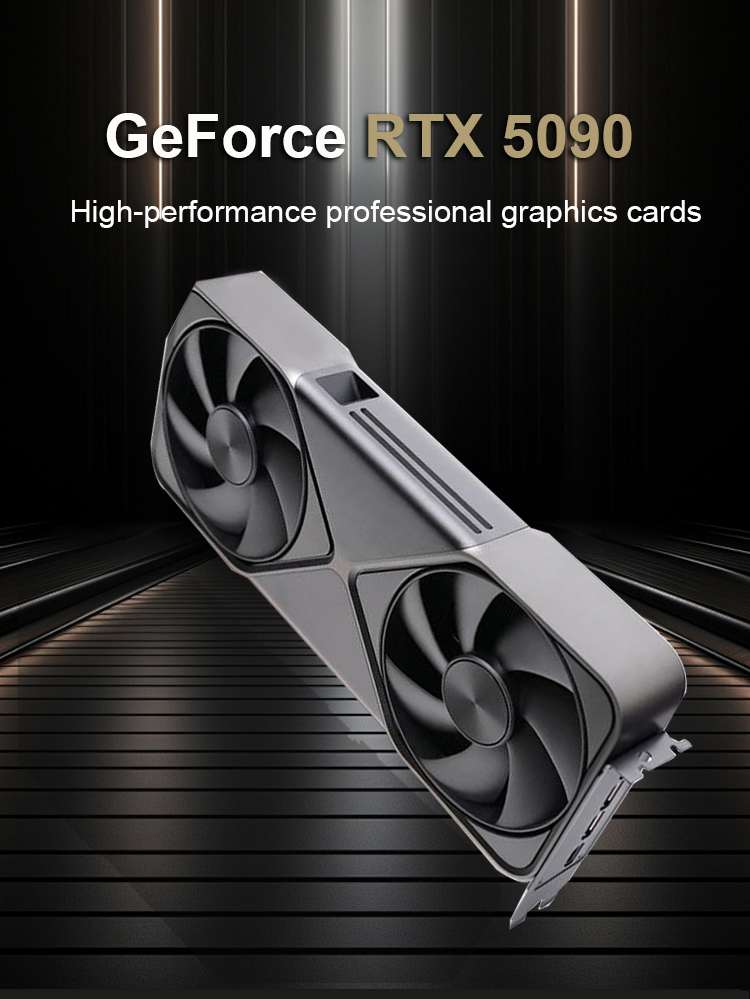

RTX 5090 Founders Edition is the flagship gaming and creative GPU powered by the architecture. Built with premium craftsmanship and a compact 2-slot design, it delivers extreme performance for 4K/8K gaming, AI computing, 3D rendering, and video production. It features 21760 CUDA cores, a massive 32GB GDDR7 high-speed memory with 512-bit bus and 1792GB/s bandwidth, enabling smooth handling of heavy workloads and ultra-high-resolution scenarios. The latest DLSS 4 greatly boosts frame rates, while 4th-gen Ray Tracing Cores and 5th-gen Tensor Cores bring immersive visuals and powerful AI acceleration. Equipped with NVIDIA’s Double Flow Through cooling system, the Founders Edition maintains low temperatures and quiet operation even under full load. It comes with 3×DisplayPort 2.1b and 1×HDMI 2.1b outputs, supporting 8K@165Hz and multi-monitor setups. Designed for enthusiasts, professionals, and enterprise users, the RTX 5090 FE combines top-tier performance, stability, and premium build quality—perfect for high-end desktops, workstations, and AI development.
| Category | Specification |
|---|---|
| GPU Engine |
GeForce RTX 5090 GPU Model: GB202-300 CUDA Cores: 21760 Base Clock: 2017 MHz Boost Clock: 2410 MHz FP32 Performance: 104.8 TFLOPS Ray Tracing Cores: 4th Generation, 318 RT-TFLOPS Tensor Cores: 5th Generation, 3352 AI TOPS |
| Memory |
Memory Size: 32 GB Memory Type: GDDR7 Memory Interface: 512-bit Memory Speed: 28 Gbps Memory Bandwidth: 1792 GB/s |
| Display |
Maximum Resolution: 8K@165Hz or 4K@480Hz with DSC Display Connectors: 3x DisplayPort 2.1b, 1x HDMI 2.1b Multi-Monitor Support: Up to 4 displays HDCP Support: 2.3 |
| Power & Interface |
Bus Interface: PCIe 5.0 x16 Power Connector: 1x 16-pin (12VHPWR) TDP: 575W Recommended PSU: 1000W |
| Dimensions |
Length: 304 mm Width: 137 mm Height: 40 mm Slot Width: 2-Slot |
| Software & Features |
DirectX: 12 Ultimate OpenGL: 4.6 Vulkan: 1.4 CUDA: 12.0 DLSS: DLSS 4, Frame Generation Ray Tracing: Yes NVENC: 3x 9th Generation NVDEC: 2x 6th Generation |
