NVIDIA RTX 5090D V2 21760 CUDA Cores Desktop Gaming GPU with 384bit High Bandwidth Memory

Product Description

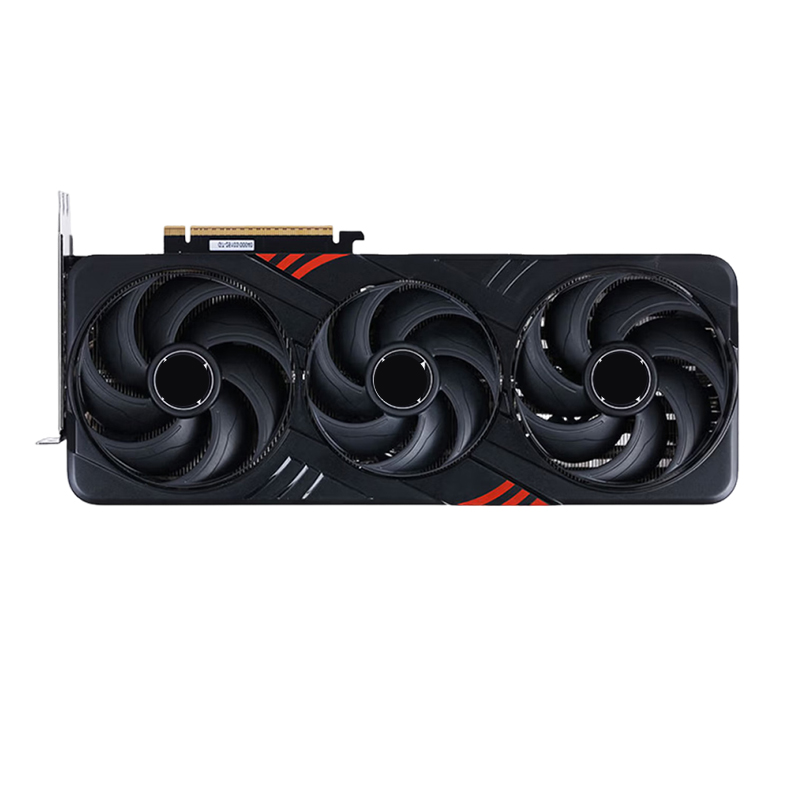

RTX 5090 D v2 Turbo Overview
RTX 5090 D v2 Turbo Close-up
RTX 5090 D v2 Turbo Architecture

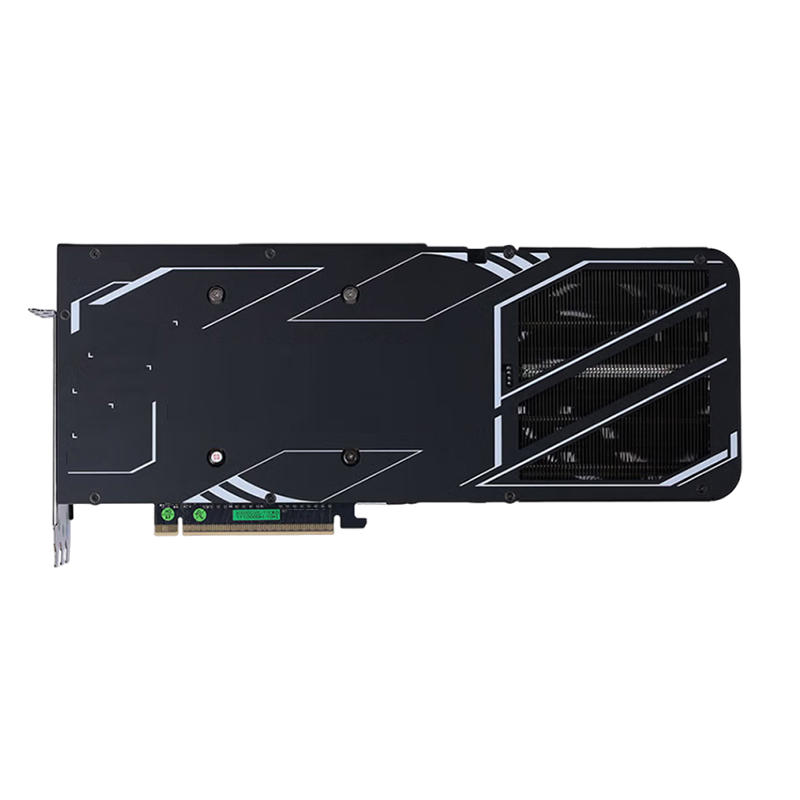

RTX 5090 D v2 Turbo Backplate
RTX 5090 D v2 Turbo Details
RTX 5090 D v2 Turbo Ports
RTX 5090 D v2 Turbo Cooling

RTX 5090 D v2 Turbo Features

Core Specifications

  • GPU architecture: NVIDIA Blackwell architecture, 21,760 CUDA cores, supports PCIe 5.0 x16.
  • Graphics memory configuration: 24GB of GDDR7 memory, 384-bit width, bandwidth of 1344GB/s, memory speed of 28Gbps.
  • Frequency performance: Core frequency 2017 MHz, boost frequency 2452 MHz, TDP power consumption 575 W.
  • Output interface: 3 x DP 2.1b + 2 x HDMI 2.1b, supporting 8K@60Hz output.

Performance & Benchmark

  • Gaming Performance: At 4K resolution, with DLSS 4 enabled, the frame rate is on average 138% higher than that of RTX 4090 D. For some games, the frame rate can exceed 300 fps.
  • Ray tracing performance: In the ray tracing test, it outperformed the RTX 4090 D by an average of 45%, with the gap to the RTX 5090 D being only 2% - 5%.
  • Professional Applications: Supports 8K video editing, complex 3D modeling and AI local deployment, suitable for content creators.

Heat Dissipation Design

  • Three-fan cooling: Equipped with 2 102mm + 1 92mm third-generation "Blade of Storm" fans. The circular fan blades design enhances the air volume and pressure.
  • Heat pipe matrix: The internal structure features a 9-heat pipe matrix combined with a VC vacuum chamber heat sink plate, ensuring ideal temperature ranges.
  • Silence performance: User feedback indicates "The temperature is normal and the noise is very low", operating stably for long periods.

Appearance Features

  • Design style: Dark black metal air intake hood, sharp geometric lines, full of a sense of power and technological aesthetics.
  • RGB lighting effect: Supports RGB color-changing logo lighting effect, adjustable via software to create personalized gaming atmospheres.

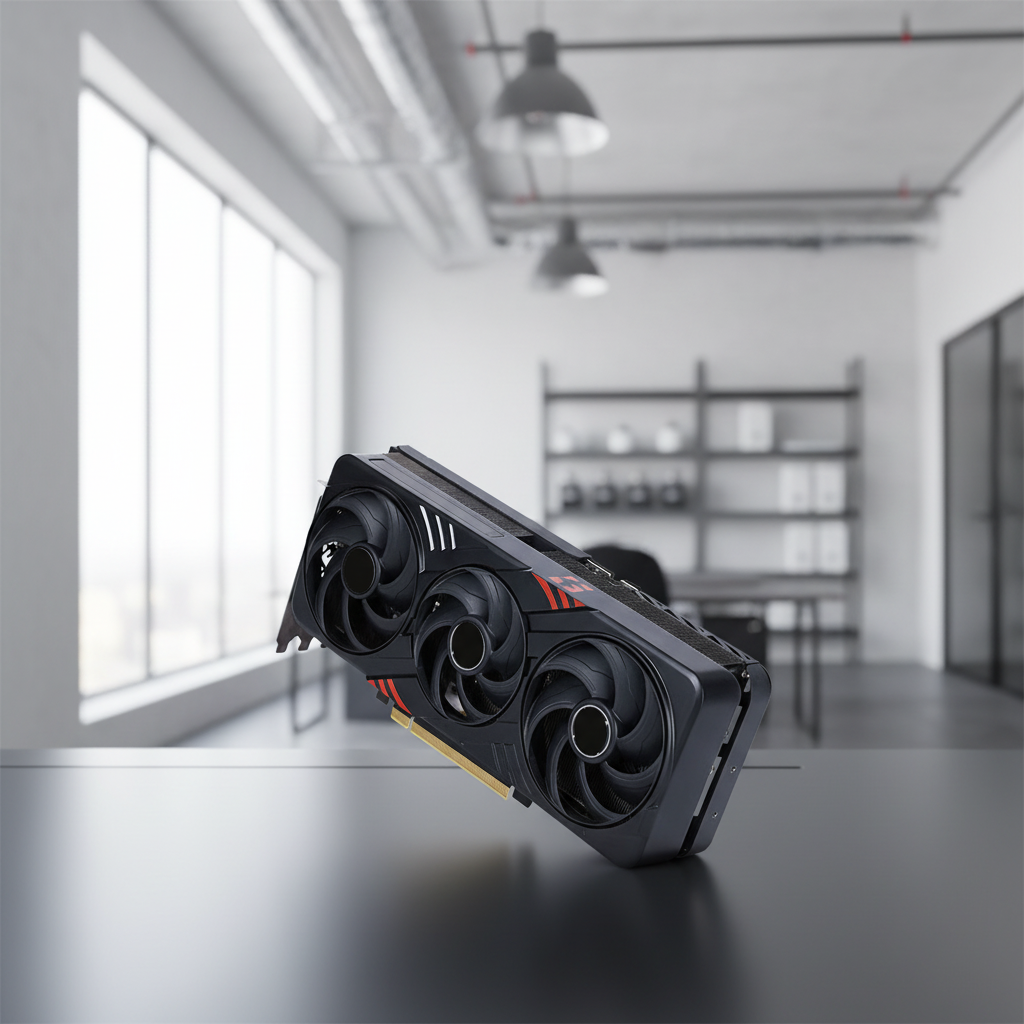

RTX 5090 D v2 Turbo Rendering
Item Specification
GPU Model GeForce RTX 5090 D v2 (GB202-240)
Architecture Blackwell (TSMC 4N)
CUDA Cores 21760
RT Cores 170 (4th Gen)
Tensor Cores 680 (5th Gen)
Base Clock 2017 MHz
Boost Clock 2452 MHz
L2 Cache 96 MB
Video Memory 24 GB
Memory Type GDDR7
Memory Bus 384-bit
Memory Clock 28000 MHz (Effective)
Memory Bandwidth 1344 GB/s
TDP 575 W
Power Connector 16-pin (12VHPWR)
Bus Interface PCIe 5.0 x16
Output Ports 3×DP 2.1b, 2×HDMI 2.1b
Max Resolution 8K@60Hz
Cooling Triple Fan
Warranty 3 Years
RTX 5090 D v2 Turbo Design Detail
RTX 5090 D v2 Turbo Box
RTX 5090 D v2 Turbo Dimensions

Frequently Asked Questions

Q1: What can you buy from us?

A1: Server, Storage, Workstations, Memory, Hard Disk, laptop, Desktop.

Q2: Do you have your own R&D team?

A2: Yes, we can customize products as your requirements.

Q3: How about the quality?

A3: We have the best professional engineer and strict QA and QC system.

Q4: How’s the package?

A4: Normally are cartons, but also we can pack it according to your requirements.

Q5: How’s the delivery time?

A5: It depends on the quantity you need, 7 days usually. Available languages spoken include English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, and Italian.
