NVIDIA RTX 5090D V2 21760 CUDA Cores Desktop GPU with 1344GB/s High Bandwidth Memory

Send Inquiry

Product Description

RTX 5090 D LUNA OC

Performance and Specifications

Blackwell flagship core: 21760 CUDA, comprehensive upgrades in AI computing power, ray tracing, and DLSS 4 capabilities
Board frequency adjustment: Base frequency 2017MHz, Boost frequency 2452MHz. Stable compatibility, with ample overclocking potential.
24GB GDDR7: 384-bit width, 28 Gbps rate, capable of supporting 4K/8K gaming and large model inference
575W full power consumption: 14-layer PCB + 29-phase power supply, MPS high-end MOS, stable under long-term full load operation

Non-public heat dissipation (core advantage)

Magnetic Star Ultra Heat Sink: Large-area heat sink plate + 9 nickel-plated heat pipes + pure white fins
395mm frost-cooled fan: Low noise, high air pressure, intelligent start-stop function, strong cooling performance at full load
Integrated die-cast alloy frame: Strengthens the PCB, prevents deformation, and enhances heat dissipation efficiency
All-metal pure white back panel: Hollowed-out for heat dissipation and protection components, achieving a balance between appearance and functionality.

Appearance and lighting effect

Pure White LUNA Theme: Matte upper cover + mirror elements, suitable for pure white ocean-view rooms
Magnetic top cover: No tools required for disassembly, making it convenient for cleaning and DIY projects.
IML ARGB dome light + multi-layer mirror logo: Supports synchronization of factory lighting effects
Dual BIOS: One-click switch between performance and silent modes

Interfaces and Extensions

3×DP 2.1b + 1×HDMI 2.1b: Supports 4K@240Hz, 8K@60Hz output without DSC
12V - 2x6 power supply: Reversed design, in line with the latest standards, providing more stable power supply

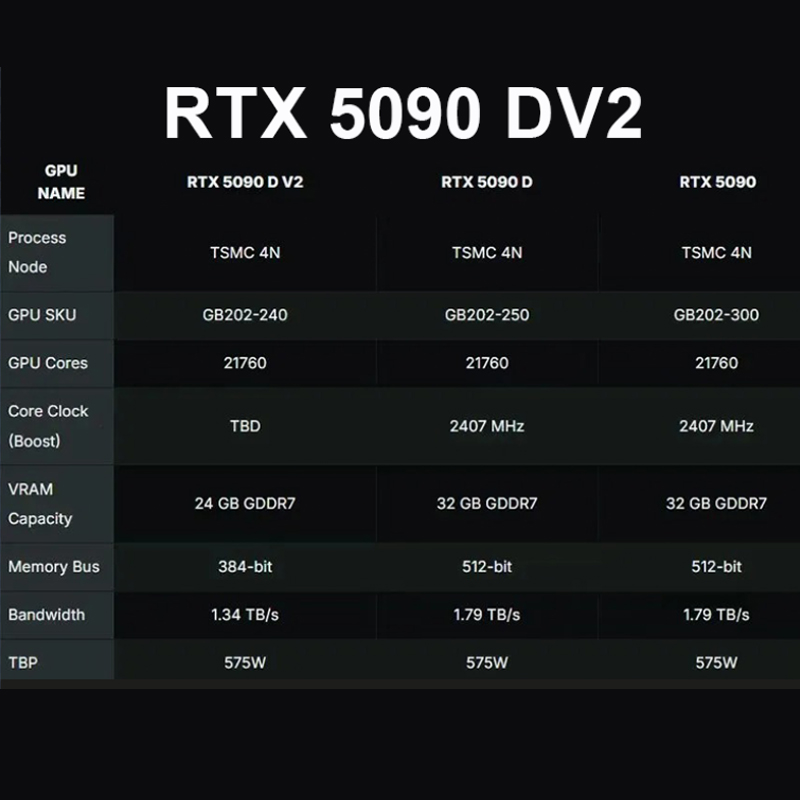

Item	Specification
GPU Model	GeForce RTX 5090D
Core Codename	GB202-250-A1
Architecture	Blackwell
Process	TSMC 4nm 4N
CUDA Cores	21760
Base Clock	2017MHz
Boost Clock	2452MHz
Video Memory	24GB GDDR7
Memory Bus	384bit
Memory Speed	28Gbps
Memory Bandwidth	1344GB/s
TGP	575W
Power Connector	12V-2x6 (ATX3.1 / PCIe 5.0)
Video Output	3×DP 2.1b + 1×HDMI 2.1b
PCB Layer	14-layer
Power Phase	22+7 Phase
Cooling System	MAGSTAR Ultra Triple Fan
Fan	3×95mm Fans, Zero-Froz
Heat Pipe	7×8mm + 2×6mm Nickel-plated
Dimensions	34.8×14.0×6.0cm (3 Slots)
Features	White, Magnetic Cover, ARGB Lighting, Dual BIOS
