Product Description

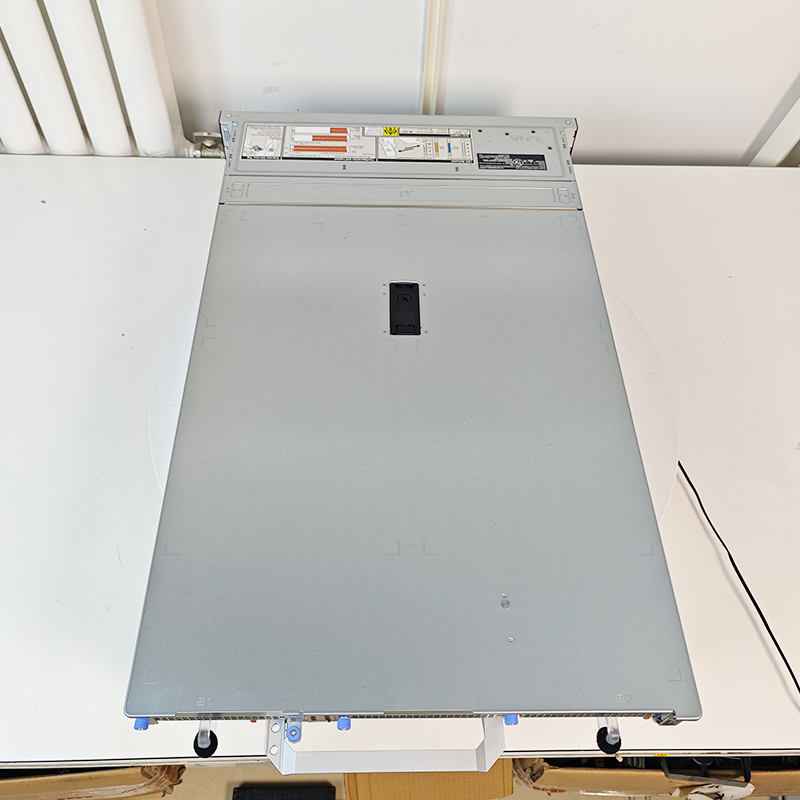

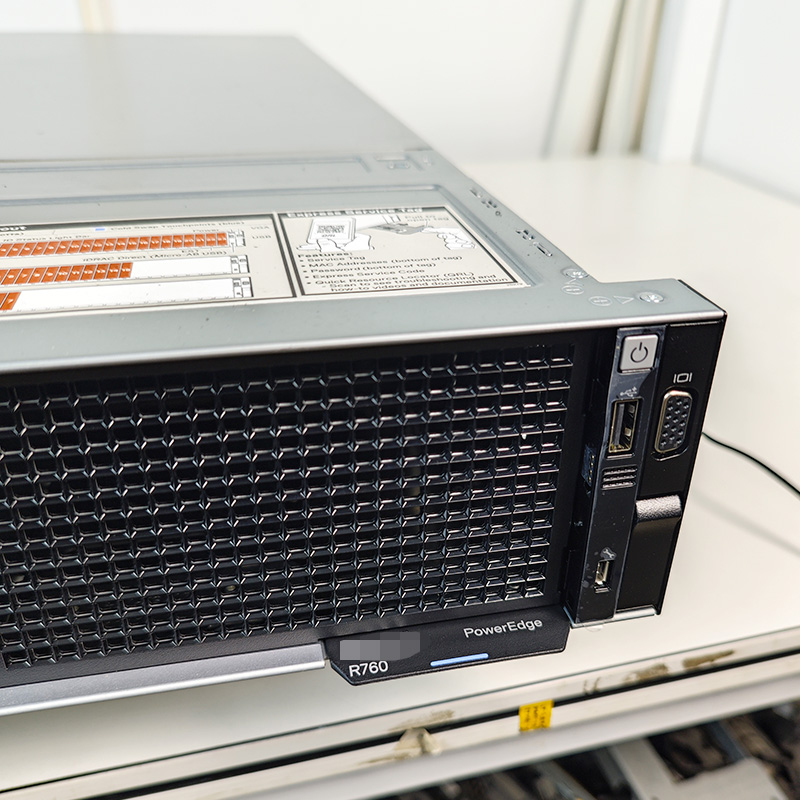

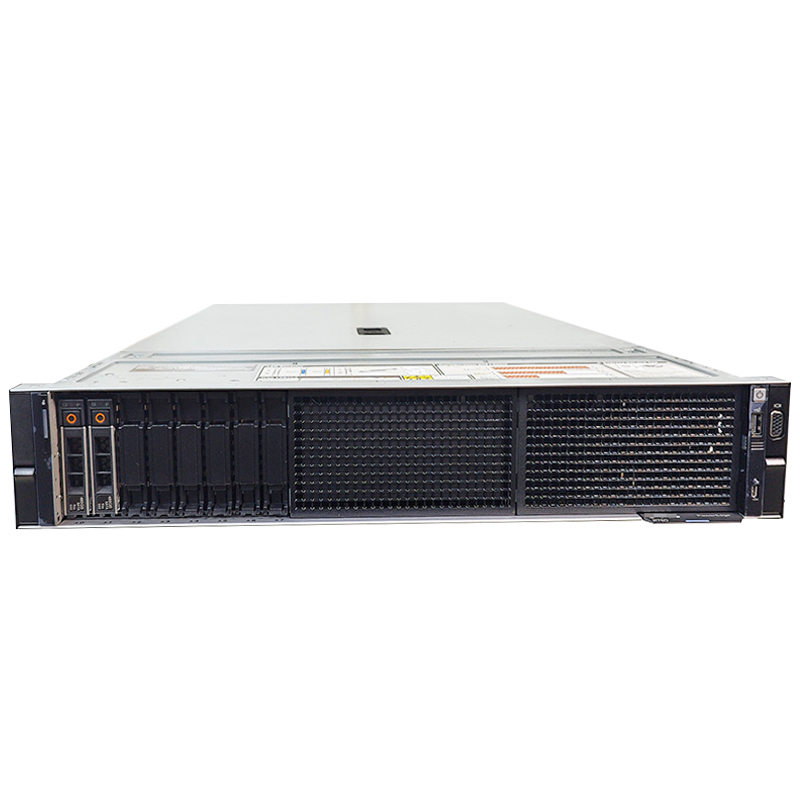

PowerEdge R760 Appearance & Design

The PowerEdge R760 adopts a professional 2U rack-mounted design, engineered for high-density computing environments. Its dimensions are optimized for standard data center integration: 86.8 mm height, 482 mm width, and a maximum depth of 772.13 mm with a baffle. With a maximum weight of 36.1 kg, it balances robust construction with enterprise-level scalability.

Key Hardware Specifications

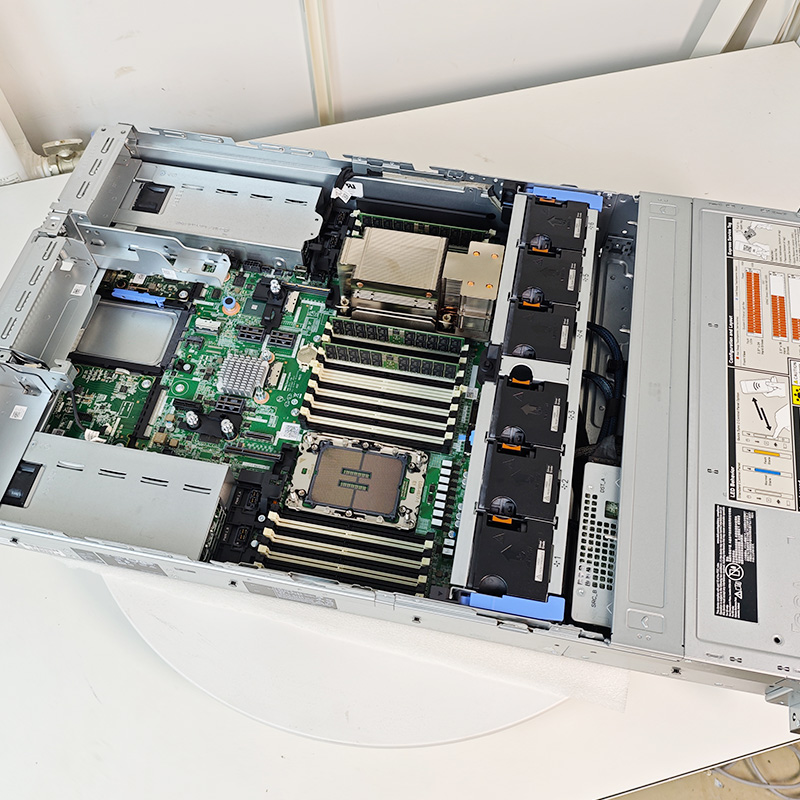

Processor & Memory

Supports up to 2 x 4th Gen Intel® Xeon® Scalable Processors (up to 56 cores). Equipped with 32 DDR5 DIMM slots supporting up to 8TB at 4800MT/s.

Storage & Graphics

Configurable with up to 12 x 3.5" SAS/SATA or 24 x 2.5" NVMe drives. Supports up to 2 dual-width or 6 single-width GPUs for AI workloads.

Cooling & Efficiency

Intelligent flow chassis with air-cooling optimization or optional liquid cooling. Dual redundant power supplies ranging from 700W to 2800W.

Technical Parameters

Model	PowerEdge R760
Processor	Up to two 4th or 5th Gen Intel® Xeon® Scalable processors (Up to 32 cores per processor)
RAM	16/32 DDR5 RDIMM slots, supporting up to 1.5 TB/8TB with speeds up to 5200 MT/s
Drive Bays	Default 8 x 3.5-inch bays; options for 12 x 3.5-inch or 16 x 2.5-inch chassis
RAID Controllers	S160, PERC H355/H755/H755N, PERC H965i, HBA355i
Power Supply	Hot-swappable redundant: 600W/800W/1100W/1400W/1800W/2400W/2800W
Warranty	3 Years Standard Support

Management & Interfaces

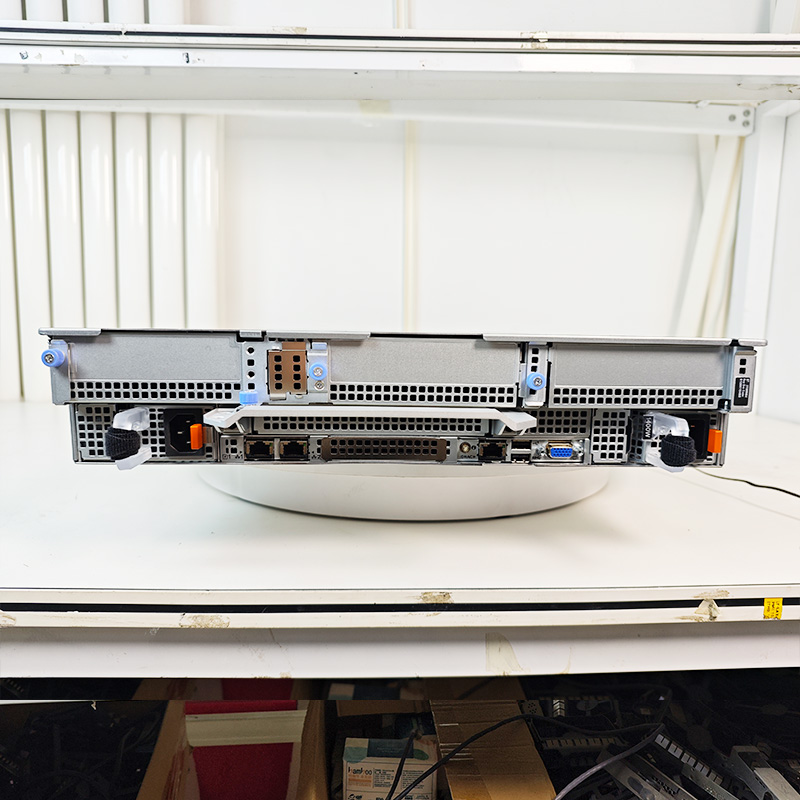

The system features enterprise-grade management through the iDRAC Direct port (Micro-AB USB), dedicated iDRAC Ethernet, and multiple USB 2.0/3.0 ports for seamless local and remote administration.

Frequently Asked Questions

Q1: What processors are supported by the PowerEdge R760?

A1: It supports up to two 4th or 5th Generation Intel® Xeon® Scalable processors, with configurations available up to 56 cores for high-performance computing.

Q2: What is the maximum memory capacity of this server?

A2: The R760 is equipped with 32 DDR5 DIMM slots, supporting a maximum memory capacity of up to 8TB with RDIMM modules at speeds up to 4800MT/s.

Q3: Does the R760 support GPU acceleration for AI or VDI?

A3: Yes, it supports up to 2 dual-width GPUs or 6 single-width GPUs, making it ideal for workloads requiring significant graphics or computational acceleration.

Q4: What are the storage expansion options?

A4: It offers flexible storage configurations, including up to 12 x 3.5" SAS/SATA drives or up to 24 x 2.5" NVMe U.2/E3.S solid-state drives, plus rear drive slot options.

Q5: How is the thermal management handled in high-core count configurations?

A5: The server features a new intelligent flow chassis for optimized air cooling. For extreme performance requirements, optional direct liquid cooling technology is also available.

Q6: What power supply options are available for redundancy?

A6: You can choose from various redundant AC or DC power supplies, including 700W, 800W, 1100W, 1400W, 1800W, 2400W, and 2800W in Titanium or Platinum efficiency ratings.
