Processors: Supports two 4th Gen Intel Xeon Scalable processors with up to 56 cores per CPU and Intel Quick Assist Technology.

Memory: Equipped with 32 DDR5 DIMM slots, RDIMM support, up to 8TB capacity, and memory speeds up to 4800MT/s.

Storage:

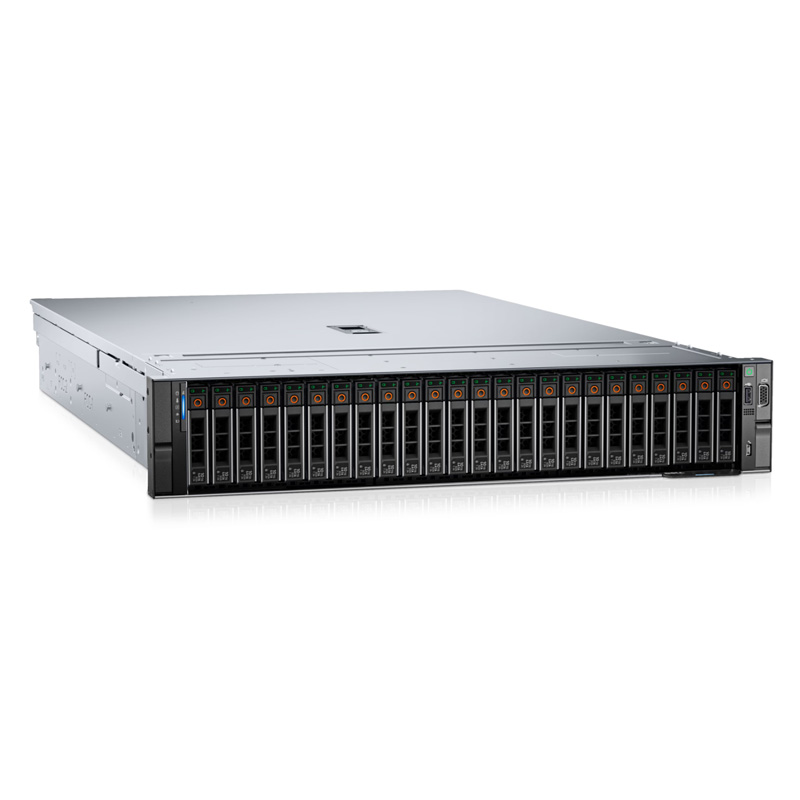

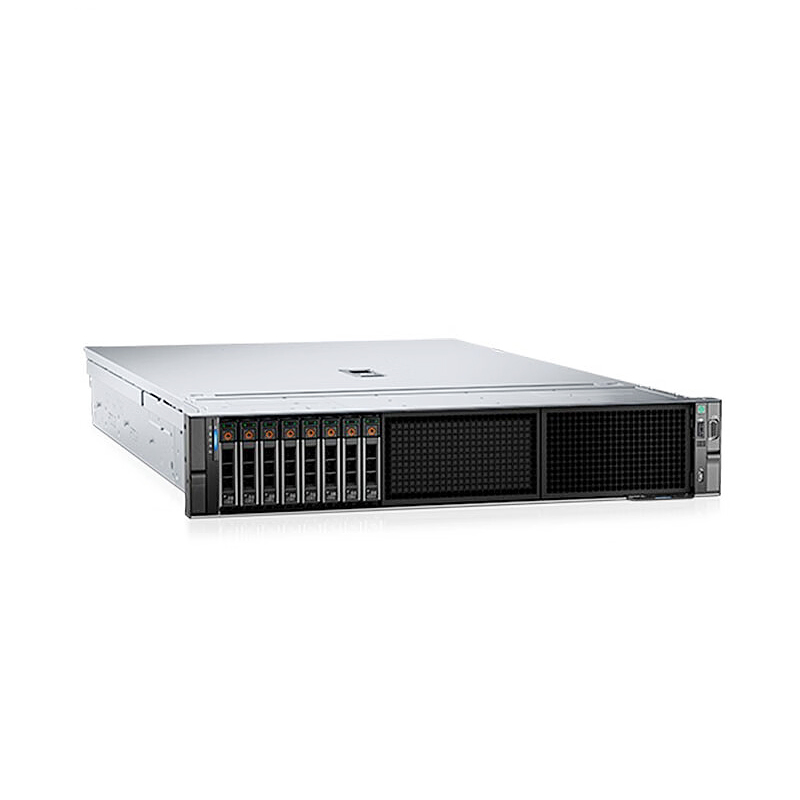

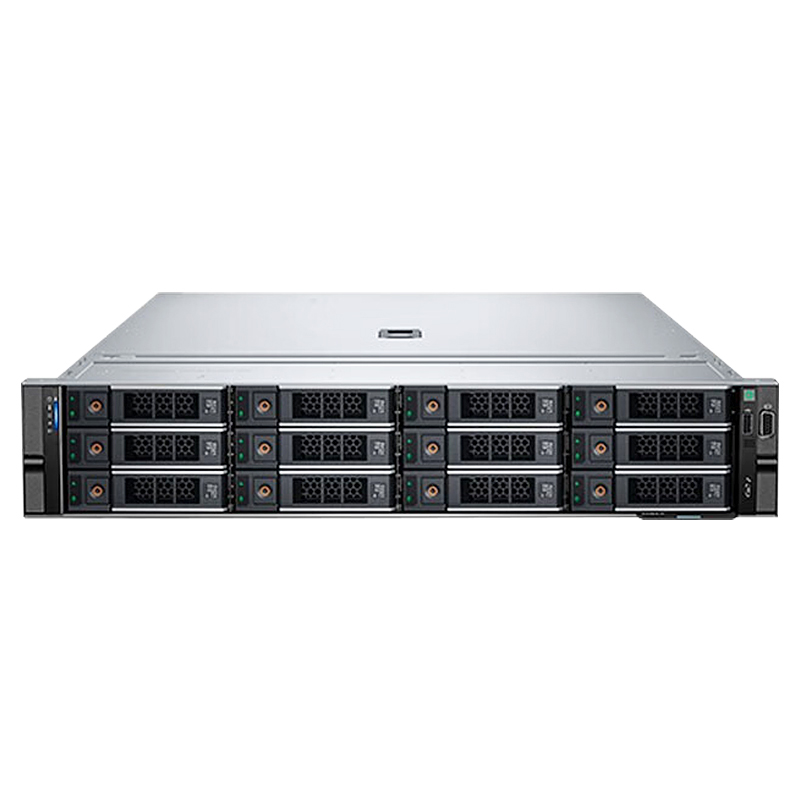

Front panel: Supports multiple configurations, including 12 x 3.5-inch SAS/SATA hard drives (up to 240TB); 8 x 2.5-inch SAS/SATA/NVMe hard drives (up to 122.88TB); 16 x 2.5-inch SAS/SATA/NVMe hard drives (up to 245.76TB); 24 x 2.5-inch SAS/SATA/NVMe hard drives (up to 368.64TB).
Rear panel: Configurable with 2 x 2.5-inch SAS/SATA/NVMe HDDs (up to 30.72TB) or 4 x 2.5-inch SAS/SATA/NVMe HDDs (up to 61.44TB).
Other: Internal controllers include PERC H965i, PERC H755, PERC H755n, PERC H355, HBA355i, etc.; Boot Optimized Storage Subsystem(BOSS - N1) with a choice of hardware RAID 2 x M.2 NVMe SSD or USB as internal boot device; External HBA (non-RAID) HBA355e and storage RAID S160 are also supported.

GPU Options: Up to 2 x 350W dual-wide GPUs or 6 x 75W single-wide GPUs.

Expansion slots: There are a total of 8 PCIe ports, which are as follows:
Slot 1: 1x8 Gen 5 or 1x8/1x16 Gen 4 full-height, half-length or 1x16 Gen 4 full-height, full-length.
Slot 2: 1x8/1x16 Gen 5 or 1x8 Gen 4 full-height, half-length or 1x16 Gen 5 full-height, full-length.
Slot 3: 1x16 Gen 4 low-profile, half-length.
Slot 4: 1x8 Gen 4 full-height, half-length.
Slot 5: 1x8/1x16 Gen 4 full height, half length or 1x16 Gen 4 full height, full length.
Slot 6: 1x16 Gen 4 low-profile, half-length.
Slot 7: 1x8/1x16 Gen 5 or 1x8 Gen 4 full-height, half-length; Slot 7 SNAPI: 1x16 Gen 5 full-height, half-length.
Slot 8: 1x8 Gen 5 or 1x8 Gen 4 full height, half length.

Network Options: Choice of 1 OCP 3.0 NIC.

Interface:
Front panel: 1 x iDRAC Direct (micro AB USB), 1 x USB 2.0, 1 x VGA.

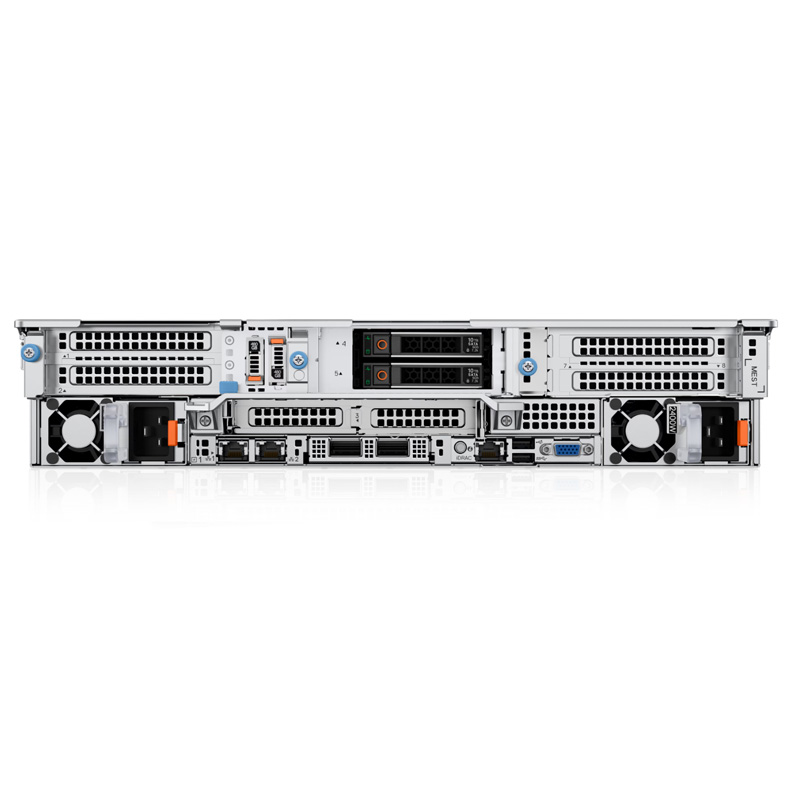

Rear panel: 1 USB 2.0 port, 1 USB 3.0 port, 1 serial port (optional), 1 dedicated iDRAC Ethernet port, 1 VGA port, and possibly 1 additional VGA port (optional) in direct liquid cooling configurations.
Internal: 1 USB 3.0 port (optional).

Power Supply: Multiple power options are available, including 2800W Titanium (200 - 240V AC or 240V HVDC), 2400W Platinum (100 -240V AC or 240V HVDC), 1800W Titanium (200 - 240V AC or 240V HVDC), 1400W Platinum (100 - 240V AC or 240V HVDC), 1100W Titanium(100 - 240V AC or 240V HVDC), 1100W low-voltage DC (-48 - -60V DC), 800W Platinum (100 - 240V AC or 240V HVDC), 700W Titanium (200- 240V AC or 240V HVDC), all support hot-swap redundancy.
