PowerEdge R760 Rack Server - Premium Customization
Processors
Supports two 4th Gen Intel Xeon Scalable processors with up to 56 cores per CPU and Intel Quick Assist Technology.
Memory
Equipped with 32 DDR5 DIMM slots, RDIMM support, up to 8TB capacity, and memory speeds up to 4800MT/s.
Storage
Front panel: Supports multiple configurations, including 12 x 3.5-inch SAS/SATA hard drives (up to 240TB); 8 x 2.5-inch SAS/SATA/NVMe hard drives (up to 122.88TB); 16 x 2.5-inch SAS/SATA/NVMe hard drives (up to 245.76TB); 24 x 2.5-inch SAS/SATA/NVMe hard drives (up to 368.64TB).
Rear panel: Configurable with 2 x 2.5-inch SAS/SATA/NVMe HDDs (up to 30.72TB) or 4 x 2.5-inch SAS/SATA/NVMe HDDs (up to 61.44TB).
Other: Internal controllers include PERC H965i, PERC H755, PERC H755n, PERC H355, HBA355i, etc.; Boot Optimized Storage Subsystem(BOSS - N1) with a choice of hardware RAID 2 x M.2 NVMe SSD or USB as internal boot device; External HBA (non-RAID) HBA355e and storage RAID S160 are also supported.
GPU Options
Up to 2 x 350W dual-wide GPUs or 6 x 75W single-wide GPUs.
Expansion slots
There are a total of 8 PCIe ports, which are as follows:
Slot 1: 1x8 Gen 5 or 1x8/1x16 Gen 4 full-height, half-length or 1x16 Gen 4 full-height, full-length.
Slot 2: 1x8/1x16 Gen 5 or 1x8 Gen 4 full-height, half-length or 1x16 Gen 5 full-height, full-length.
Slot 3: 1x16 Gen 4 low-profile, half-length.
Slot 4: 1x8 Gen 4 full-height, half-length.
Slot 5: 1x8/1x16 Gen 4 full height, half length or 1x16 Gen 4 full height, full length.
Slot 6: 1x16 Gen 4 low-profile, half-length.
Slot 7: 1x8/1x16 Gen 5 or 1x8 Gen 4 full-height, half-length; Slot 7 SNAPI: 1x16 Gen 5 full-height, half-length.
Slot 8: 1x8 Gen 5 or 1x8 Gen 4 full height, half length.
Network Options
Choice of 1 OCP 3.0 NIC.
Interface

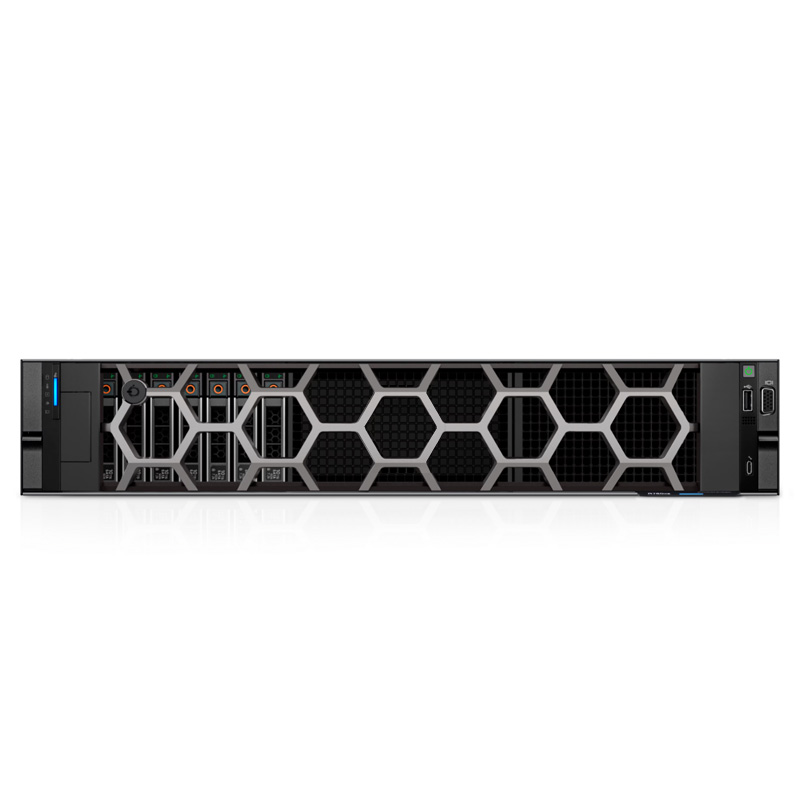

Front panel: 1 x iDRAC Direct (micro AB USB), 1 x USB 2.0, 1 x VGA.

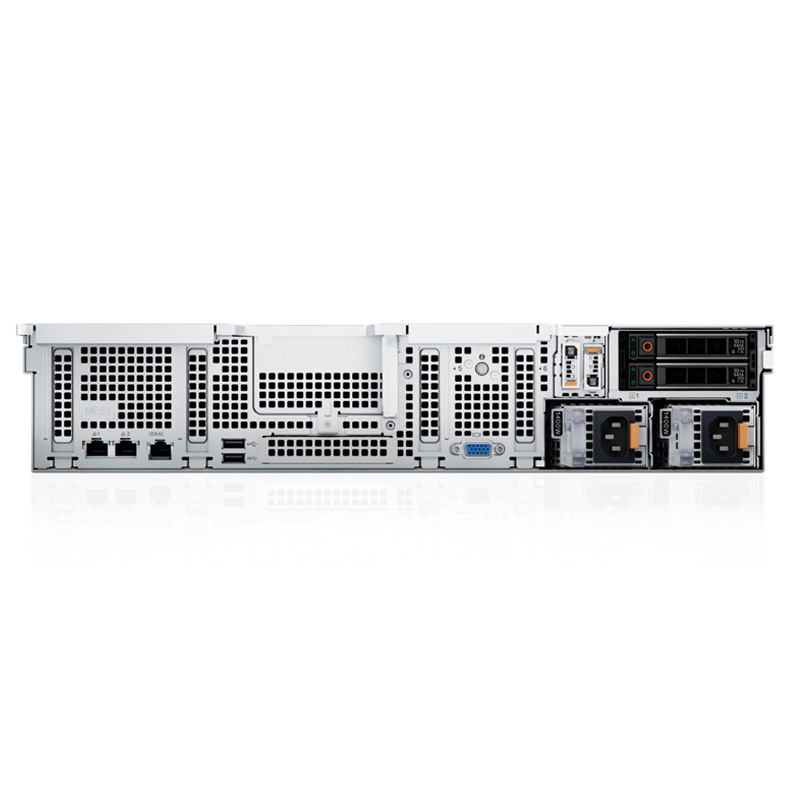

Rear panel: 1 USB 2.0 port, 1 USB 3.0 port, 1 serial port (optional), 1 dedicated iDRAC Ethernet port, 1 VGA port, and possibly 1 additional VGA port (optional) in direct liquid cooling configurations.
Internal: 1 USB 3.0 port (optional).
Power Supply
Multiple power options are available, including 2800W Titanium (200 - 240V AC or 240V HVDC), 2400W Platinum (100 -240V AC or 240V HVDC), 1800W Titanium (200 - 240V AC or 240V HVDC), 1400W Platinum (100 - 240V AC or 240V HVDC), 1100W Titanium(100 - 240V AC or 240V HVDC), 1100W low-voltage DC (-48 - -60V DC), 800W Platinum (100 - 240V AC or 240V HVDC), 700W Titanium (200- 240V AC or 240V HVDC), all support hot-swap redundancy.
Cyber Resilient Architecture
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.
Autonomous Collaboration
The OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
Sustainability
From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to reduce the carbon footprint and lower operation costs.
PowerEdge R760 Management & Security
Integrated iDRAC Restful API with Redfish, Quick Sync 2 wireless module, BMC® TrueSight; Supports data-at-rest encryption (SED with local or external key management), system lockout (requires iDRAC9 Enterprise or Data Center Edition); Equipped with TPM 2.0, FIPS, CC - TCG certification.
