Aiserver Manufacturer
1 / 5
| Processor | Up to two 5th Gen Intel Xeon Scalable processors with up to 64 cores each; It can also be paired with two 4th Gen Intel Xeon Scalable processors, each with up to 56 cores. |
| Memory | 32 DDR5 DIMM slots supporting up to 4TB of RDIMM. Up to 5600MT/s with 5th Gen Intel Xeon Scalable processors; With 4th Gen Intel Xeon Scalable processors, speeds of up to 4800MT/s. Only registered ECC DDR5 DIMMs are supported. |
| GPU | Eight HGX H200 141GB 700W SXM5 GPUs, fully interconnected with NVLink technology. |
| Storage Controller | The internal controller is PERC H965i; Internal boot is Boot Optimized Storage Subsystem (BOSS-N1) with HWRAID 1 support and 2 x M.2 SSDs; Software RAID is S160. |
| Drive Bays | The front tray holds up to 8 x 2.5-inch NVMe/SAS/SATA SSD drives with a maximum capacity of 122.88TB; Also available for up to 16 E3s. S NVMe Direct drive with a maximum capacity of 122.88TB. |
| Power Supply | Choose from 3200W Titanium 277VAC or 260-400VDC hot-swappable redundant power supplies, or 2800W Titanium 200-240VAC or 240VDC hot-swappable redundant power supplies. |

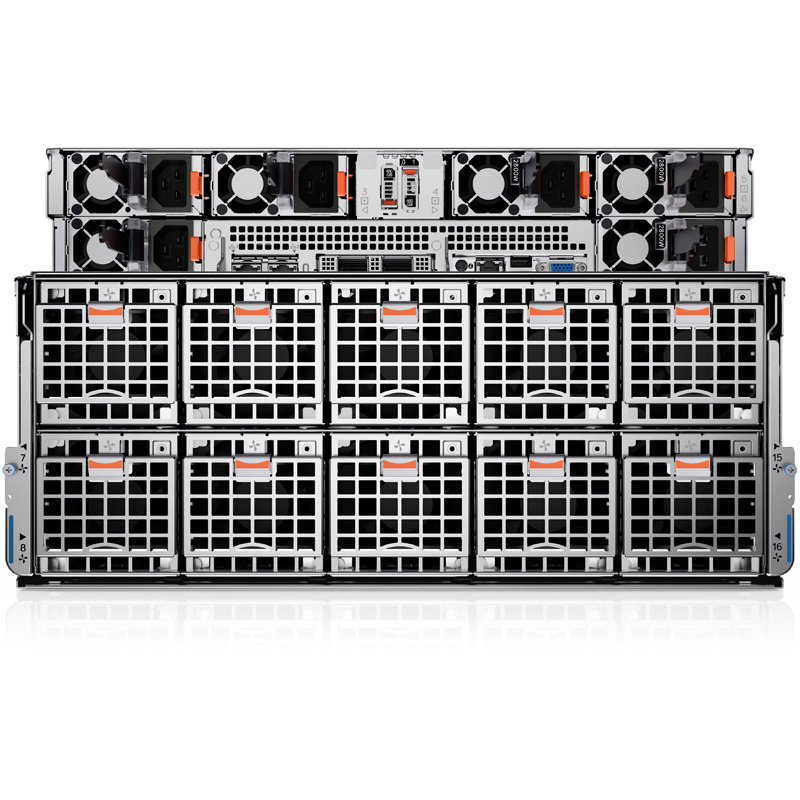

| Cooling Options | Air-cooled, up to 6 High Performance (HPR) Gold fans in the middle tray and up to 10 High Performance (HPR) Gold fans on the back of the system, all hot-swappable. |
| Chipset | Intel C741 chipset. |
| PCIe | Up to 10 x16 5.0 (x16 PCIe) full-height, half-length slots. |
| Embedded NICs | 2 x 1GbE. |
| Network Options | 1 x OCP 3.0 (x8 PCIe lanes). |
| Dimensions & Weight | Height: 263.2 mm (10.36 in), Width: 482.0 mm (18.97 in), Depth: 1008.77 mm (39.71 in) with bezel, 995 mm (39.17 in) without bezel. Weight: up to 113.3 kg (249.78 lb). |
| Security | Cryptographically signed firmware, data encryption at rest, secure boot, secure component verification, secure erase, silicon root of trust, system lockout, TPM 2.0 FIPS, CC-TCG authentication. |
| Ports | Front: 1 x iDRAC Direct (Micro-AB USB), 1 x USB 2.0, 1 x VGA. Back: 1 x USB 2.0 port. |
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience.
The OpenManage systems management portfolio delivers a secure, efficient, and comprehensive solution. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
Designed to reduce the carbon footprint and lower operation costs through recycled materials and innovative energy efficiency options. Easily retire legacy systems responsibly with Technologies Services.

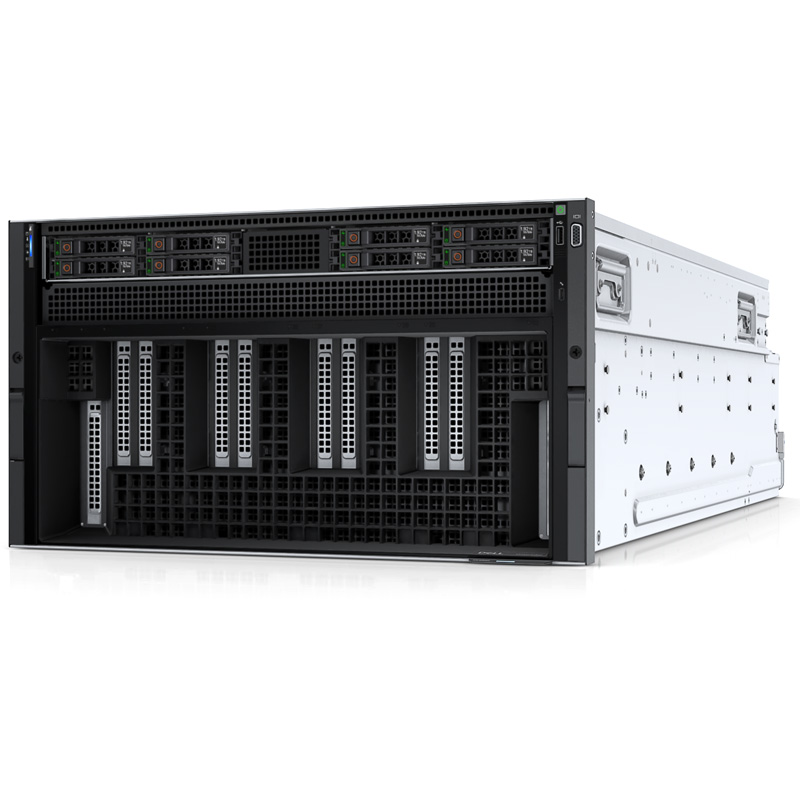

PowerEdge XE9680 Performance
Configure up to 8x NVIDIA HGX H200 141GB 700W SXM5 GPUs to accelerate your most demanding AI and HPC workloads with massive memory capacity and bandwidth.
