| Processor | Available with Intel® Xeon® Processor W-series CPUs (Skylake-W) or Core X-series, each processor supports up to 18 cores, Intel Advanced Vector Scaling Technology, Intel Trusted Execution Technology, Intel AES New Instructions, optimized Intel Turbo Boost Technology, and optional Intel vPro™ technology. |

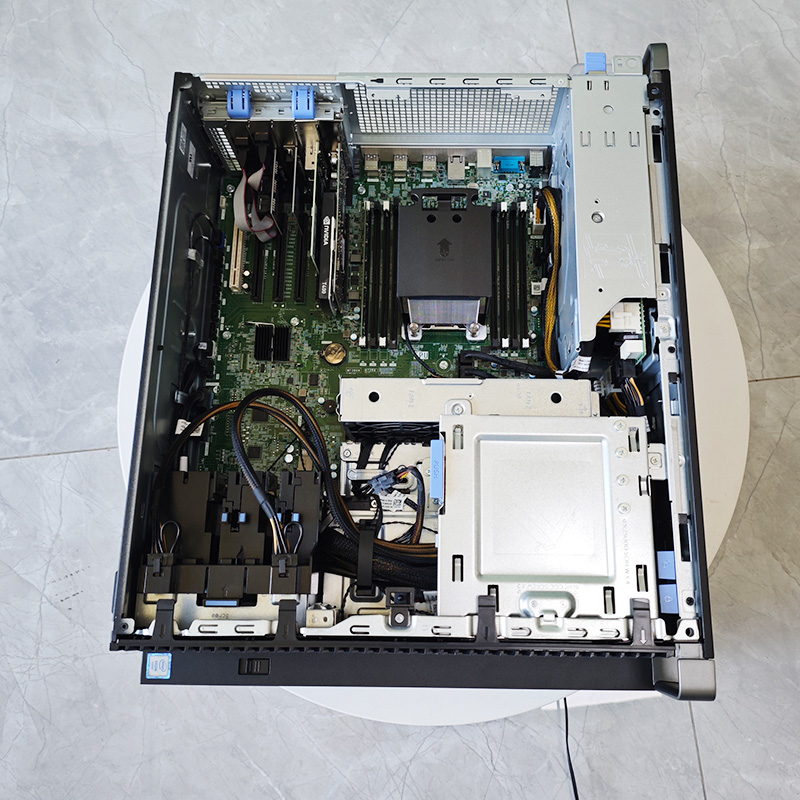

| Motherboard Specifications | The motherboard features a FCLGA2066 CPU socket R4 that supports Intel Xeon W-series processors such as the Cascade Lake W-2200 series as well as Core I9-series processors, and features 8 DDR4 DIMM memory slots for excellent performance and scalability. |
| Memory Specifications | It has 8 DIMM slots and supports quad-channel DDR4 memory with up to 512 GB 2666MHz DDR4 ECC memory, up to 256 GB 2933MHz DDR4 (RDIMM) ECC memory, and 256 GB 2666MHz DDR4 (UDIMM) non-ECC memory |
| Storage Specifications |
Drive Support: The front-mountable FlexBay supports up to 4 x 2.5"/3.5" SATA HDD/SSD, as well as up to 6 x 2.5" HDDs and 5 x 3.5" HDDs with 5.25" bays. SAS hard drives are also supported, but additional SAS controller cards need to be installed. SSDs: Up to 2 front-removable (hot-swappable) M.2 NVMe PCIe SSDs are supported in FlexBay on PCIe-enabled chassis with integrated Intel controllers. In addition, 1 Dell SuperSpeed Drive Quad Channel x16 expansion card supports up to 4 M.2 NVMe PCIe SSDs. |
| Video / Audio | Supports 2 PCI Express® x16 Gen 3 graphics cards with up to 600W power and up to 2 x 300W double-wide graphics cards, with a choice of professional graphics cards such as the latest AMD Radeon™ Pro™ and NVIDIA Quadro® such as the high-end Radeon™ Pro WX 9100 and NVIDIA Quadro P6000, and the mid-range Radeon™ Pro WX 5100, NVIDIA Quadro P2000, and more. |
| Software System | Pre-installed operating system Windows 10/11 Pro/Home |
