Aiserver Manufacturer
1 / 5

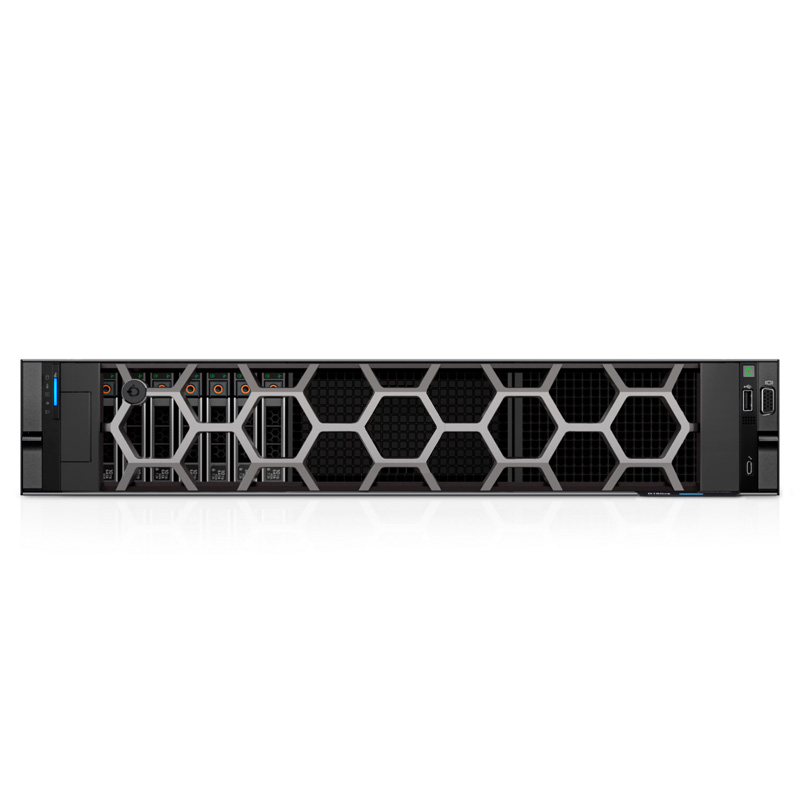

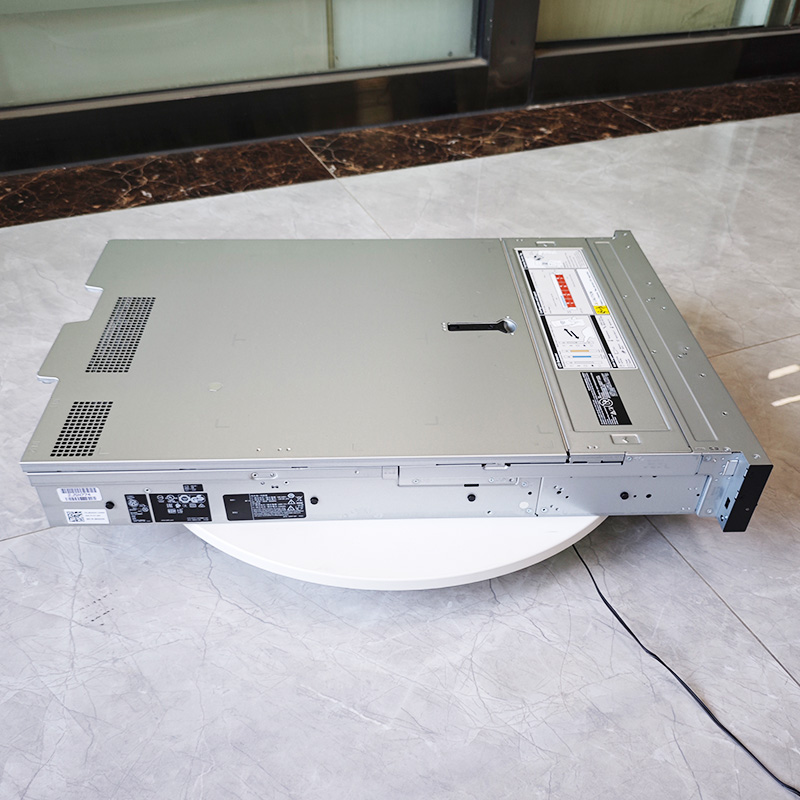

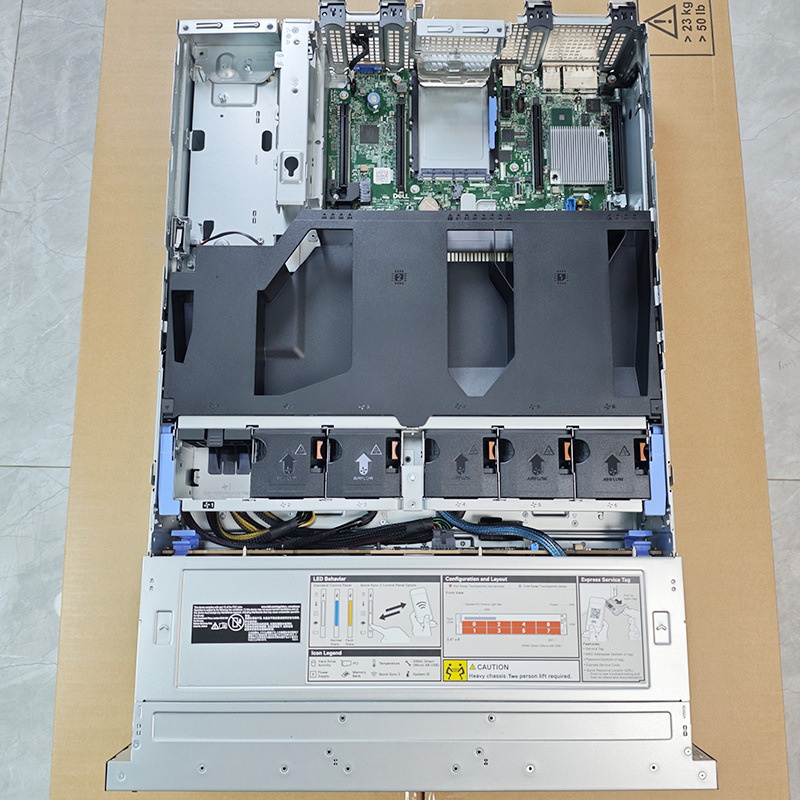

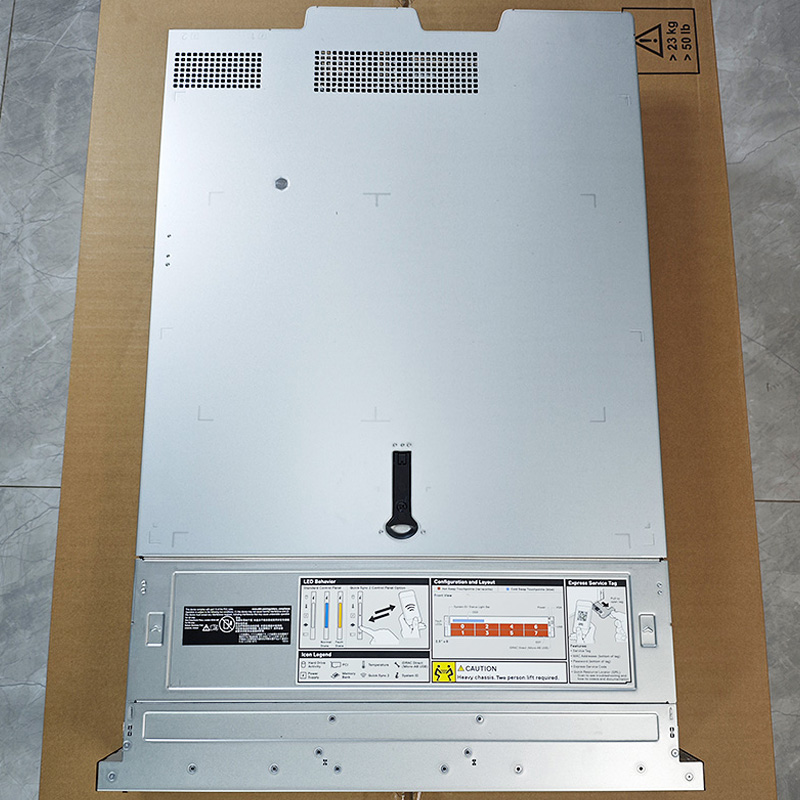

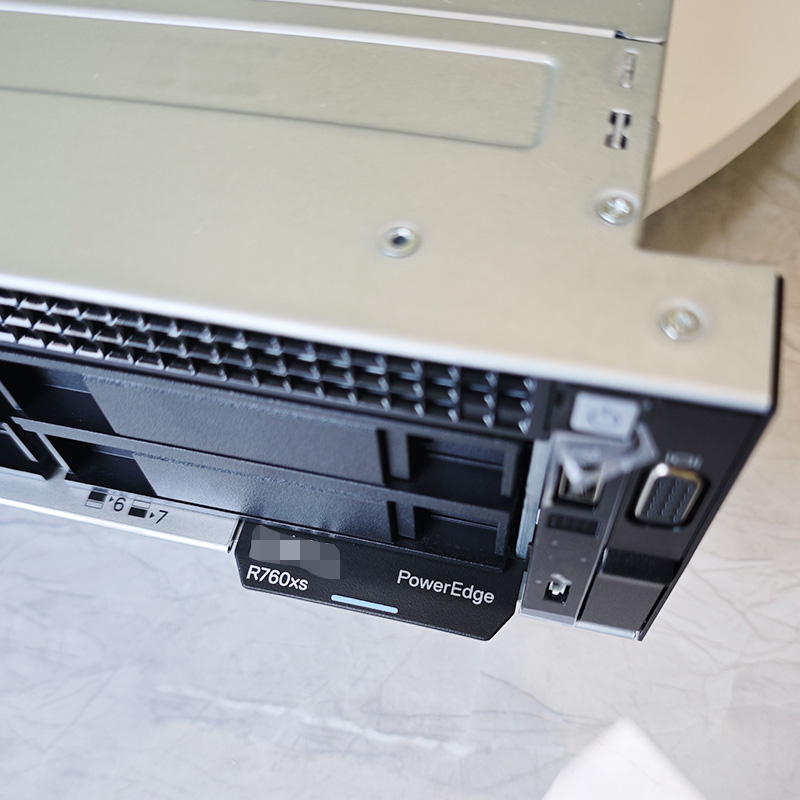

Overall Structure: 2U rack-mounted design, ideal for high-density data center deployments.
Processor Power
Supports Intel Xeon Scalable Processors (Silver 4410Y/4416+). Up to 2 CPUs supported.
Advanced Memory
16 DDR5 RDIMM slots, supporting speeds up to 5200 MT/s and expandable to 1.5TB.
Network & Management
Dual-port 10/25GbE SFP28 adapter and iDRAC remote management for centralized control.
| Component | Specification Details |
|---|---|
| Model | PowerEdge R760XS |
| Processor | Supports up to two 4th or 5th Gen Xeon Scalable processors (Up to 32 cores per CPU) |
| Memory | 16 DDR5 RDIMM slots, supports up to 1.5 TB (Up to 5200 MT/s) |
| Storage Bays | 12x3.5-inch or 16x2.5-inch chassis configurations; supports SAS/SATA/NVMe |
| Array Cards | S160 Software RAID; Optional hardware PERC H355/H755/H755N, H965i, HBA355i |
| Power Supply | Hot-swappable redundant: 600W / 800W / 1100W / 1400W / 1800W options |
| Networking | Integrated 2x1 GbE LOM; Optional OCP 3.0 and Fibre Channel cards |
| Warranty | 3-year standard warranty |
