PowerEdge T360

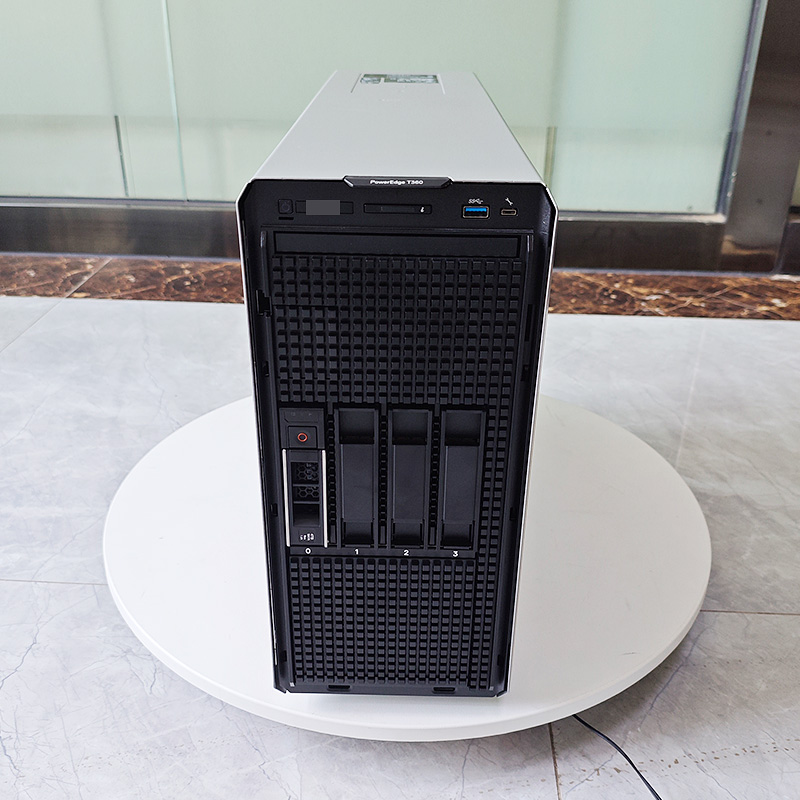

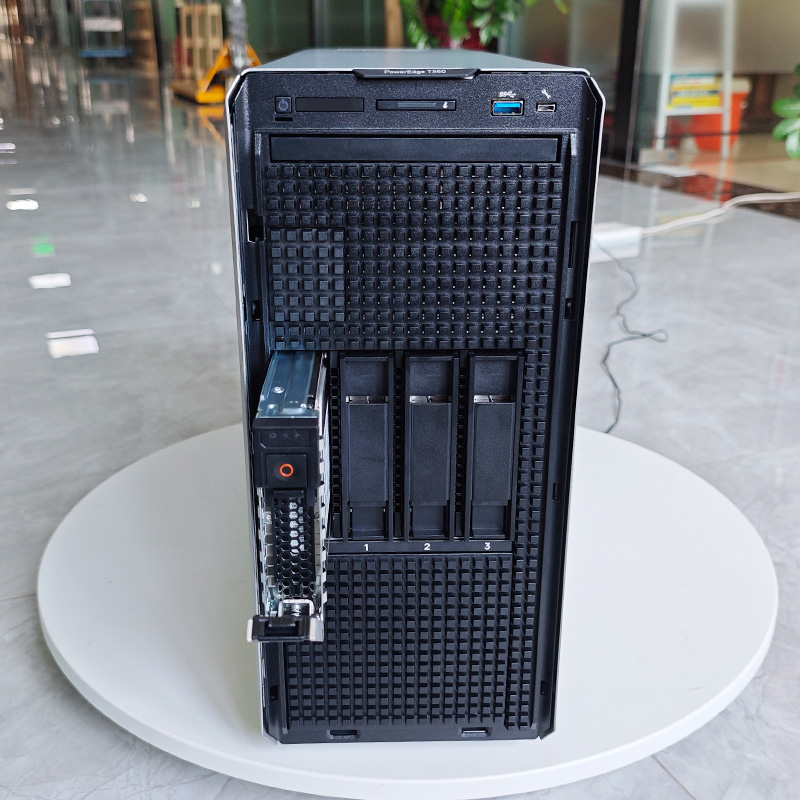

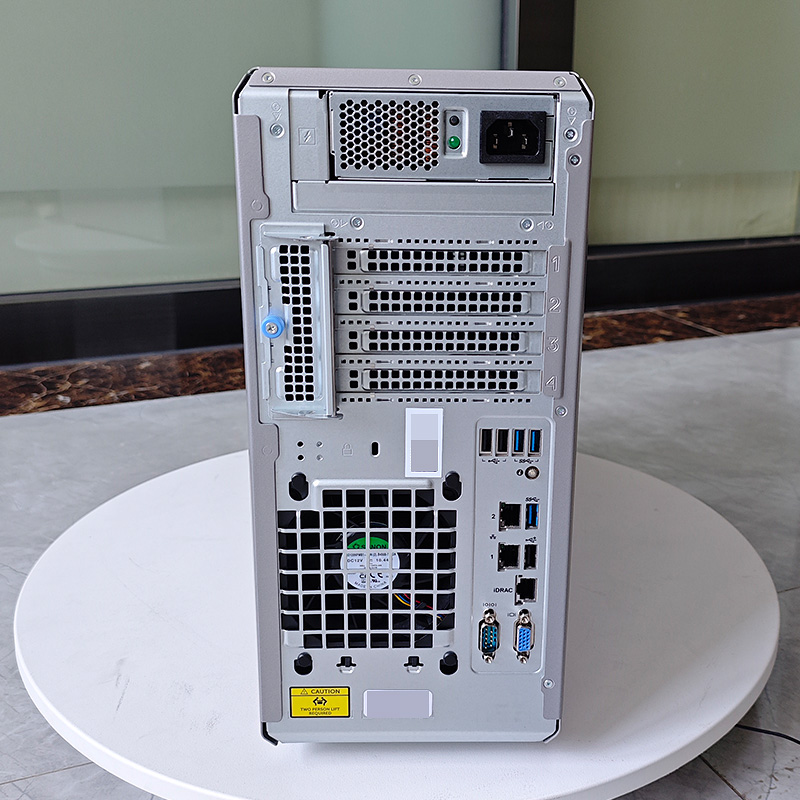

Appearance: The PowerEdge T360 tower server features a simple and practical design. With a standard 4.5U tower form factor, its moderate height allows for installation in regular server racks or standalone placement in offices/data centers. The front panel typically includes a power button, status indicators, and hard drive activity lights for intuitive operation monitoring, along with 1 iDRAC Direct (micro-AB USB) port and 1 USB 3.2 Gen 1 port. The rear panel integrates various interfaces—USB, Ethernet, serial, VGA, etc.—to meet connectivity needs with other devices.

PowerEdge T360

Processor

• Type: Supports Intel Xeon E-2400 series processors (up to 8 cores) or Intel Pentium G7400/G7400t processors (up to 2 cores).
• Socket: 1 x LGA 1700 socket.

Memory

• Slots: 4 DDR5 DIMM slots.
• Speed: Up to 4400MT/s.
• Max Capacity: 128GB UDIMM.

Storage

• Interface: Supports SAS/SATA HDD/SSD.
• Bays: 3.5-inch chassis with configurations of up to 4 or 8 hot-swappable drive bays.
• Controller: Optional PERC H355 adapter, supporting RAID 0/1/5/10 and other modes.

PowerEdge T360

Expansion

• PCIe Slots: Up to 4 PCIe slots, including x8 Gen 4 full-height half-length, x16 Gen 5 full-height half-length, x1 Gen 4 full-height half-length, etc.
• GPU Support: Supports 1 x 60W single-width GPU (e.g., NVIDIA A2).

Network

• Ethernet Ports: 2 rear Ethernet ports.
• Management Port: 1 dedicated iDRAC Ethernet port.

Power Supply

• Power Options: 450W Platinum (100-240V AC) with power cord.
• Optional Redundant: 600W Platinum (100-240V AC/240V DC) or 700W Titanium (200-240V AC/240V DC) hot-swappable redundant power supplies.

PowerEdge T360

Management

• Integrated Management: iDRAC 9.0 with management via iDRAC Direct, iDRAC RESTful API, etc.
• Software: Supports OpenManage Enterprise for comprehensive server monitoring and management.

Dimensions

• Height: 382.5 mm (15.06 in)
• Width: 175 mm (6.89 in)
• Depth: 579.7 mm (22.82 in) with bezel
