For XE9680 Rackmount GPU Server Dual Intel Xeon 8468 64G DDR4 2x7.68T SSD H800 GPU AI Digital Modeling Training Stock 3-Year

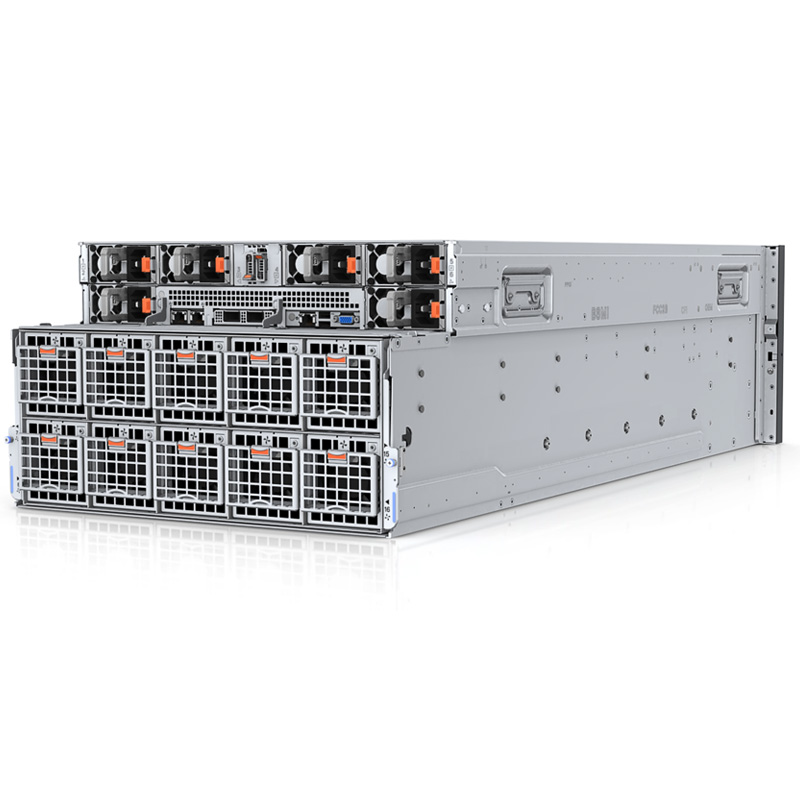

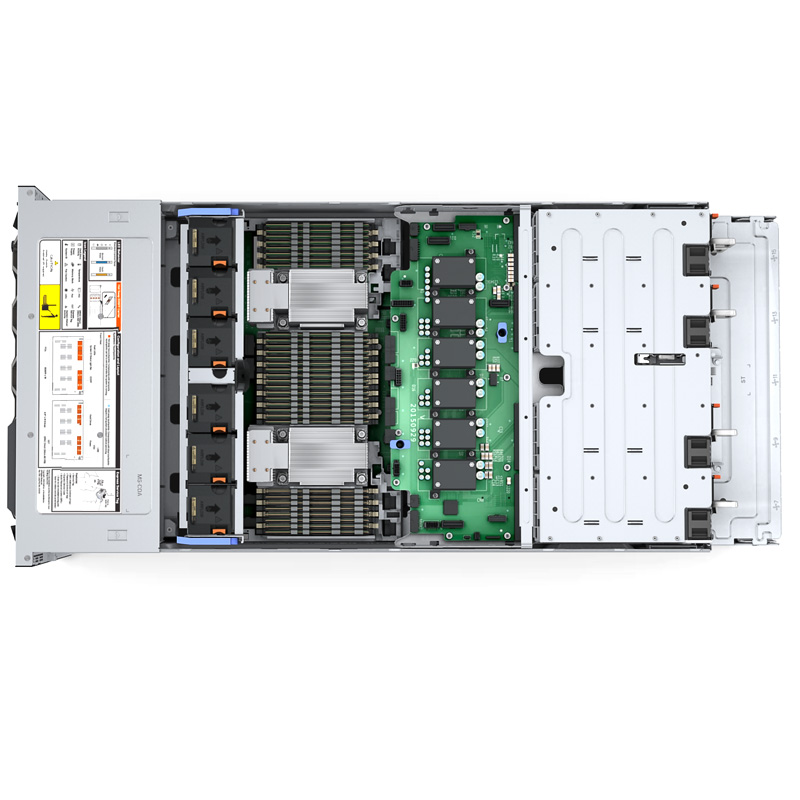

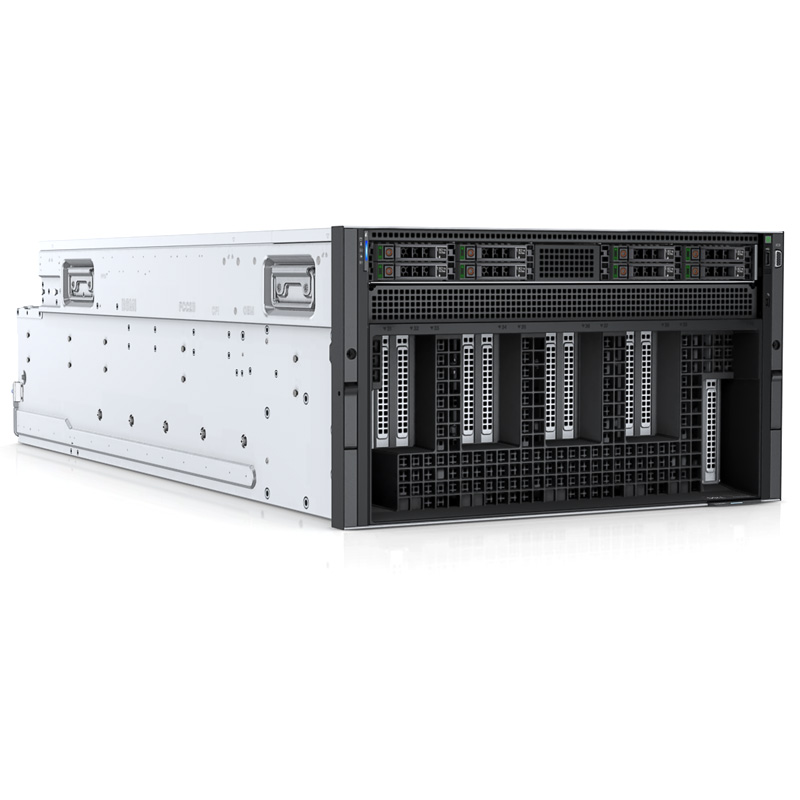

XE9680 Rack Server

XE9680 generally refers to EMC PowerEdge XE9680 rack server, which is a high-performance server specially designed for artificial intelligence, machine learning and deep learning. The following is a detailed introduction:

Processor & Memory

Processor: It can be configured with two 5th Gen Intel Xeon Scalable processors, each with up to 64 cores; it can also choose two 4th Gen Intel Xeon Scalable processors, each with up to 56 cores.
Memory: It has 32 DDR5 DIMM slots. When equipped with 5th Gen Intel Xeon Scalable processors, the memory speed can reach up to 5600MT/s; when equipped with 4th Gen, the speed can reach up to 4800MT/s, and the maximum RDIMM can be 4TB.

Storage & Boot

Storage: The front tray can hold up to 8 2.5-inch NVMe/SAS/SATA SSD drives with a capacity of up to 122.88TB; it can also be configured with up to 16 E3.S NVMe direct drives, with a capacity of 122.88TB as well.
Controller: The storage controller is PERC H965i (not supported by Intel Gaudi3 configuration), and the internal boot uses Boot Optimized Storage Subsystem (NVMe BOSS-N1) with HWRAID 1 and 2 M.2 SSDs.

System & Expansion

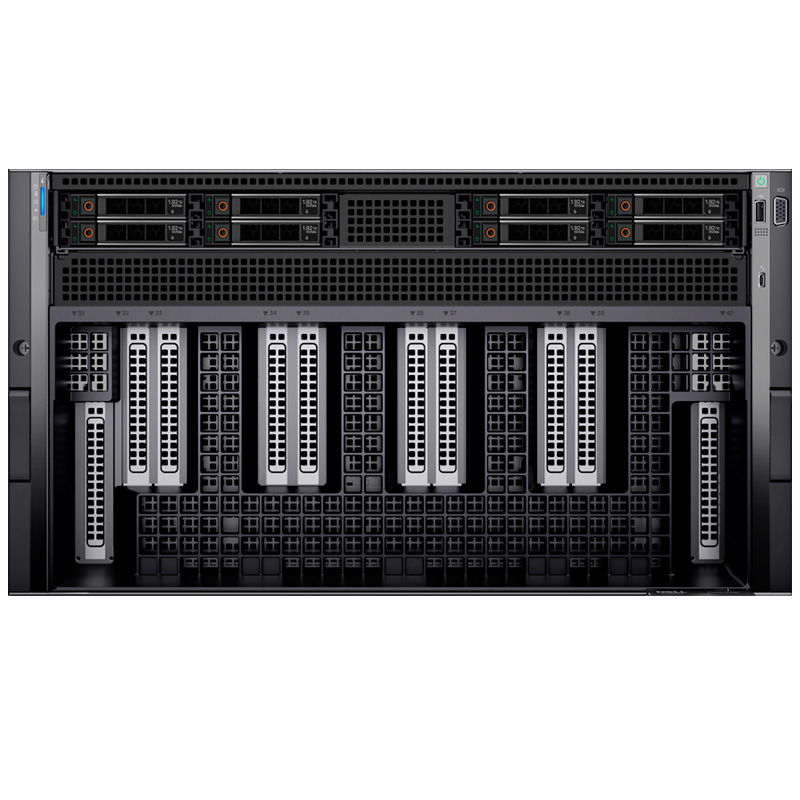

Slots: Equipped with up to 10 x16 Gen5 (x16 PCIe) full-height, half-length slots, but Intel Gaudi3 configuration only supports 8 PCIe slots.
Power Supply: Uses 2800W titanium-level 200-240VAC or 240VDC redundant power supplies.

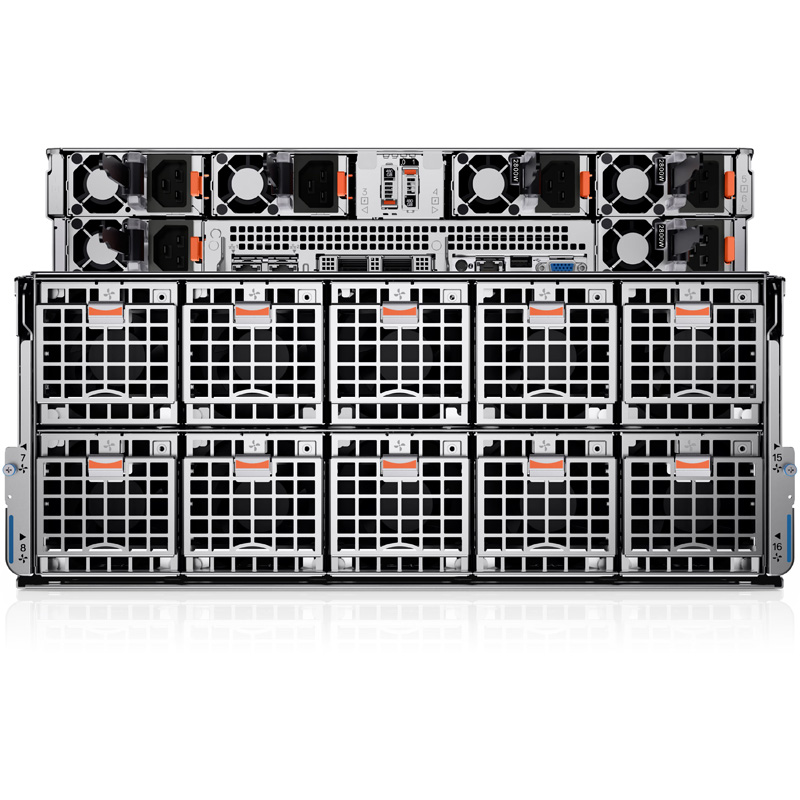

Heat Dissipation: Up to 6 gold-level high-performance (HPR) fans in the middle tray, and up to 10 on the back. Intel Gaudi3 configuration supports up to 12 hot-swappable fans.
Dimensions & Weight: Height 10.36 inches (263.20 mm), width 18.97 inches (482.00 mm), depth 39.71 inches (1008.77 mm) (including bezel), weight up to 114.05 kg (251.44 lbs).
OS Support: Canonical Ubuntu Server LTS, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi.

Product Parameters

Technical Specifications
Product name	PowerEdge XE9680
CPU	Intel Xeon 8468 * 2
Memory	64G * 32
HDD	7.68T SSD * 2
RD	/
Power Supply	Available in 2800W titanium 200-240VAC or 240VDC redundant power supply
GPU Support	* Accelerator: A variety of options are available, including 8 (HGX H100 80GB) 700W SXM5 GPUs fully interconnected with technology, 8 (HGX H200 141GB) 700W SXM5 GPUs, 8 AMD Instinct MI300X 192GB 750W OAM accelerators, etc. Only the version with 8 (HGX H20 96GB) 500W SXM5 GPUs is available in Chinese mainland and the Hong Kong Special Administrative Region of China.
PCIE Slots Supported	* Slots: Equipped with up to 10 x16 Gen5 (x16 PCIe) full-height, half-length slots, but Intel Gaudi3 configuration only supports 8 PCIe slots.
