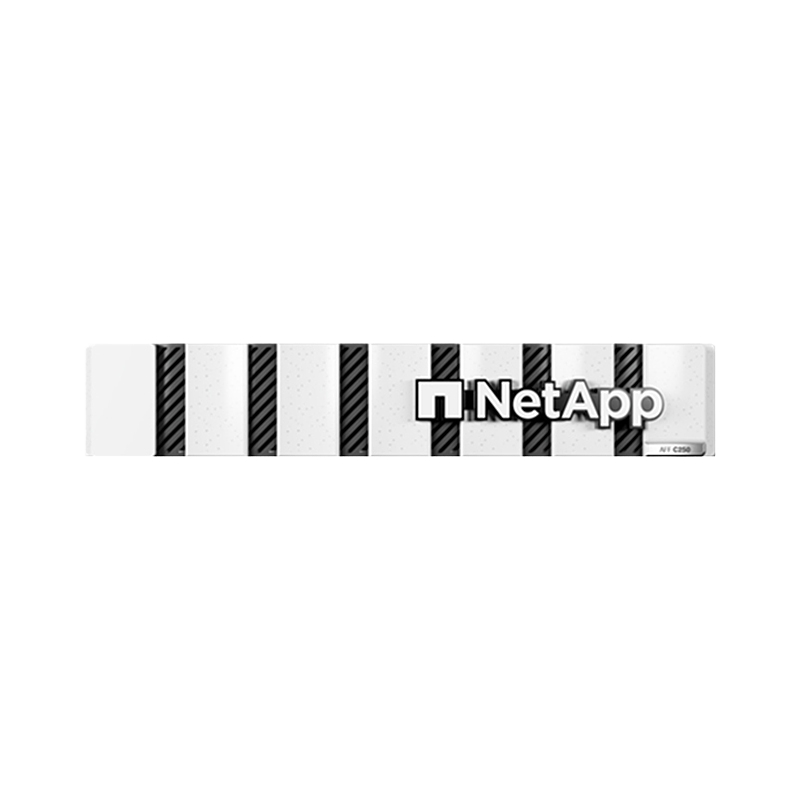

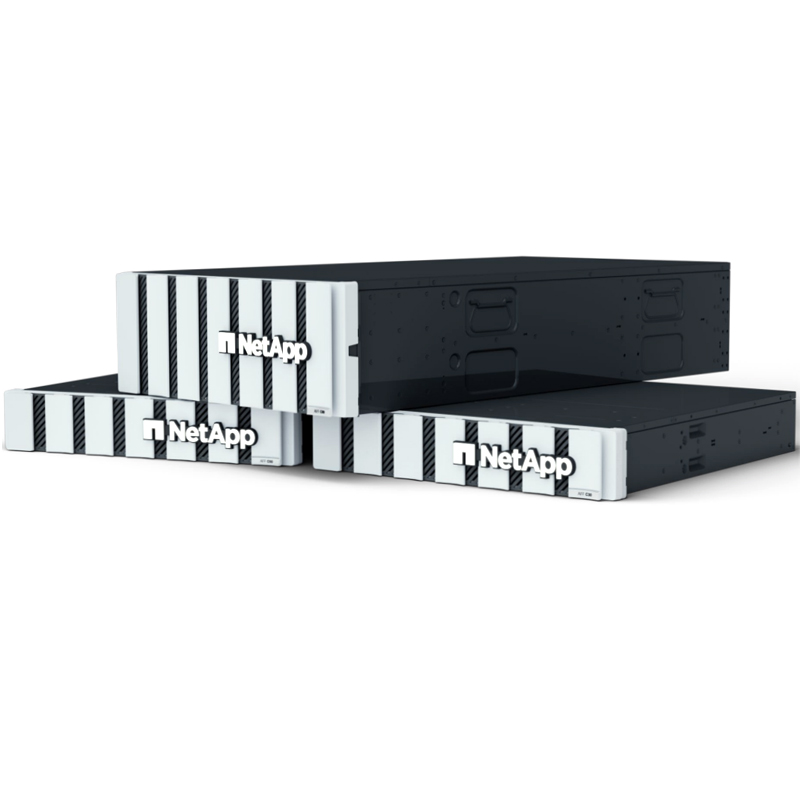

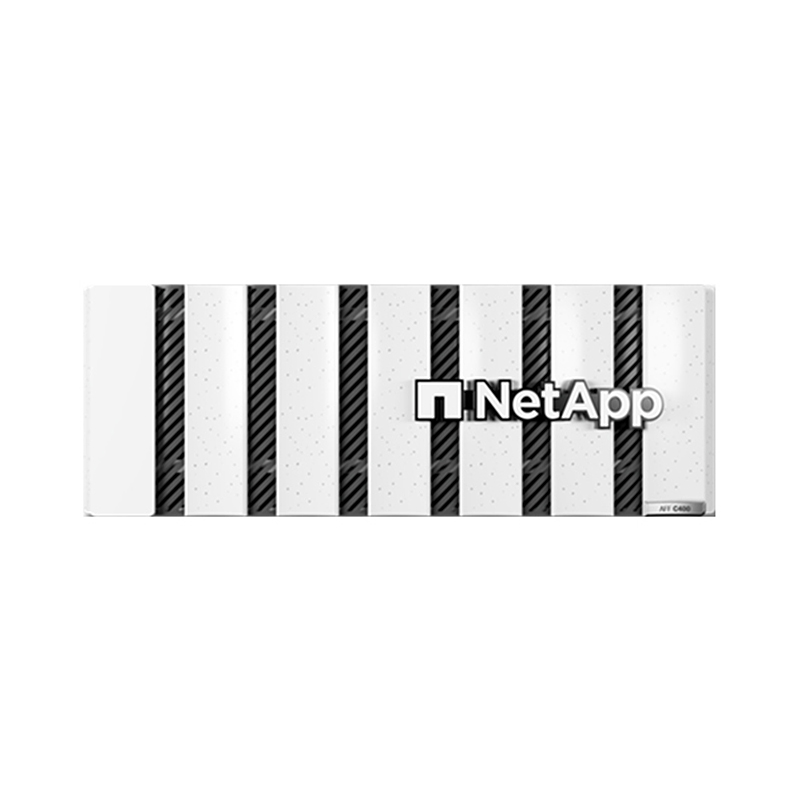

NetApp AFF C30 All Flash Storage Solution with USB Interface for Networking Storage

Product Description

Netapp AFF C30 All-Flash Storage
AFF C Series storage is a sustainable, scalable, and secure solution for tier 1 and tier 2 applications. It combines the high performance of flash products with large capacity, making it the most affordable all-flash series on the market. It is ideal for transitioning from hybrid/HDD to all-flash storage, running database applications, and managing file environments based on virtualization platforms.
S
Sustainable
Reduce TCO and energy costs while simplifying operations. Using next-generation flash can save up to 95% of rack space and 85% of power and cooling costs compared to hybrid storage.
E
Scalable
Scale capacity and performance incrementally as your data grows. Expand capacity and eliminate storage silos by non-disruptively scaling out across a cluster from 122 TB to over 700 PB.
P
Security
Defend against threats such as ransomware with application consistency. Leading data security features enable excellent business continuity and effectively reduce losses in the event of a disaster.

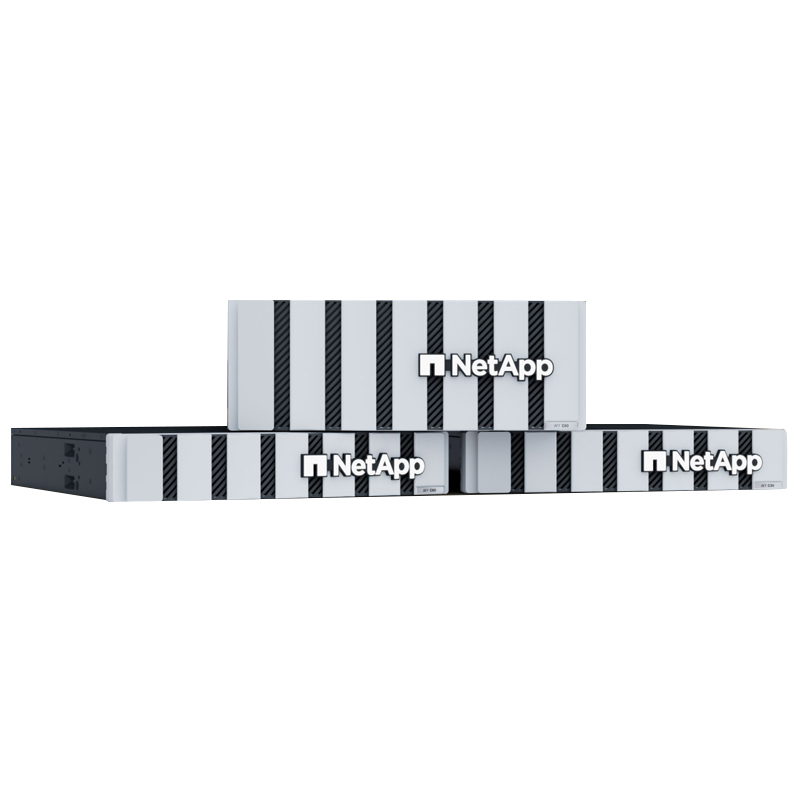

Maximize Density and Efficiency
Ultra-dense capacity flash combined with NetApp deduplication and data compression delivers exceptional storage density without sacrificing performance. The AFF C-Series eliminates inefficient islands of storage, reducing storage sprawl, improving performance, and significantly reducing energy consumption.
ONTAP Unified Storage Operating System
ONTAP® software provides support, which can provide effective and safe services in different environments. Data management and consistent access to data services are simplified through a unified experience, eliminating infrastructure silos and data bottlenecks. It allows you to manage across mixed clouds covering flash, disk, and running block, file, and object workloads.
Technical Specifications
Maximum scale-out2 to 8 nodes (4 HA pairs)
Maximum number of SSDs288
Maximum effective capacity29.4PB
Controller chassis appearance2U; 24 internal SSD slots
Power consumption (median)628W
PCIe expansion slots8
FC target port (64 GB)24
100GbE port16
25GbE port24
10Gbase-T24
Storage network supportNVMe/TCP, NVMe/FC, FC, iSCSI, NFS, pNFS, CIFS, SMB, S3
Operating system versionONTAP 9.16.1 or later
Frequently Asked Questions
Q1: What makes the NetApp AFF C-Series unique? A: It is the most affordable all-flash series on the market, offering high flash performance with large capacity, ideal for tier 1 and tier 2 workloads.
Q2: How does the AFF C30 help in reducing energy costs? A: By modernizing from hybrid flash to all-flash, it can save up to 85% of power and cooling costs and 95% of rack space.
Q3: Does the system support cloud integration? A: Yes, it allows for automatic tiering of cold data to the cloud, saving up to 70% on storage costs while maintaining high performance for active data.
Q4: What are the security features against ransomware? A: It features built-in AI/ML-based ransomware detection with over 99% accuracy, providing real-time protection and guaranteed recovery capabilities.
Q5: Which protocols are supported by the AFF C30? A: It supports a wide range of protocols including NVMe/TCP, NVMe/FC, FC, iSCSI, NFS, pNFS, CIFS, SMB, and S3.
Q6: What is the maximum scalability of the system? A: The AFF C-Series can scale from 122 TB up to over 700 PB of effective capacity in a cluster environment.
