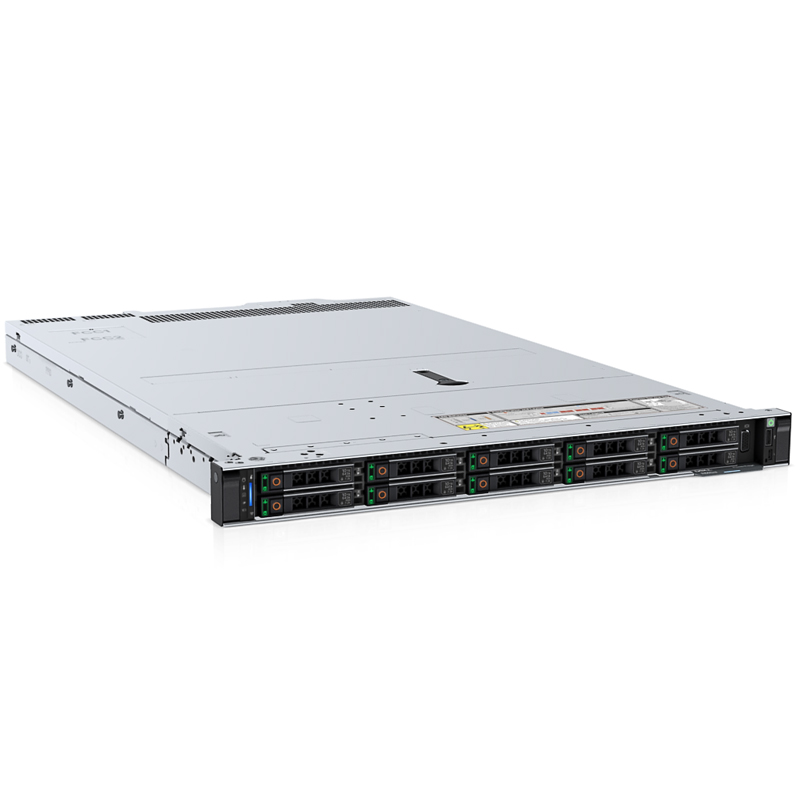

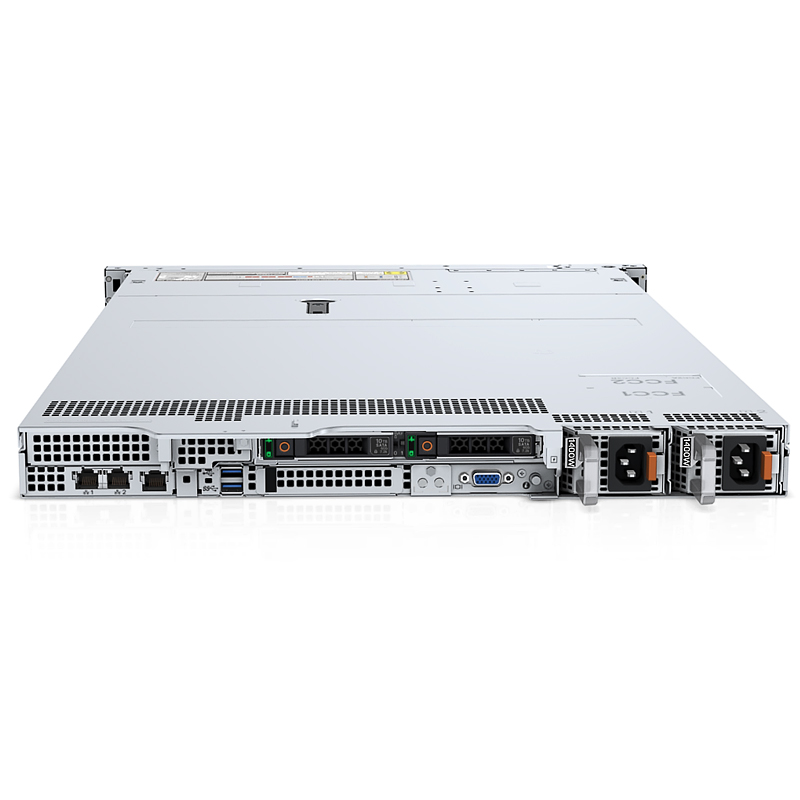

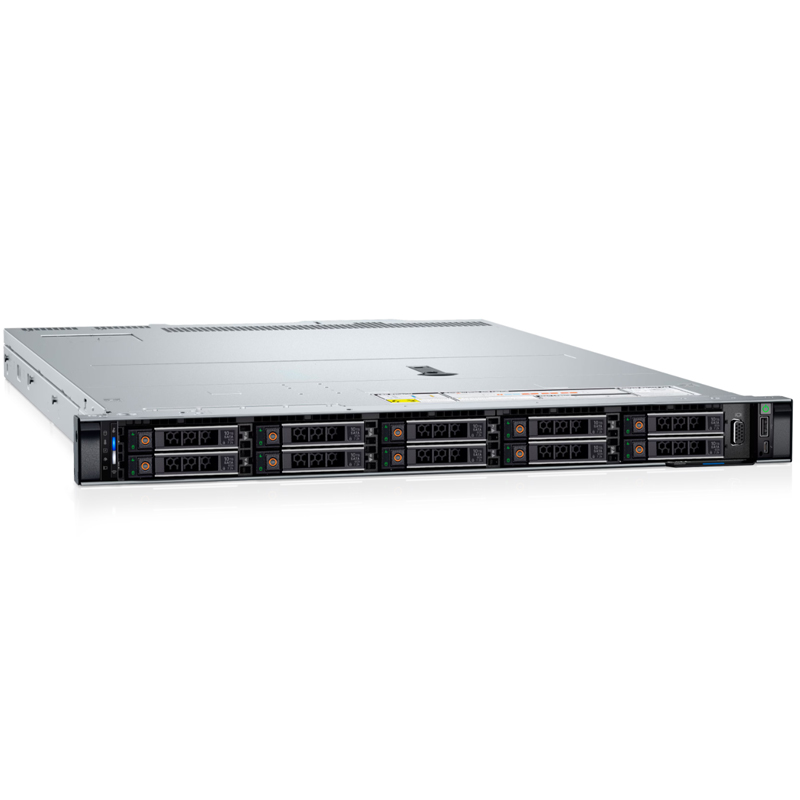

Appearance: It features a 1U rack-mount design with dimensions of 42.8 mm in height, 482 mm in width, and 772.11 mm in depth, and a maximum weight of 21.2 kg. The front has 1 iDRAC Direct (Micro-AB USB) port, 1 USB 2.0 port, and 1 VGA port, while the back includes 1 dedicated iDRAC Ethernet port, 1 USB 3.0 port, 1 USB 2.0 port, 1 serial (optional) port, and 1 VGA port (optional for direct liquid cooling configuration).
Supports 2 fourth-generation Xeon CPUs. 32 slots (upgradable to DDR5 eight-channel) can support up to 8TB, with speeds up to 4800MT/s.
8 x 2.5-inch hard drive bays, up to 19.2TB. 4 PCIe 4.0 slots, default 4 multi-expansion slots.
Supports GPU (3 single-slot or 2 x 75W). Hot-swappable power supply (supports redundant 80Plus certification). Supports Windows Server, Ubuntu, Linux, etc.
Configuration: The processor can be equipped with up to two Intel Xeon scalable processors, such as 2 Intel Xeon Bronze 3408U, with a maximum of 56 cores. For memory, it supports up to 32 DDR5 RDIMMs with a maximum speed of 4800MT/s. For storage, traditional storage can be expanded up to 10 2.5-inch SAS/SATA drives, and Gen5 NVMe SSDs can also be used. It comes with a PERC H755 12 Gb/s SAS 8G cache RAID card, supporting RAID 0, 1, 5, 6, 10. There are 3 PCIe slots, standard 2 x 1 GbE ports, 1 optional OCP 3.0 card, and the power supply is dual 800W platinum hot-swappable redundant power.
| model | PowerEdge R660 |
| CPU | Intel 4410y |
| Memory | 16GB DDR5 |
| HDD | 2TB |
