Lenovo ThinkSystem DE6000H Hybrid Storage Array

Abstract

Lenovo ThinkSystem DE6000H is a scalable, hybrid mid-range storage system that is designed to provide high performance, simplicity, capacity, security, and high availability for medium to large businesses. The ThinkSystem DE6000H delivers enterprise-class storage management capabilities in a performance-optimized system with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.

Introduction

The ThinkSystem DE6000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.

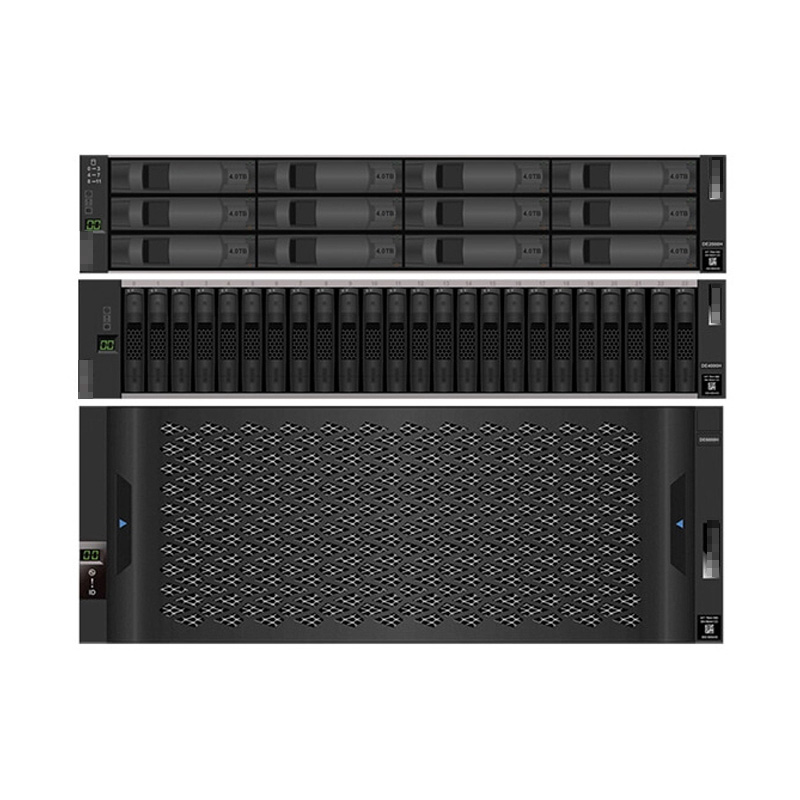

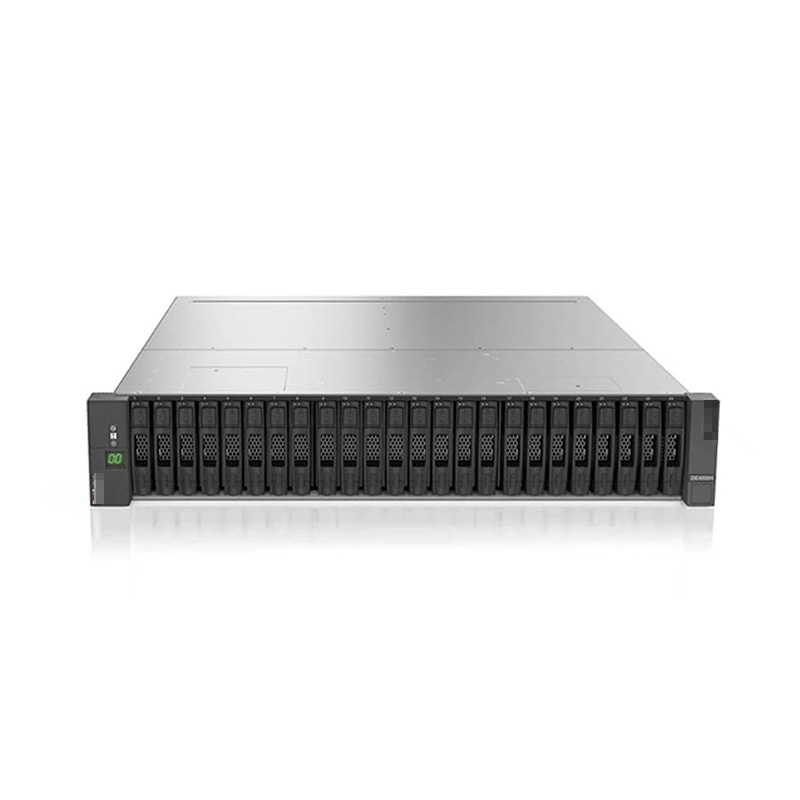

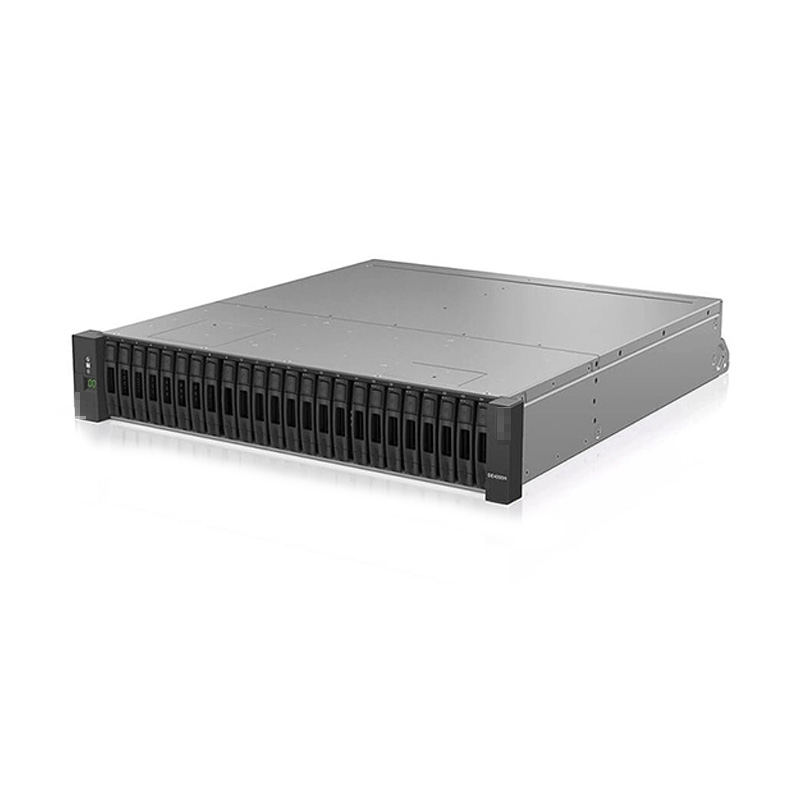

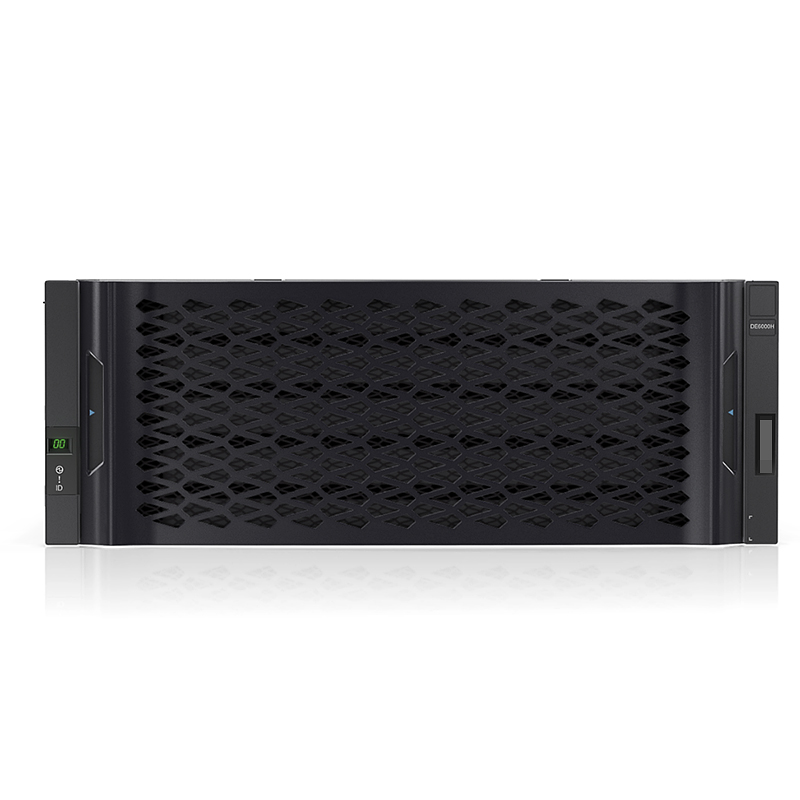

ThinkSystem DE6000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 16 GB or 64 GB system memory for a system total of 32 GB or 128 GB. Host interface cards provide 12 Gb SAS, 10/25 Gb iSCSI, 8/16/32 Gb FC or NVMe/FC, or 25/40/100 Gb NVMe/RoCE host connections.

Key Features & Benefits

• Scalable Performance: Dual active/active controller configurations with up to 128 GB system memory.
• NVMe Support: Faster application response times with support for NVMe over Fabrics.
• Advanced Protection: Dynamic Disk Pools (DDP) technology, plus support for RAID 0, 1, 3, 5, 6, and 10.
• Flexible Connectivity: Supports 10/25 Gb iSCSI, 8/16/32 Gb FC, 12 Gb SAS, and 25/40/100 Gb NVMe/RoCE.
• High Scalability: Base scalability up to 240 LFF drives, upgradable to 480 drives with expansion enclosures.
• Rich Software Suite: Includes Snapshots, Volume Copy, Thin Provisioning, and Encryption at no extra cost.
• Proven Availability: Designed for 99.9999% availability with redundant hot-swap components.

Technical Specifications
