New EMC Connectrix S4128F-ON 1U Network Switch 28 X 10GbE SFP 2 X QSFP28 QoS & SNMP 960Gbps Capacity OS10 Bare Metal Modules

1 / 5

New EMC Connectrix S4128F-ON 1U Network Switch 28 X 10GbE SFP 2 X QSFP28 QoS & SNMP 960Gbps Capacity OS10 Bare Metal Modules

Send Inquiry

Product Description

Dell PowerSwitch S4128F-ON Product Details

🌐

Port Specifications

Network ports: 28 x 10Gigabit Ethernet SFP ports
Uplink ports: 2 x 100Gigabit Ethernet QSFP28 ports
Management ports: 1 RJ45 console (RS232), 1 USB, 1 mini USB

⚡

Performance & Capacity

Backplane switching capacity: 960 Gbit/s
Forwarding rate: 720 Mpps
MAC address table: 272,000 capacity
Latency: Only 800 nanoseconds

📏

Physical Dimensions

Form Factor: 1RU Standard Rackmount
Size: 1.75"H x 17"W x 18"D (4.4cm x 43.1cm x 45.7cm)
Weight: Approx. 19.66 lbs (8.92 kg)

🔋

Power Supply

Input: 100 - 240V AC, 50/60Hz
Max consumption: 260W (Typical: 160W)
Redundancy: 2 Power Supplies supported

Core Architectures & Operations

Cyber Resilient Architecture

Security is integrated into every phase of the lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience.

Autonomous Collaboration

Deliver secure, efficient, and comprehensive management. Simplify, automate and centralize one-to-many management with OpenManage Enterprise console and iDRAC.

Sustainability

Designed with recycled materials and innovative options for energy efficiency to help reduce the carbon footprint and lower operation costs.

Advanced Network Capabilities

Support for ONIE (Open Network Installation Environment) enables zero-touch installation of alternate network operating systems. Full-duplex mode, VLAN, QoS, SNMP, link aggregation, and jumbo frames (up to 9216 bytes) are fully supported.

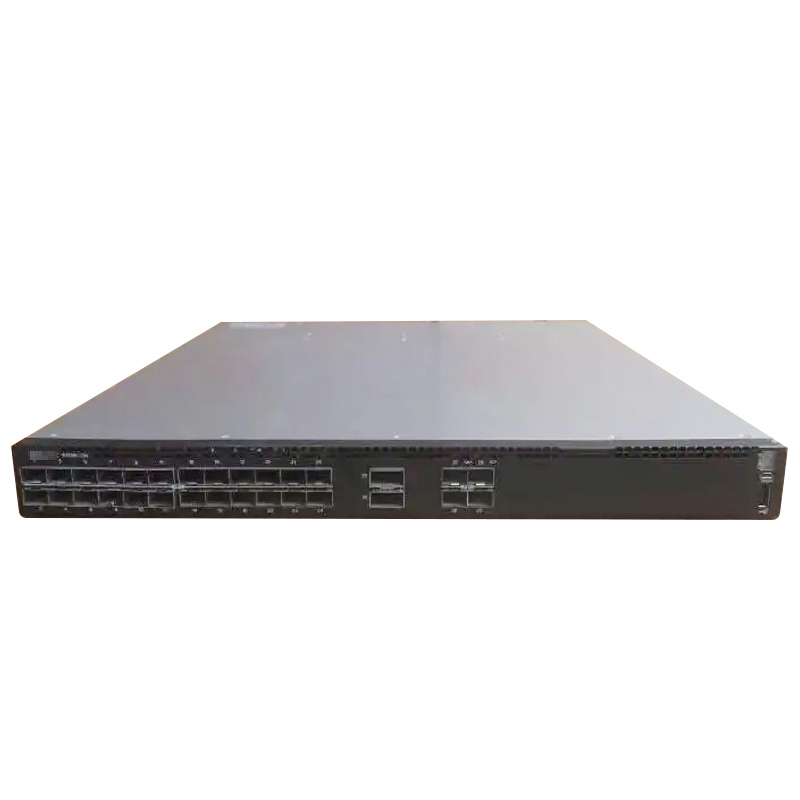

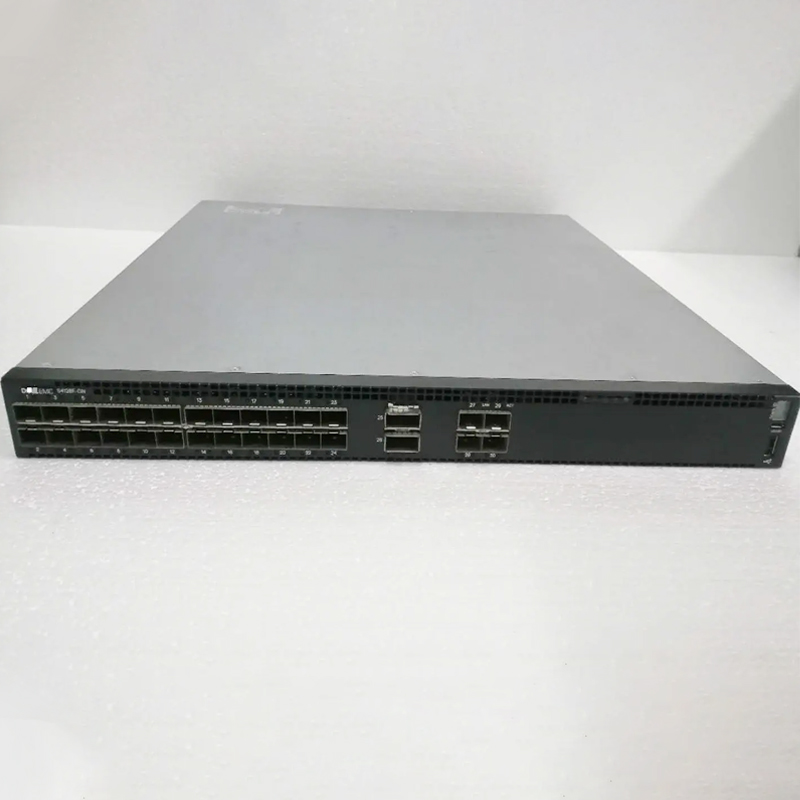

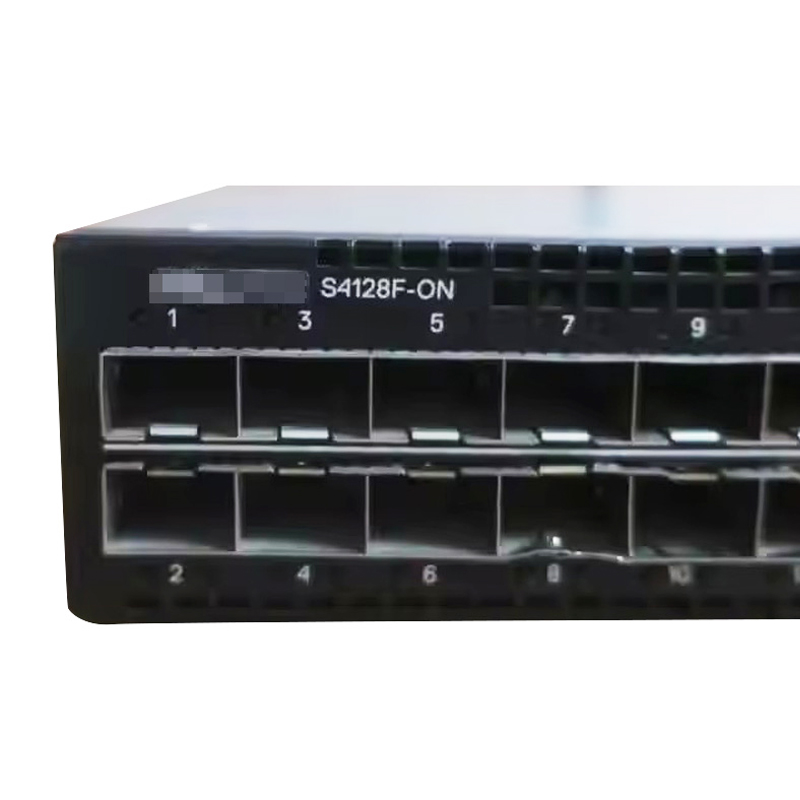

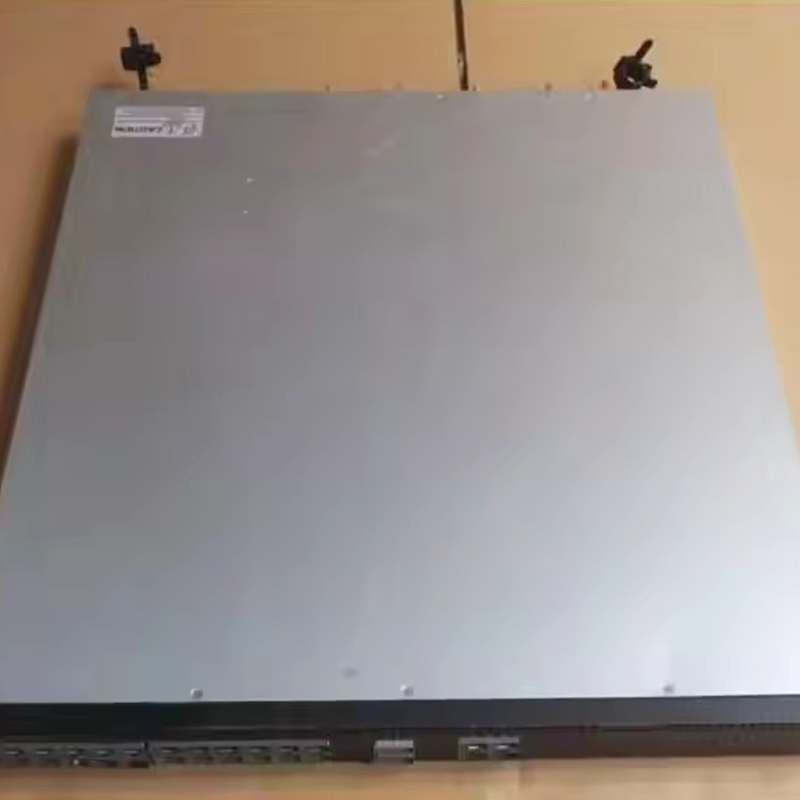

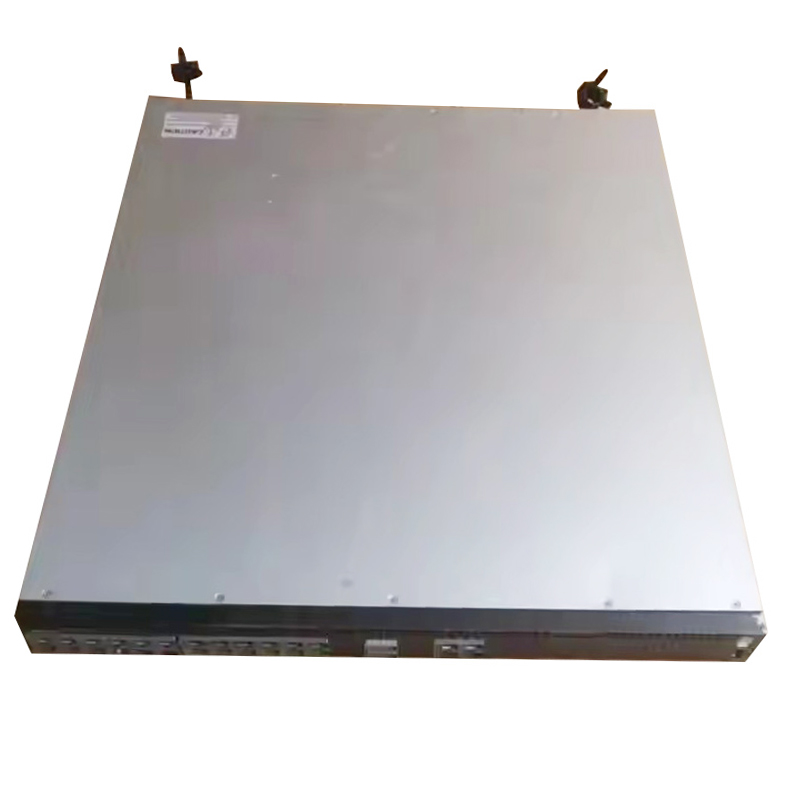

Hardware Display

Frequently Asked Questions

Q1: What are the main port configurations for the S4128F-ON? A1: It features 28 x 10GbE SFP ports and 2 x 100GbE QSFP28 uplink ports, providing high-density connectivity for modern data centers.

Q2: Does this switch support open networking? A2: Yes, it supports ONIE (Open Network Installation Environment), allowing for zero-touch installation of alternate network operating systems.

Q3: What is the switching capacity of this model? A3: The Dell PowerSwitch S4128F-ON has a backplane switching capacity of 960 Gbit/s and a forwarding rate of 720 Mpps.

Q4: What are the power requirements? A4: It operates on 100-240V AC and supports redundant power supplies with a maximum power consumption of 260W.

Q5: What management features are included? A5: It supports VLAN, QoS, SNMP, link aggregation, port mirroring, and SSH/SSL security, and is compatible with OpenManage Enterprise and iDRAC.

Q6: Is the switch suitable for a standard rack? A6: Yes, it features a 1U standard rackmount design, fitting perfectly into a 19-inch rack to save space.

Product Detail

New EMC Connectrix S4128F-ON 1U Network Switch 28 X 10GbE SFP 2 X QSFP28 QoS & SNMP 960Gbps Capacity OS10 Bare Metal Modules

Product Description
