High-performance Fibre Channel connectivity for enterprise storage environments.
Number of Ports: Up to 64 ports, with 24 ports active by default, expandable with Port on Demand (PoD) licenses, up to 48 SFP ports and 4 QSFP ports activated.

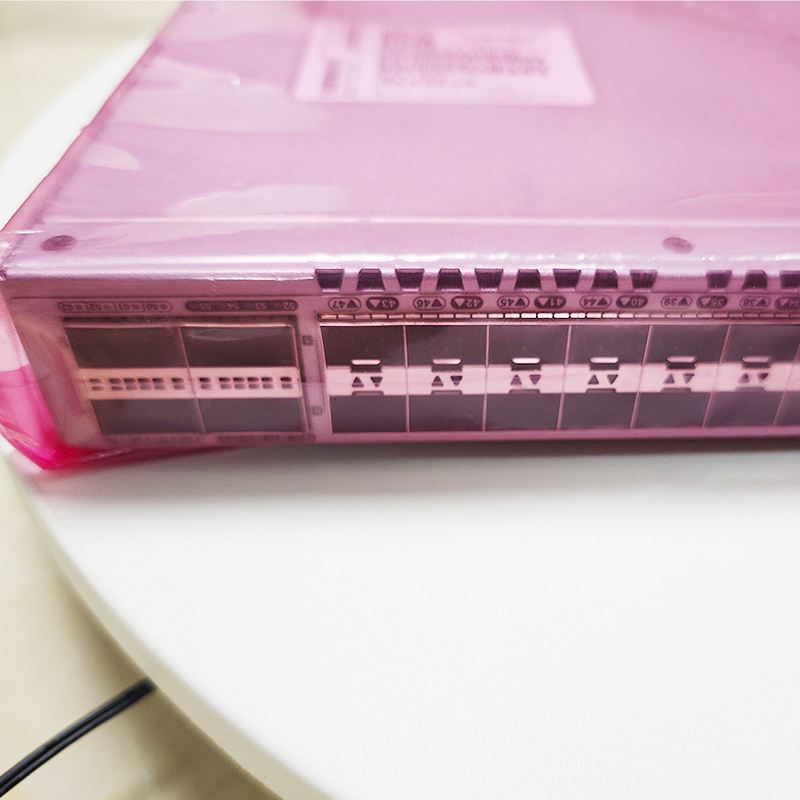

Port Types: 48 SFP ports at 32Gb/s and 4 QSFP ports at 32Gb/s.
Port Density: Provides high port density in a 1U form factor for dense Fibre Channel connectivity in a relatively small footprint.
Transmission Rate: Supports Fibre Channel (FC) transfer rates of up to 32Gb/s, suitable for bandwidth-critical application scenarios like SAN data backup and server virtualization.
Backplane Bandwidth: Sufficient to ensure no congestion during simultaneous high-speed data exchange across multiple ports.
Packet Forwarding Rate: High packet forwarding rate to quickly process network packets, reduce delay and packet loss, and optimize performance.
Power Supply: Equipped with dual hot-swappable power supply units, ensuring system reliability and uninterrupted operation during replacements.

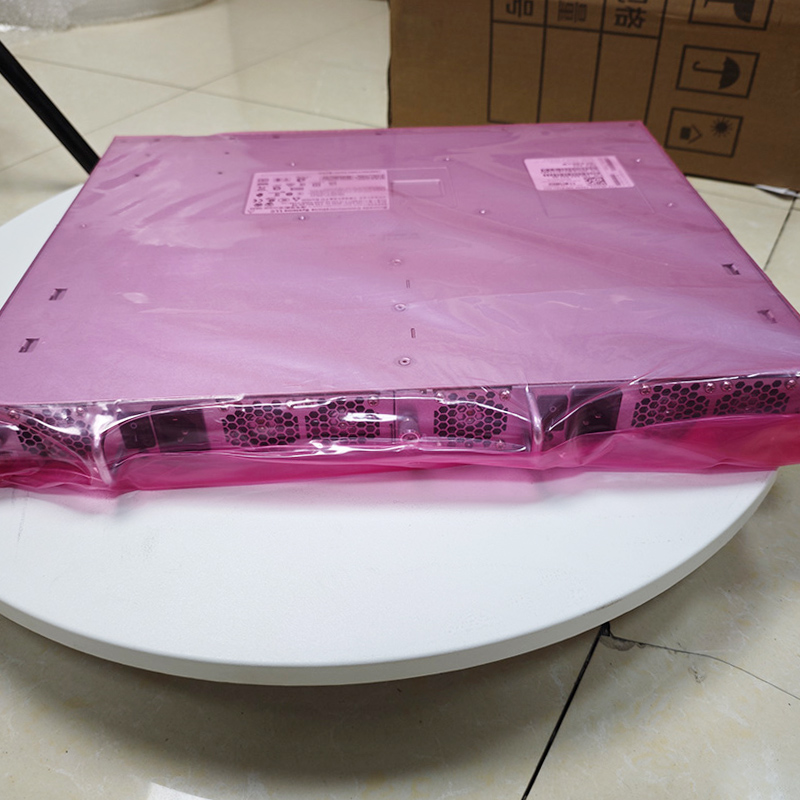

Cooling System: 3 built-in embedded fans provide efficient heat dissipation to maintain stable operating temperatures under high workloads.
Form Factor: Standard 1U rackmount design, typically measuring 442×476×175mm (W×D×H) for easy installation in standard 19-inch racks.
Product Weight: Weighs less than 14kg, facilitating easy handling and installation.
Management: Web tools, consoles, Telnet, SSH, and SNMP v1/v2c/v3 support for remote administration.
Security: Access Control Lists (ACLs), port security, and 802.1x authentication.
Virtualization: Support for Multi-Path I/O (MPIO) to enhance reliability and storage access performance.
Advanced Capabilities: Fabric Vision for advanced diagnostics; expansion fabric support; ISL trunking to aggregate multiple physical links.
Operating Temperature: 0°C to 50°C
Operating Humidity: 10% to 90% (non-condensing)
Storage Temperature: -5°C to 55°C
Storage Humidity: 10% to 90%
Security integrated throughout the lifecycle, utilizing protected supply chains and silicon-based root of trust to anchor end-to-end boot resilience. Multi-Factor Authentication (MFA) and role-based access control ensure trusted enterprise operations.
Simplify, automate, and centralize management tasks using comprehensive console operations. Deliver secure, efficient, and cohesive systems management designed to match modern infrastructure performance requirements.
Designed from recycled materials and engineered for energy efficiency. The architecture helps minimize power draws, reducing carbon footprints while lowering overall operational costs in dense datacenter environments.
Port Capacity: Up to 64 ports, with 24 active ports standard. Licenses enable scalability up to 48 SFP ports and 4 QSFP ports.
Data Capacity: Supporting transfer rates up to 32 Gb/s. When running all ports concurrently at full capacity, total data transfer can scale up to 1792 Gb/s, using the 4x4 configuration equivalence of QSFP to SFP interfaces.
