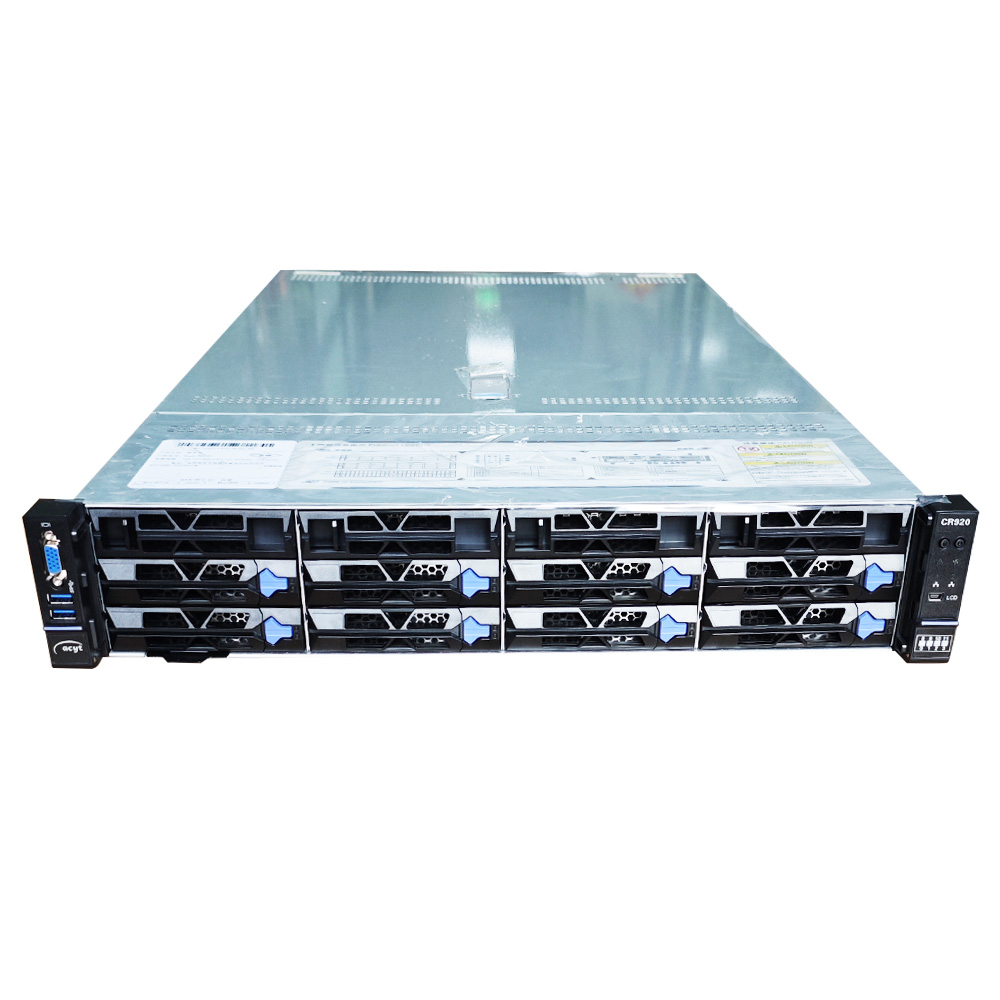

CR740 2U Rack Server - Aiming at the needs of the enterprise market, we independently developed a dual-core universal rack-mount server. The whole machine adopts a modular design, which is conducive to heat dissipation and maintenance, and the product is stable and reliable. It has a wide range of applications, such as big data analysis, virtualization, hyper-converged cloud computing, small and medium-sized databases, etc. It is particularly suitable for telecommunications, government, Internet, etc.
The dual-core general-purpose server developed based on the Intel Purley platform supports Intel Xeon Scalable Processor Series, has been comprehensively upgraded in terms of core, frequency, cache, and interconnection channels, uses DDR4 memory technology, supports 9.0TB memory expansion capability, and can be expanded on demand to meet a variety of different applications.
Support node management technology to achieve power capping and control energy consumption. Support high-voltage direct current (HVDC) technology, high power conversion efficiency, energy saving and environmental protection, saving users' electricity expenses, and improving energy utilization. Optional power modules of different specifications such as 550W/800W/1300W/1600W, optional 220v AC/240v DC/336v DC/-48v DC input; onboard iBMC management module, space optimization 2U height server, small footprint.

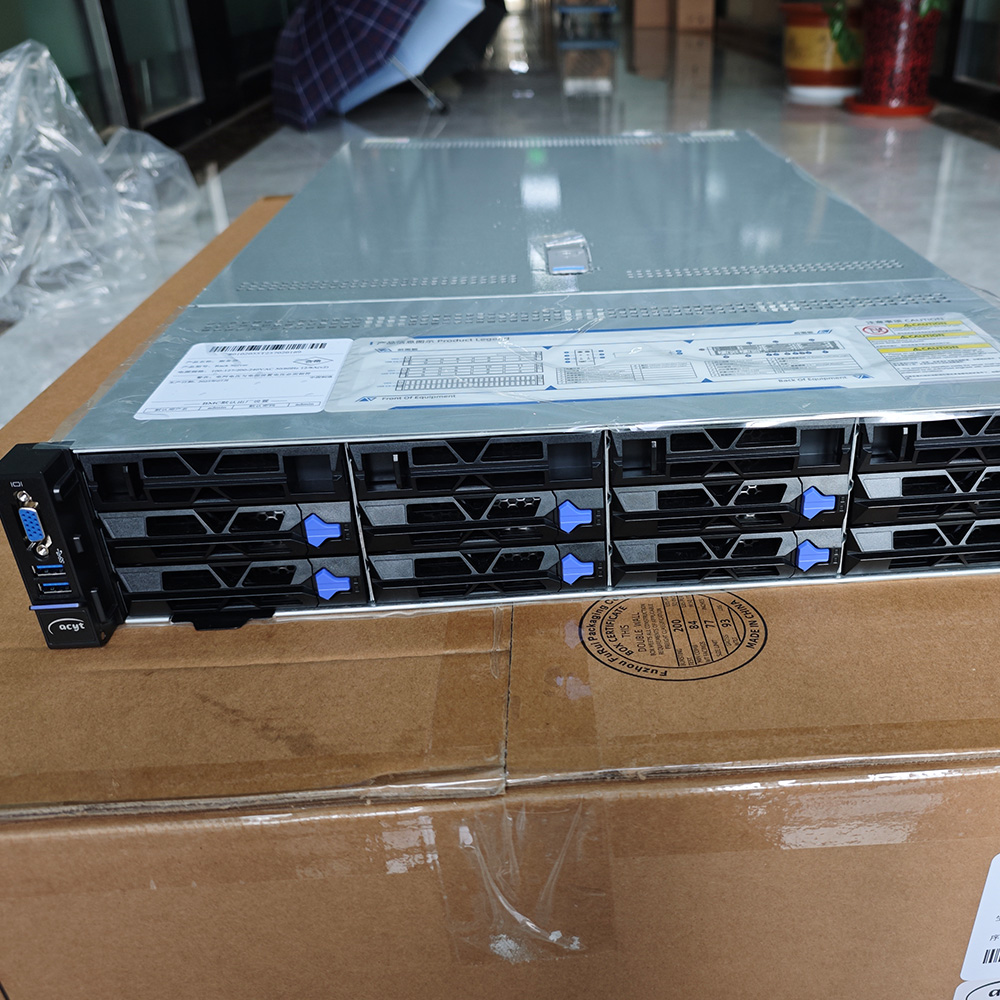

In a standard 2U space, it supports up to 31 2.5-inch or 16 3.5-inch + 2 2.5-inch hot-swappable hard disks/SSDs, providing users with massive data storage capabilities while also providing users with SAS card and RIAD card data protection support; it supports up to 11 PCI-E expansion slots to meet expansion needs.
| Type | 2U rackmount |
| Processor |
• 1/2 1st Generation Intel® Xeon® Scalable Processors, 3100/4100/5100/6100/8100 Series, TDP 205W • 1/2 2nd Generation Intel® Xeon® Scalable Processors, 3200/4200/5200/6200/8200 Series, TDP 205W |
| Chipset | Intel® C621 |
| Memory |

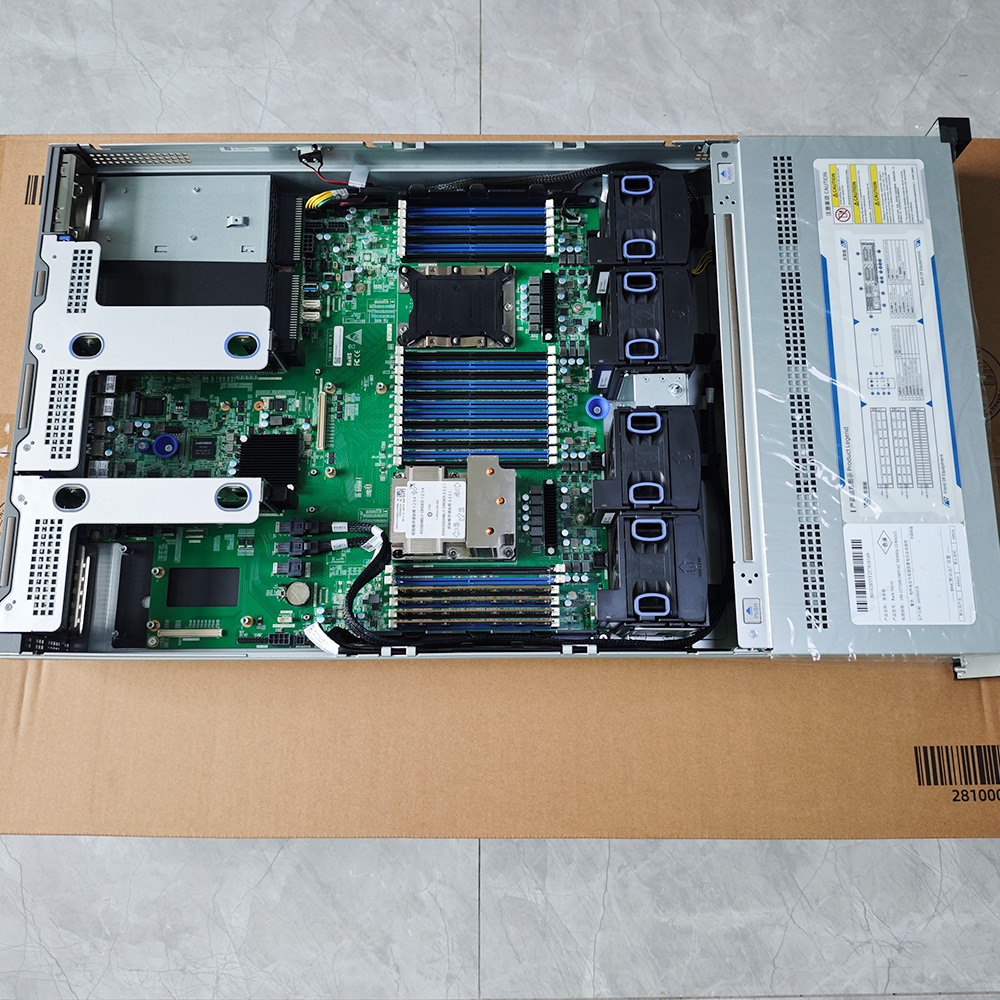

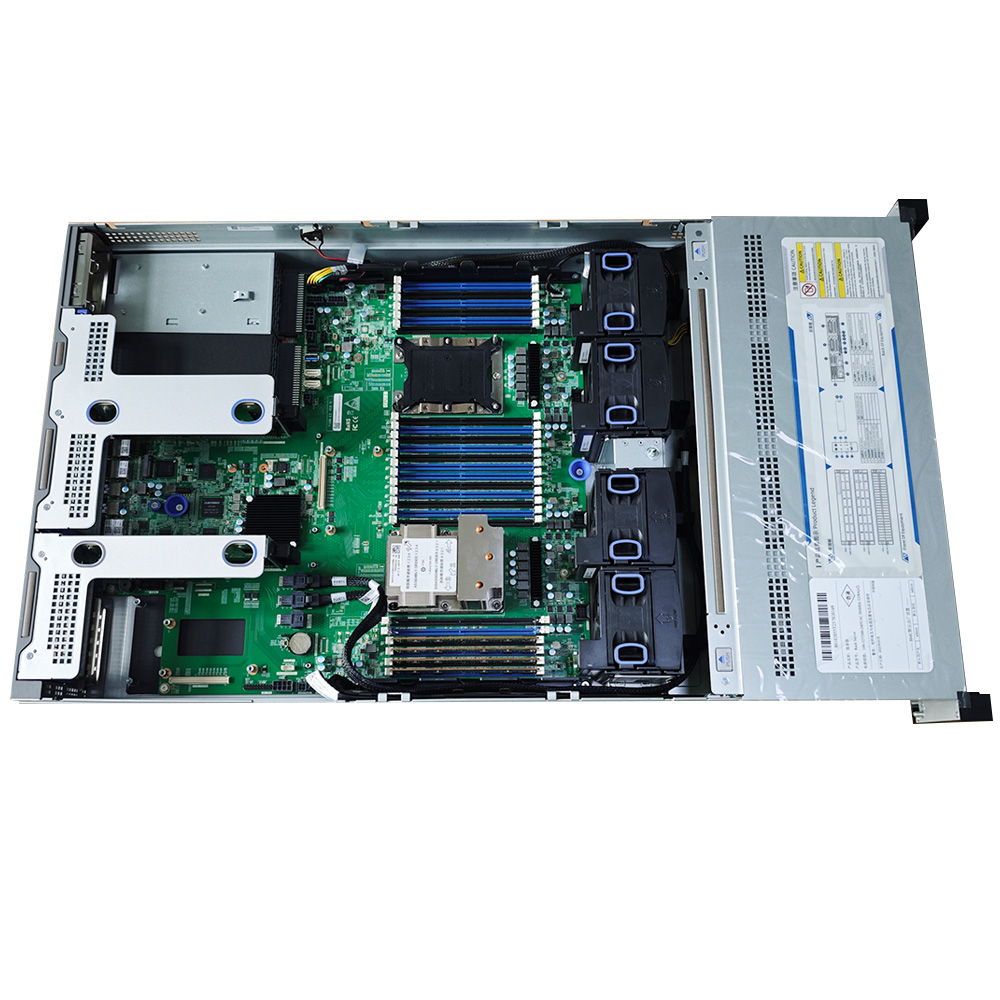

• 24 DDR4 DIMM slots, 12 memory channels • Supports 2 DDR4 RDIMMs/LRDIMMs/NVDIMMs, maximum speed 2933MT/s • Supports 12 Intel DCPMMs, maximum speed 2666MT/s • Single capacity 8GB, 16GB, 32GB, 64GB, 128GB, 256G, 512G • Supports up to 9.0TB system memory (needs to be used with specific CPU models and Intel DCPMM) |
| Storage |
Integrated 6Gb/s SATA controller; Optional support for 12Gb/s SAS HBA, and 12Gb/s SAS RAID controller, support for a variety of hard disk configurations, hard disk support for hot swap: • 16 3.5-inch + 2 2.5-inch SAS/SATA/SSD hard disks can be configured. • 31 2.5-inch SAS/SATA/SSD hard drives can be configured. • 16 2.5-inch NVMe SSD hard drives can be configured. • Support built-in 1 PCIe M.2 (80/110mm) and 2 SATA DOM. |
| PCI-E Expansion | Up to 10 PCI Express 3.0 expansion slots |
| GPU | 2 full-height full-length double-width GPUs |
| Network | Integrated 2 1GbE, optional 2x1GbE/4x1GbE/2x10GbE/4x10GbE/2x25GbE/2x40GbE network daughter cards and various standard PCIe network cards |
| Management | Onboard BMC management module supports remote management and control, such as IPMI2.0, KVM Over IP, SOL, SNMP, etc. Original management software can deploy multiple hosts at the same time or perform specific deployment according to the planned time, monitor the utilization rate of server CPU, memory and other resources, batch log collection, etc. Data center management platform realizes remote multi-functional advanced management; Optional LCD management module; |
| Security | Optional TPM/TCM security module, chassis cover intrusion detection, and locked chassis cover |
| Power Supply | 1 or 2 power modules, supporting 1+1 redundancy and hot plug. Optional 220v AC /240v DC /336v DC /-48v DC input. Optional 550W/800W/1300W/1600 power. |
| Ports |

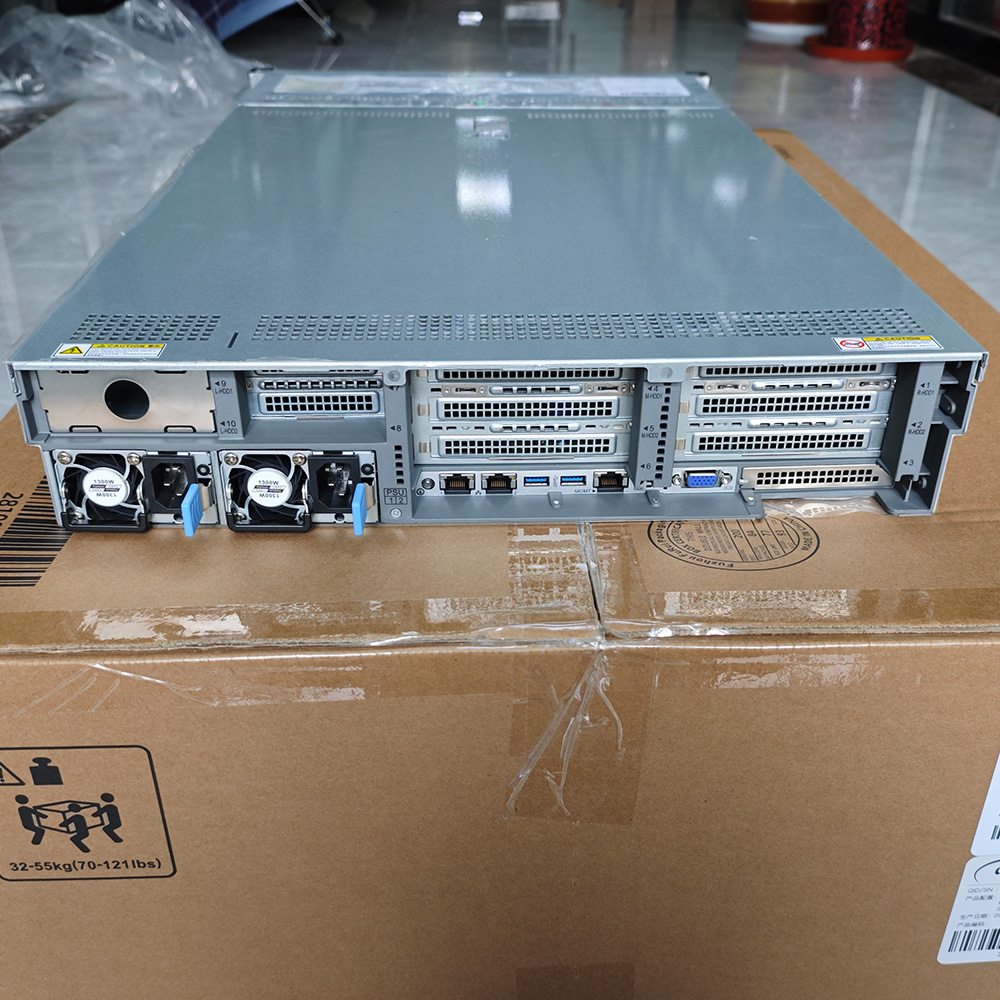

Front: 1 D-Sub VGA, 2 USB3.0 and 1 LCD Mini USB. Rear: 1 D-Sub VGA, 2 USB3.0, 1 RJ45 management network port and 2 RJ45 Ethernet ports. |
| System Fan | 4 8038 or 8056 system fans, N+1 redundant fans, hot-swappable |

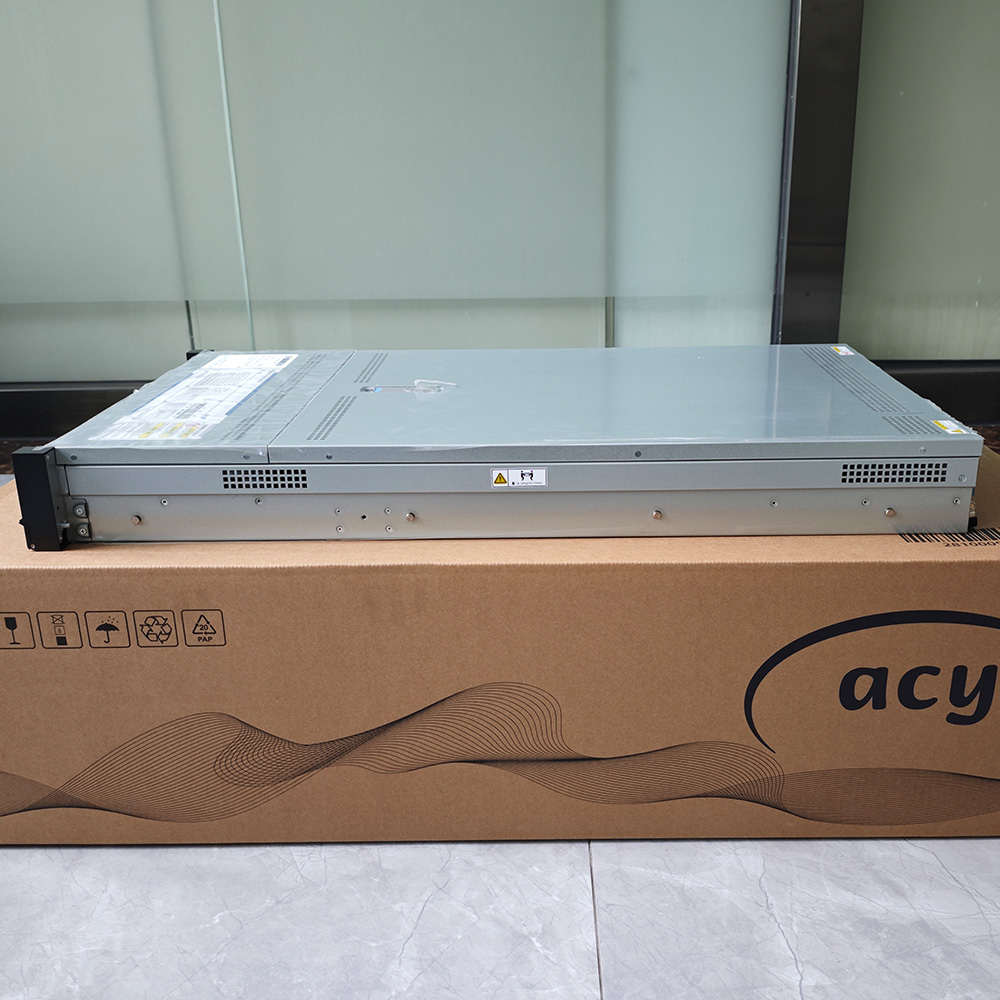

| Size | Rack-mounted 2U, width 447mm x height 87mm x depth 808mm (788mm without mounting ears) |
| Weight | The net weight of the full configuration is about 32KG, and the full configuration including the guide rail, accessories and packaging is about 40KG |
| Temperature |
• Standard working temperature: 5°C to 35°C (without direct light) • Extended working temperature: 5°C to 40°C (limited configuration meets) • Transportation and storage temperature: -40°C to 65°C |
| Humidity |
• Operating humidity: 10% to 80% (non-condensing) • Storage humidity: 5% to 95% (non-condensing) |
| Operating System | Microsoft Windows Server, Microsoft Hyper-V Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, Fedora, Solaris, Oracle Linux, FreeBSD, VMware ESXi, Citrix XenServer |
