NF5280M6 2U Rackmount Network Server Cloud Storage Server

1 / 5

NF5280M6 2U Rackmount Network Server Cloud Storage Server

Send Inquiry

Product Description

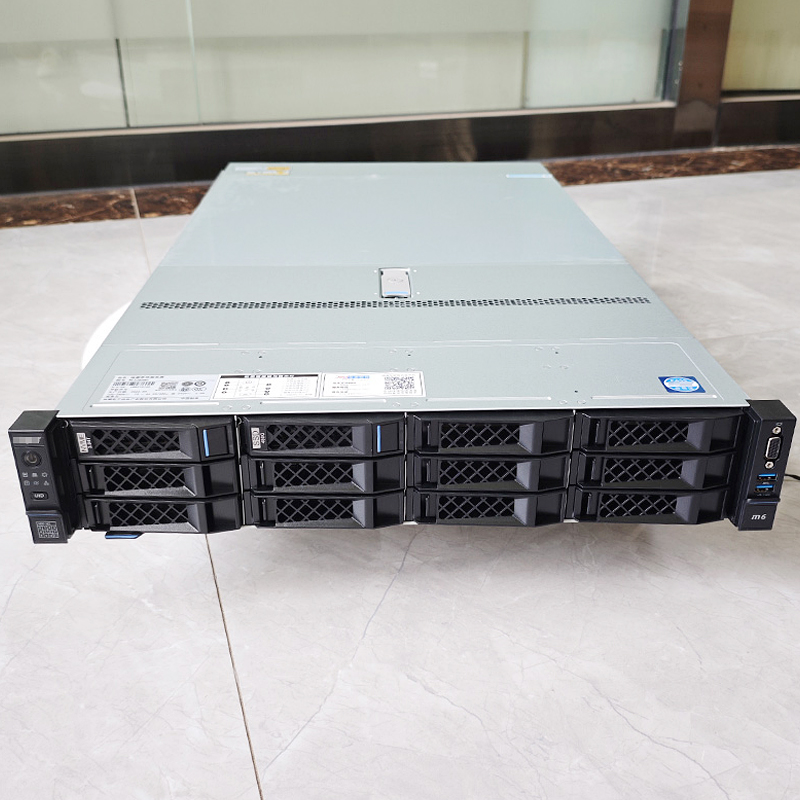

NF5280M6 2U Rack Server

The NF5280M6 / NF5280LM6 is a flagship dual-socket general-purpose rack server powered by 3rd Gen Intel® Xeon® Scalable processors. It offers flexible configurations with both air-cooled (NF5280M6) and liquid-cooled (NF5280LM6) options, maintaining high reliability and performance to meet diverse industrial requirements. The liquid-cooled model features cold plate technology, assisting in building energy-efficient, low PUE green data centers.

🚀

Strong Performance

Supports 2 Ice Lake processors (up to 270W TDP) with 40 cores per CPU. Features 32 DDR4 ECC memory slots (3200MT/s) supporting up to 8TB capacity. Compatible with DCPMM memory to ensure data persistence during power loss without sacrificing bandwidth.

⚙️

Flexible Expansion

Accommodates up to 20x 3.5" or 45x 2.5" hard disks, and up to 32 NVMe SSDs. Supports OCP 3.0 modules (10G to 200G) and up to 13 standard PCIe slots for superior I/O performance and diverse storage needs via M.2/RSSD modules.

🧠

Intelligent Management

Tool-free maintenance and structural optimization improve O&M efficiency. Features advanced air cooling and BMC technology for remote Web management, fault diagnosis, and leakage detection with automatic power-off safety protocols.

Technical Specifications

Form Factor/Height	2U rack-mount server
Processor	Supports two 3rd Gen Intel® Xeon® Scalable processors, TDP 270W
Chipset	Intel® C621A chipset
Memory	Up to 32 slots, 8 channels per CPU, 3200MT/s. Supports RDIMM, BPS, ECC, and Mirroring
Drives	Front: 12x 3.5"/2.5" SATA/SAS/NVMe; Rear: Up to 4x 3.5"/2.5" SATA/SAS/NVMe SSD
Expansion Slots	Up to 11-13 standard PCIe slots depending on configuration
Network	1x OCP3.0 (10G-200G), dual 10Gb onboard ports, supports standard 1G-200G cards
Power Supply	1+1 redundant 550W/800W/1300W/1600W/2000W CRPS standard
Management	Integrated independent 1000Mbps IPMI remote management interface
OS Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux, CentOS
GPU Support	4 double-width GPUs or 8 single-width GPUs

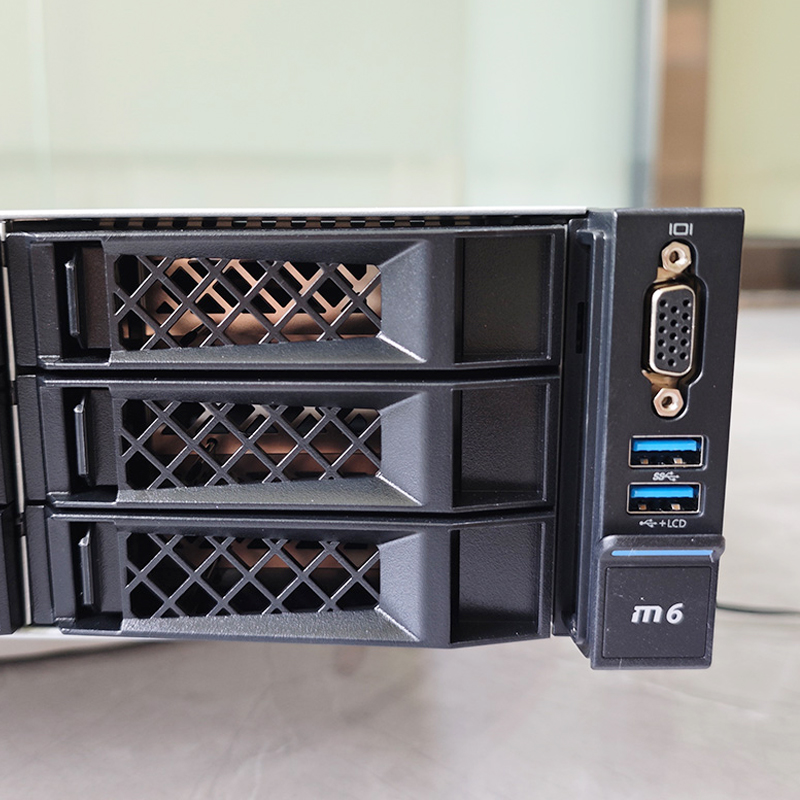

Ports	3x USB 3.0, 1x USB 2.0, 2x VGA (front/rear)

Frequently Asked Questions

❓ What range of products do you offer?

We provide a comprehensive range of IT infrastructure including Servers, Storage systems, Workstations, Memory modules, Hard Disks, and specialized computing hardware.

❓ Do you support product customization?

Yes, we have a dedicated R&D team that can customize hardware configurations and specifications to meet your specific application requirements.

❓ How do you ensure product quality?

We implement a strict QA and QC system managed by professional engineers to ensure every piece of equipment meets industry standards before shipping.

❓ What is the typical delivery time?

Delivery time depends on the order quantity and customization needs, but typically standard orders are processed within 7 days.

❓ What kind of packaging is used for international shipping?

Standard products are packed in high-durability cartons. We can also provide reinforced or customized packaging based on your specific shipping requirements to ensure safety.

❓ Which regions do you serve?

We serve a global clientele across North America, South America, Europe, Asia, Oceania, and the Middle East, supported by a multilingual team.
