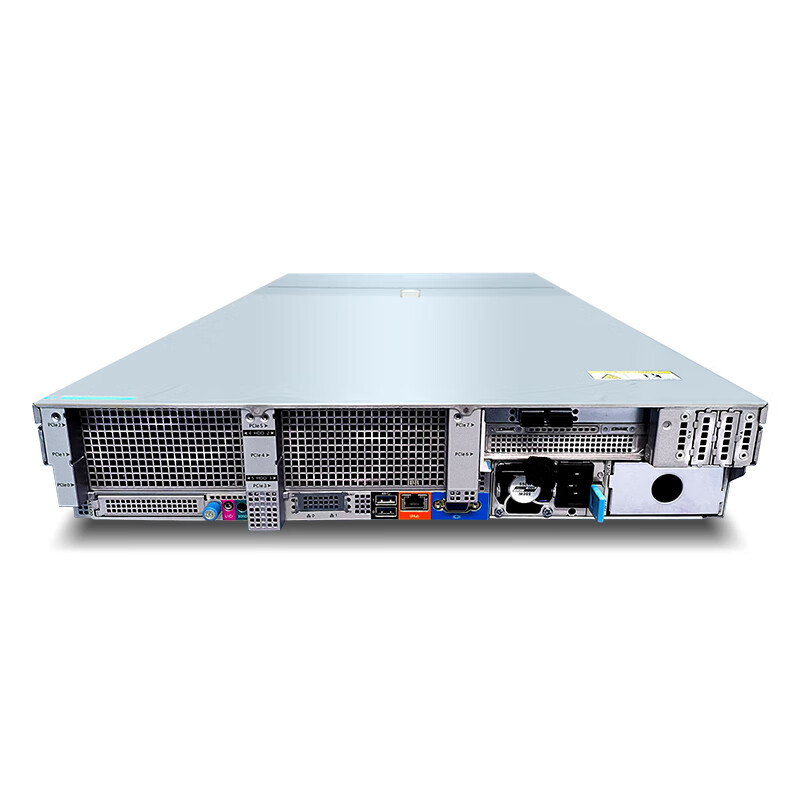

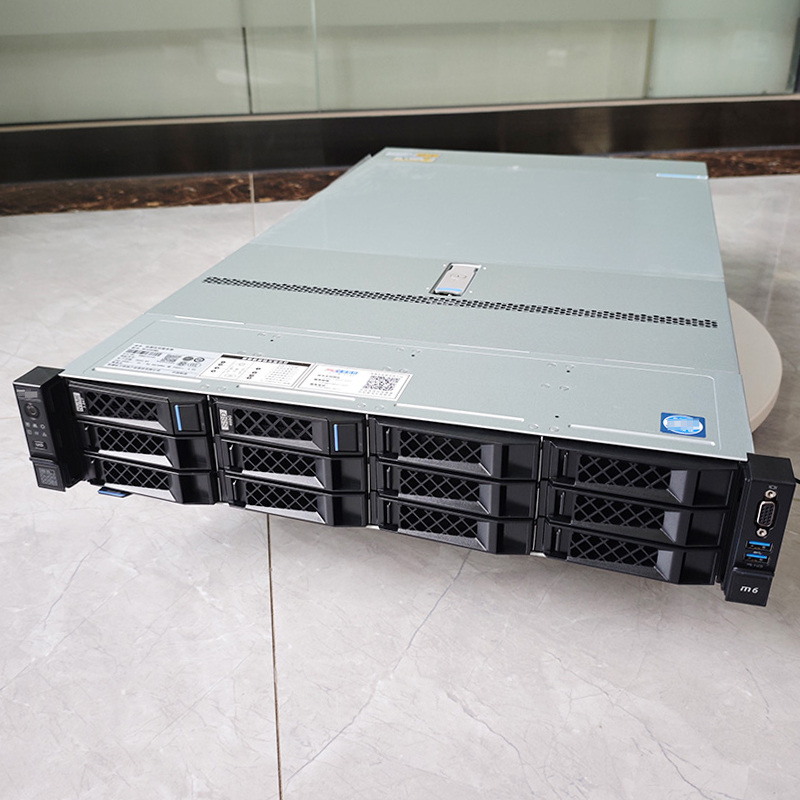

The NF5280M6 / NF5280LM6 is a flagship dual-socket general-purpose rack server equipped with 3rd Generation Intel® Xeon® Scalable Processors. It offers flexible configurations with both air-cooled (NF5280M6) and liquid-cooled (NF5280LM6) options, ensuring high reliability and exceptional computing performance. Designed for diverse industrial applications, its liquid-cooled model supports cold plate heat dissipation, aiding in the creation of energy-efficient, green data centers with low PUE.
Supports 2 Ice Lake processors (up to 270W TDP) and 40 cores per CPU. Features 32 DDR4 ECC memory slots for up to 8T capacity and DCPMM support.
Accommodates up to 20x3.5" or 45x2.5" disks and 32 NVMe SSDs. Supports 13 PCIe slots and OCP 3.0 modules (10G to 200G).
Tool-free maintenance and structural optimization. Features advanced leakage detection and automated BMC diagnostics for high availability.
| Form Factor/Height | 2U rack-mount server |
| Processor | Supports two 3rd Generation Intel® Xeon® Scalable processors, up to 270W TDP |
| Chipset | Intel® C621A chipset |
| Memory | Up to 32 slots; Max speed 3200MT/s. Supports RDIMM, BPS, ECC, and Mirroring. |

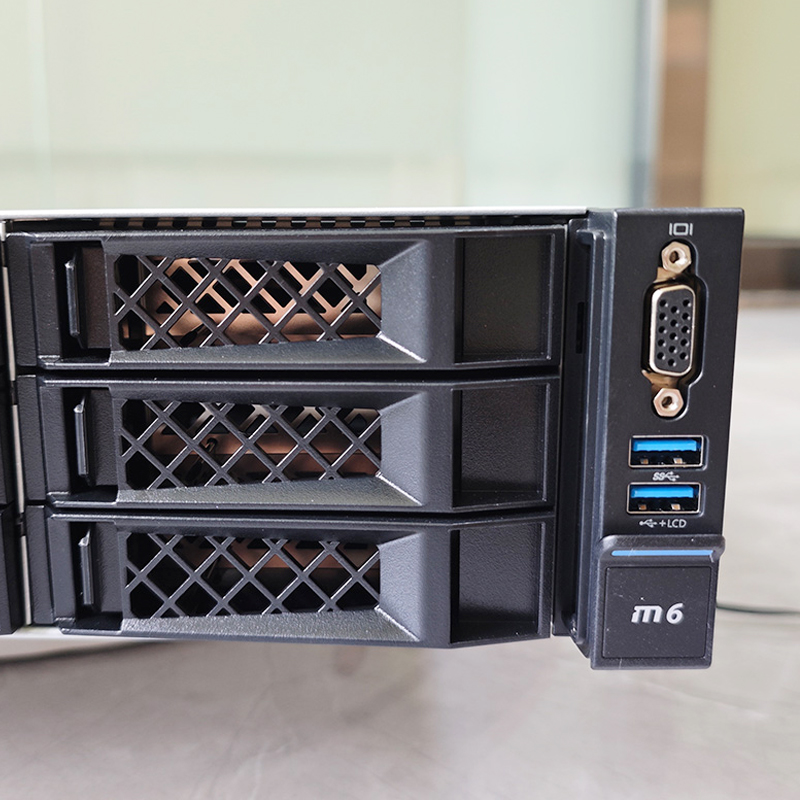

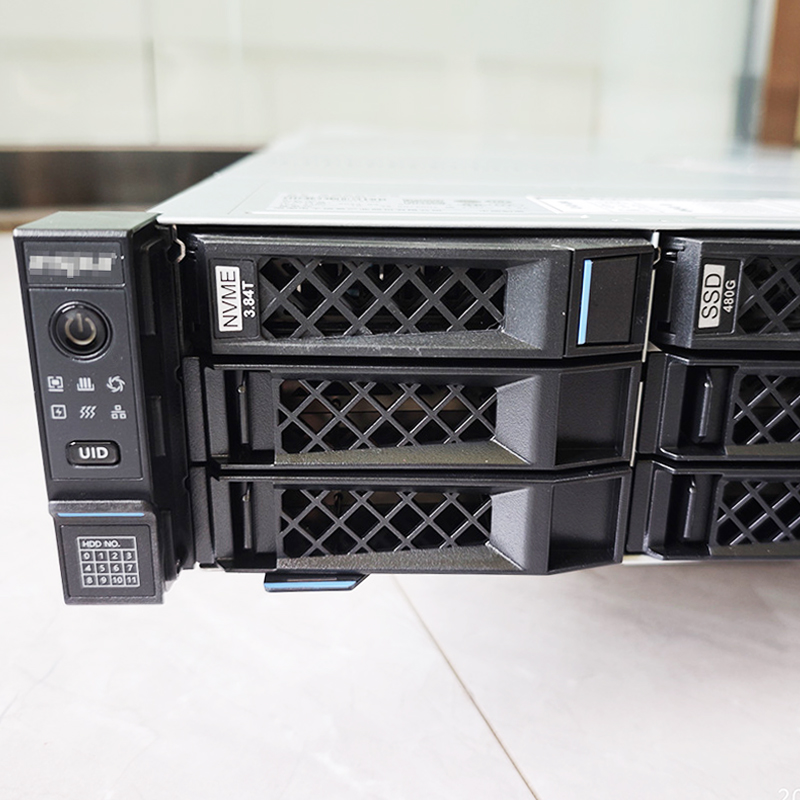

| Drives | Front: 12x3.5"/2.5" SATA/SAS/NVMe; Rear: Up to 4x2.5" or 4x3.5" SATA/SAS/NVMe SSD |
| Expansion Slots | Up to 11 standard PCIe slots (Front IO configuration supports up to 13 slots) |
| Network Interface | OCP 3.0 module (10G to 200G); Dual 10Gb onboard ports; Supports standard 1G/10G/25G/40G/100G/200G cards |
| Power Supply | 1+1 Redundant: 550W/800W/1300W/1600W/2000W CRPS standard |
| GPU Support | Supports 4 double-width or 8 single-width GPUs/graphics cards |
| System Management | Integrated 1000Mbps independent network interface for IPMI remote management |
| Operating System | Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS |
| I/O Ports | 3x USB 3.0, 1x USB 2.0, 2x VGA (Front/Rear) |
