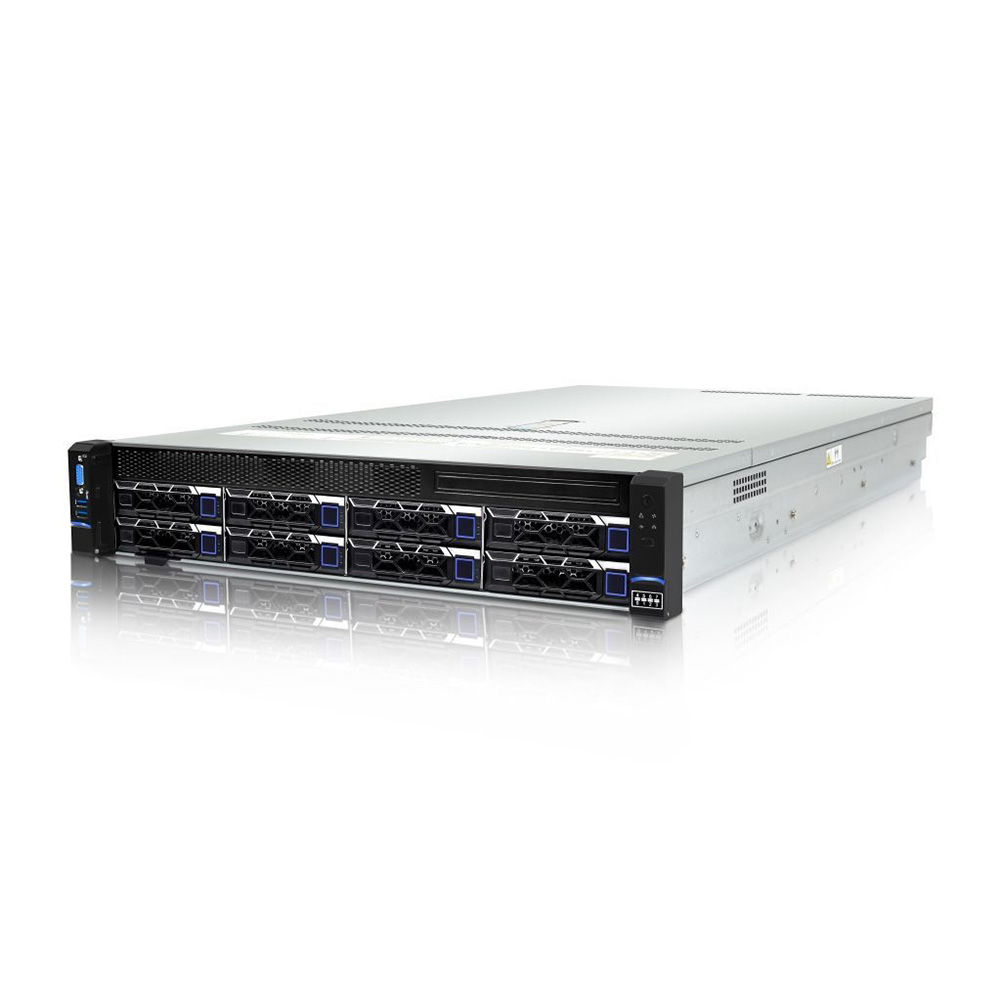

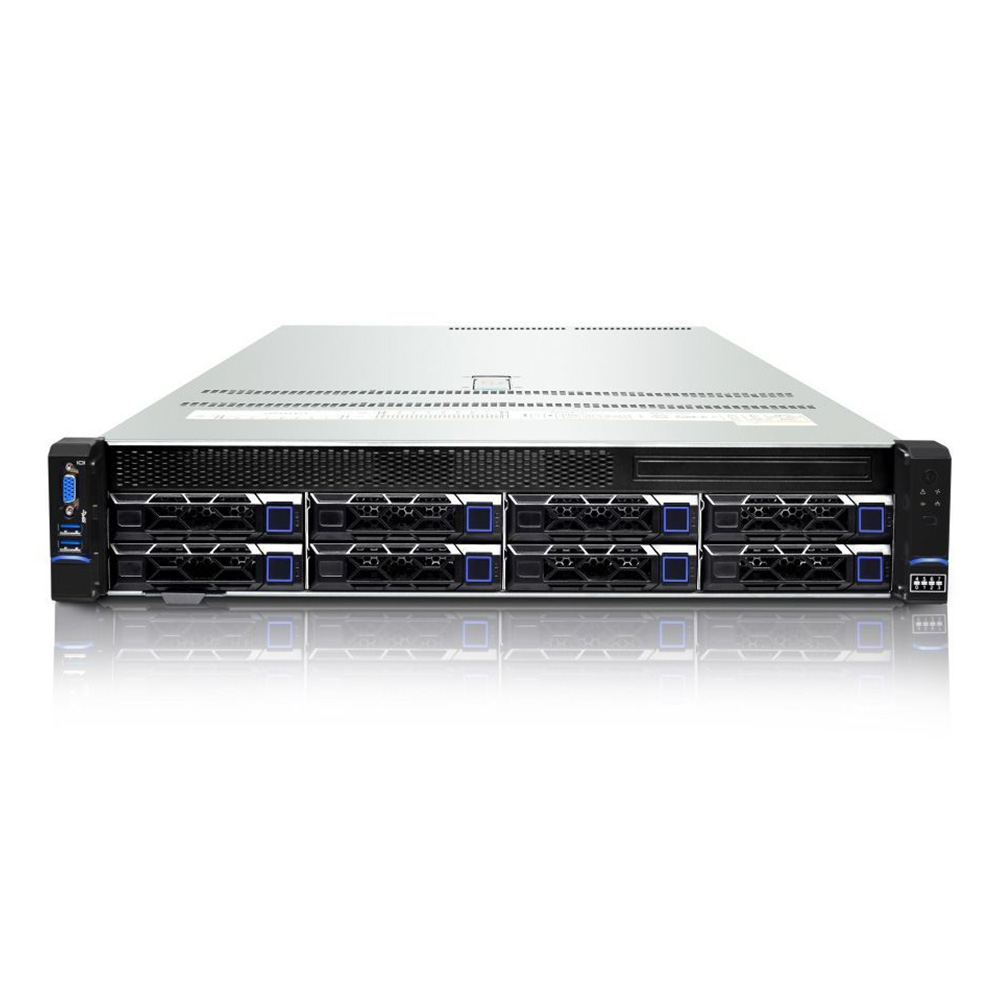

AC-629V3 is a 2U dual-socket general-purpose server with wide applications. It is equipped with AMD's latest EPYC™ 9004/9005 series processors. This product adopts a modular design and can be flexibly configured according to business needs. It has excellent computing performance and rich expansion capabilities, achieving excellent cost-effectiveness and energy efficiency, and is suitable for applications such as cloud computing, virtualization, high-performance computing and artificial intelligence.
Supports two EPYC™ 9004/9005 series processors, each with up to 192 cores and a maximum TDP of 500W. Four xGMI interconnects maximize CPU computing power. Supports 24 DDR5 memory modules with a maximum frequency of 6400MT/s.
Decoupled hardware module design enables flexible configuration of compute, storage, and networking. Supports up to 24 U.2 NVMe slots and up to 10 standard PCIe expansion slots. OCP NIC 3.0 network expansion options available.
Key system components are redundant and hot-swappable. Integrated intelligent management chip provides an open platform supporting IPMI 2.0, Redfish, and SNMP with remote KVM and virtual media support.
| Function | Technical Specifications |
|---|---|
| Type | 2U rackmount |
| Processor | Supports two AMD EPYC™ 9004/9005 series processors, up to 192 cores per CPU, Max TDP 500W, 4 xGMI links |
| Memory | 24 DDR5 slots, up to 6400MT/s, RDIMM/3DS RDIMM |
| Storage Controller | Optional 12Gb/s SAS HBA and 12Gb/s SAS RAID card |
| Storage | Front: 12x 3.5" or 24x 2.5" drives; Rear: 4x 2.5" drives; Internal: 2x M.2 (PCIe 3.0 x4); Supports up to 24x U.2 NVMe |
| PCI-E Expansion | Up to 10 standard PCIe expansion slots |
| GPU Support | Up to 2x double-width or 4x single-width (FHFL) or 8x HHHL GPUs |
| Network | 1x 1Gb RJ45 Management; Optional OCP 3.0 (1GbE/10Gb SFP+/25Gb SFP28) |

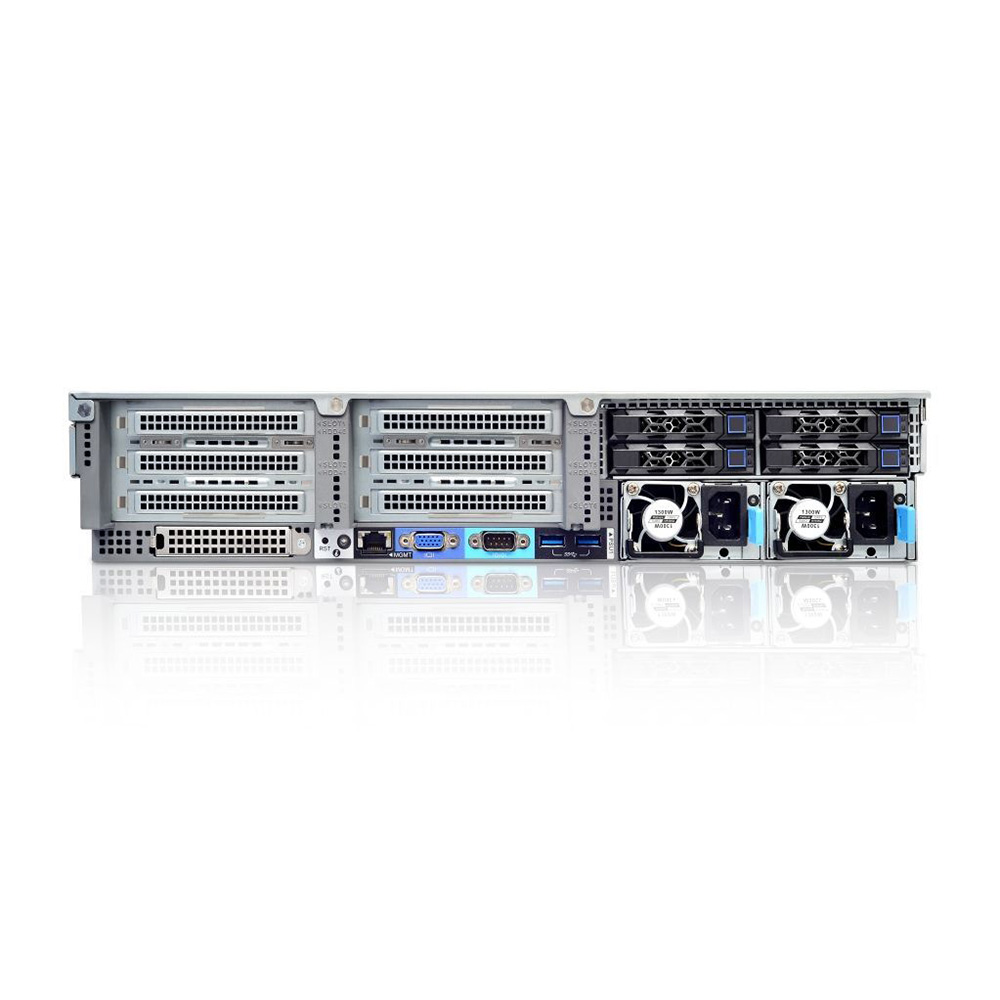

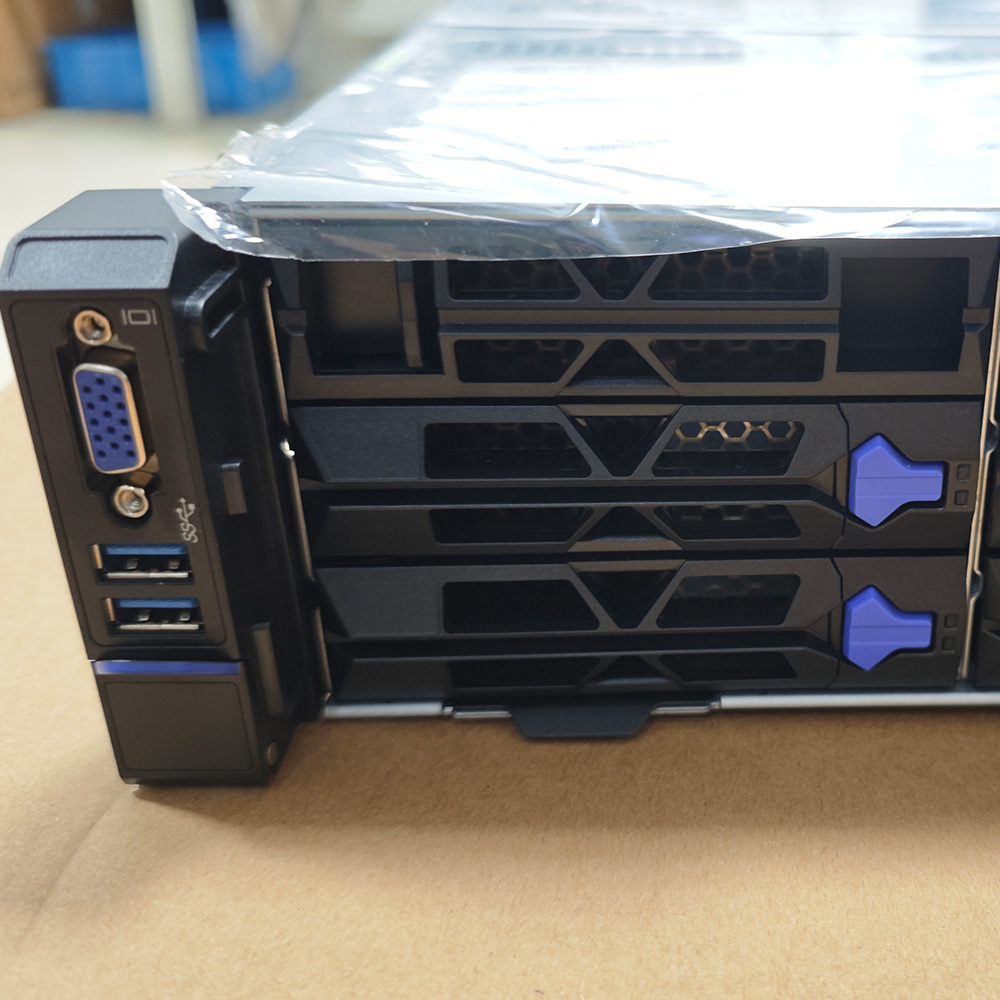

| I/O Interface | Front: 1 VGA, 2 USB 3.0; Rear: 1 VGA, 2 USB 3.0, 1 RJ45 Mgmt, 1 COM |
| Management | BMC AST2600, supporting IPMI2.0, Redfish, SOL, KVM, virtual media |
| Security | TPM module, chassis intrusion detection, lockable cover, BMC dual flash redundancy |
| Power Supply | 1+1 Redundant Hot-swap; 800W/1300W/1600W/2000W/2400W Platinum |
| System Fan | 4x hot-swappable fans, N+1 redundancy, intelligent speed regulation |
| Dimensions | 448mm(W) x 87mm(H) x 763mm(D) |
| Operating OS | Windows Server, Red Hat, SUSE, Ubuntu, Oracle Linux, VMware ESXi, Citrix |
