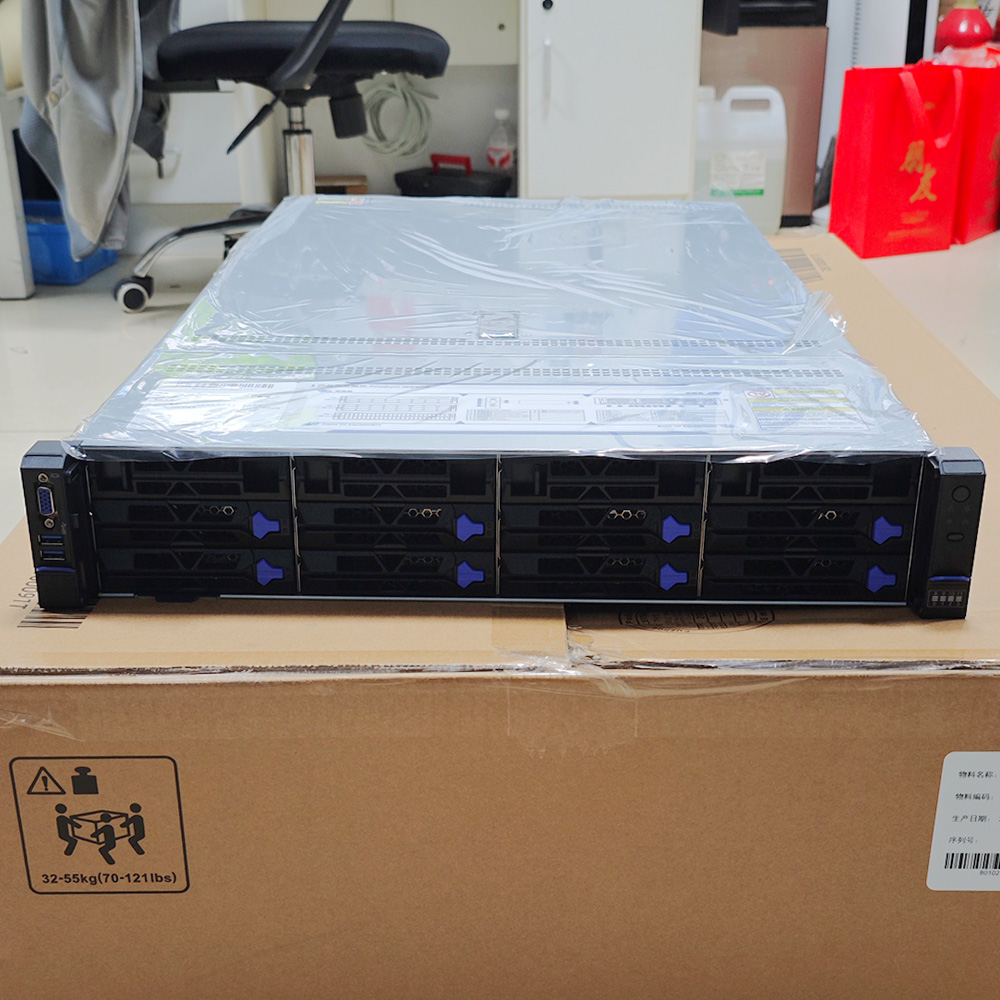

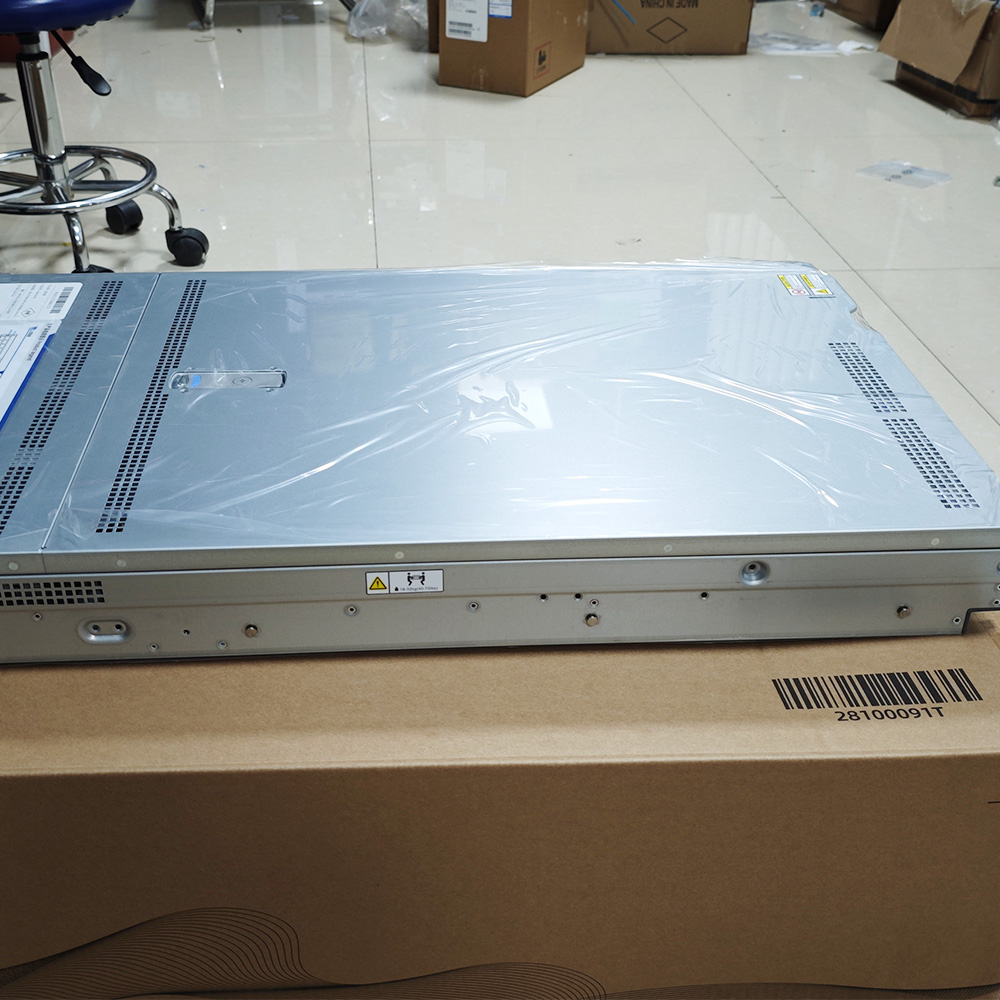

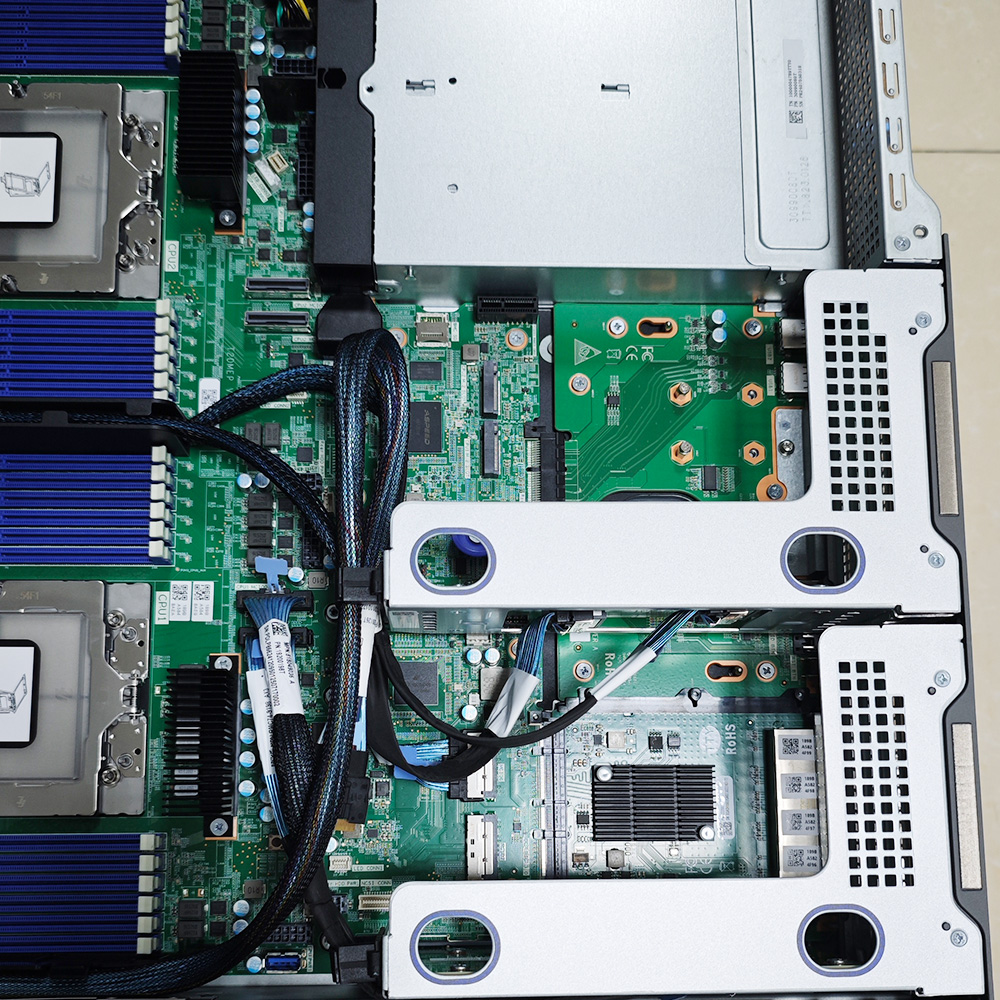

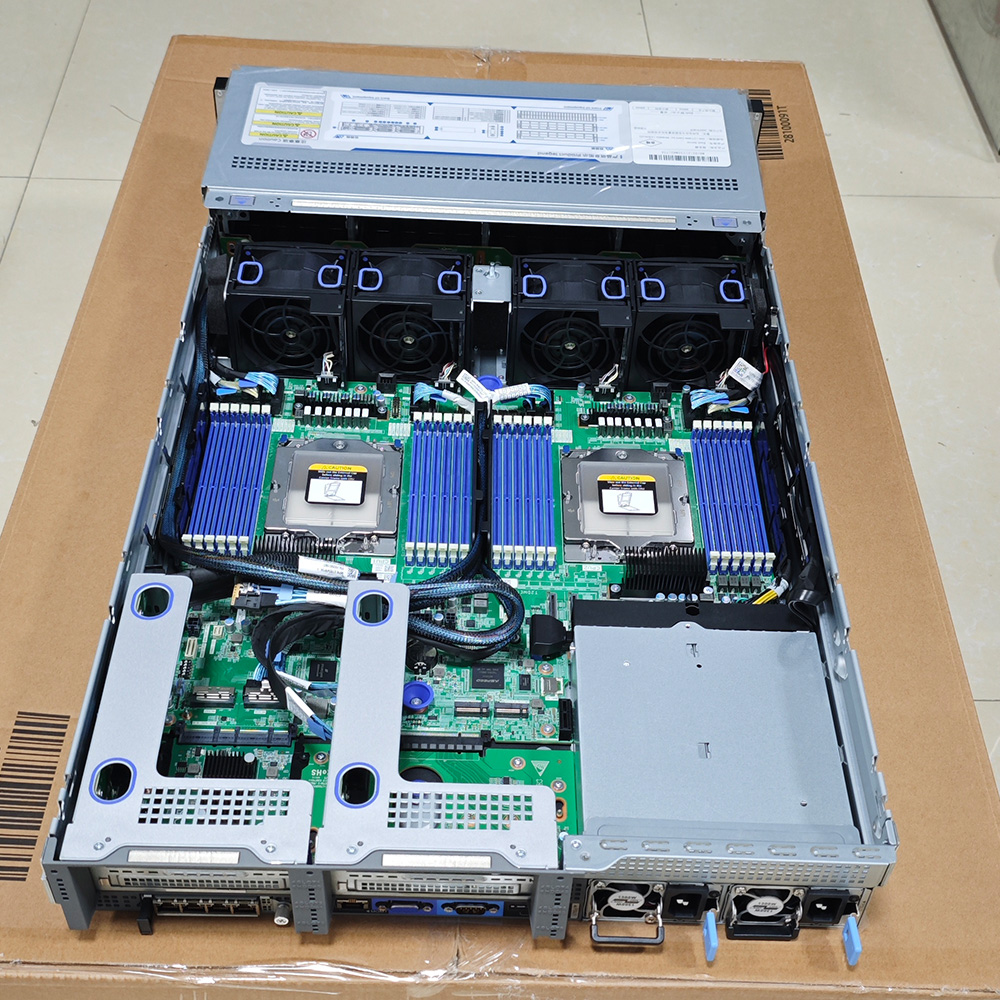

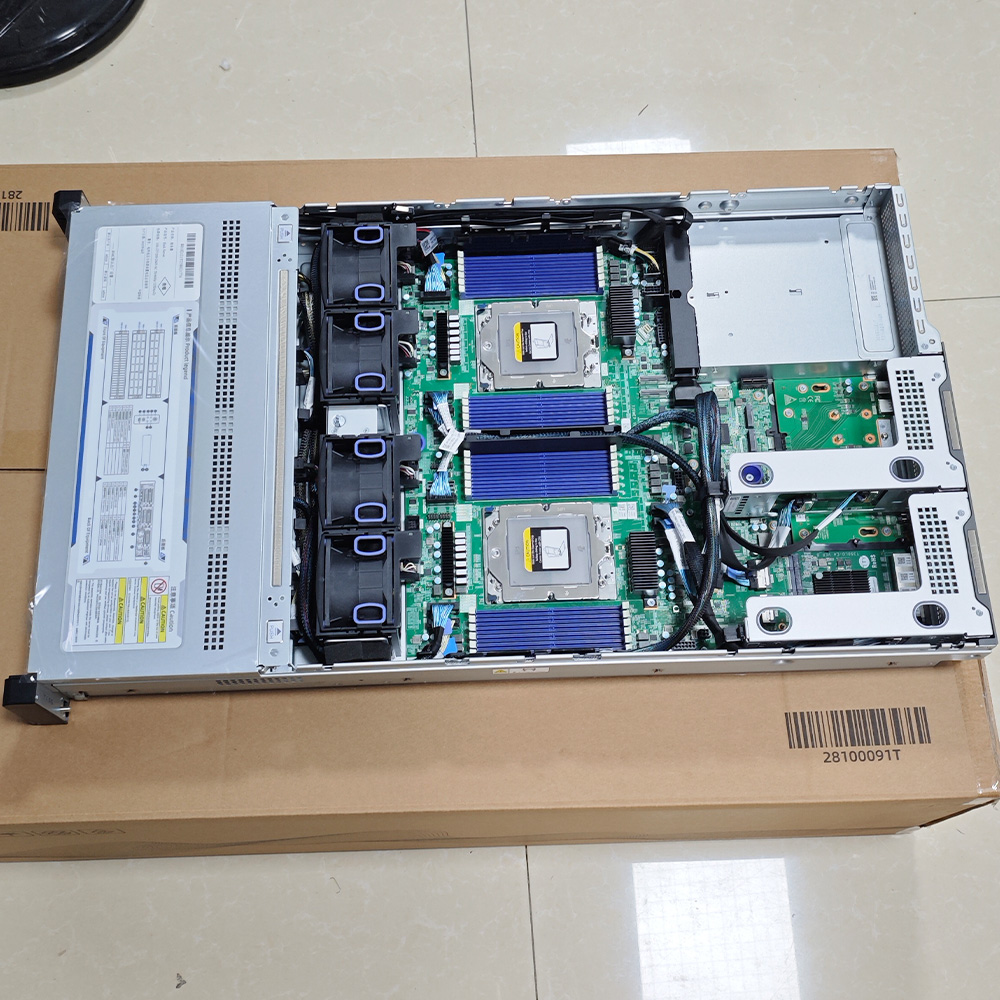

The AC-629V3 is a 2U dual-socket general-purpose server with wide applications. It is equipped with the latest EPYC™ 9004/9005 series processors. This product adopts a modular design and can be flexibly configured according to business needs. It has excellent computing performance and rich expansion capabilities, achieving excellent cost-effectiveness and energy efficiency, and is suitable for applications such as cloud computing, virtualization, high-performance computing and artificial intelligence.
| Function | Technical Specifications | |||
|---|---|---|---|---|
| Type | 2U rackmount | |||
| Processor | Supports two EPYC™ 9004/9005 series processors, with a single CPU supporting up to 192 cores and a maximum power draw of 500W. 4 xGMI links |
|||
| Storage Controller | Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID card | |||
| Memory | 24 DDR5 memory slots, supporting up to 6400MT/s, RDIMM/3DS RDIMM | |||
| Storage |
Front: Supports up to 12 3.5-inch or 24 2.5-inch hard drives Rear: Supports up to 4 2.5-inch hard drives Internal: Supports 2 M.2 (2280/22110, PCIe 3.0 x4) Supports up to 24 U.2 NVMe drives |
|||
| PCI-E Expansion | Supports up to 10 standard PCIe expansion slots | |||
| GPU |
Supports up to two full-height, full-length, double-width GPUs Supports up to four full-height, full-length, single-width GPUs Supports up to eight half-height, half-length, single-width GPUs |
|||
| Network | 1x 1Gb RJ45 dedicated management network port. Optional support for 1x OCP 3.0 network card with NCSI support. Optional 4x 1GbE / 2x 10Gb SFP+ / 4x 10Gb SFP+ / 2x 25Gb SFP28 or other standard-compliant cards | |||
| I/O Interface |
Front: 1 VGA, 2 USB 3.0 ports Rear: 1 VGA, 2 USB 3.0 ports, 1 RJ45 management network port, 1 COM port |
|||
| Management | BMC management chip AST2600, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions | |||
| Security | Optional TPM security module, chassis cover intrusion detection, lockable chassis cover (tool-free), BMC dual flash redundancy | |||
| Power Supply | Two power modules can be configured, supporting 1+1 redundancy and hot swapping. Optional 800W/1300W/1600W/2000W/2400W high-efficiency platinum power supplies. Supports 220V AC/240V DC | |||
| System Fan | 4 hot-swappable fans, support N+1 redundancy, support intelligent speed regulation and abnormal alarm | |||
| Size | Width 448mm x Height 87mm x Depth 763mm (783mm including mounting ears) | |||
| Weight | The net weight of the full configuration is about 32KG, and the full configuration including the guide rail, accessories and packaging is about 40KG | |||
| Temperature | Operating Temperature: 5°C - 35°C (without direct sunlight) Storage Temperature: -40°C - 65°C | |||
| Humidity | Operating relative humidity: 8% to 90% (non-condensing) Storage relative humidity: 5% to 95% (non-condensing) | |||
| OS Support | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, Oracle Linux, VMware ESXi, Citrix XenServer | |||
