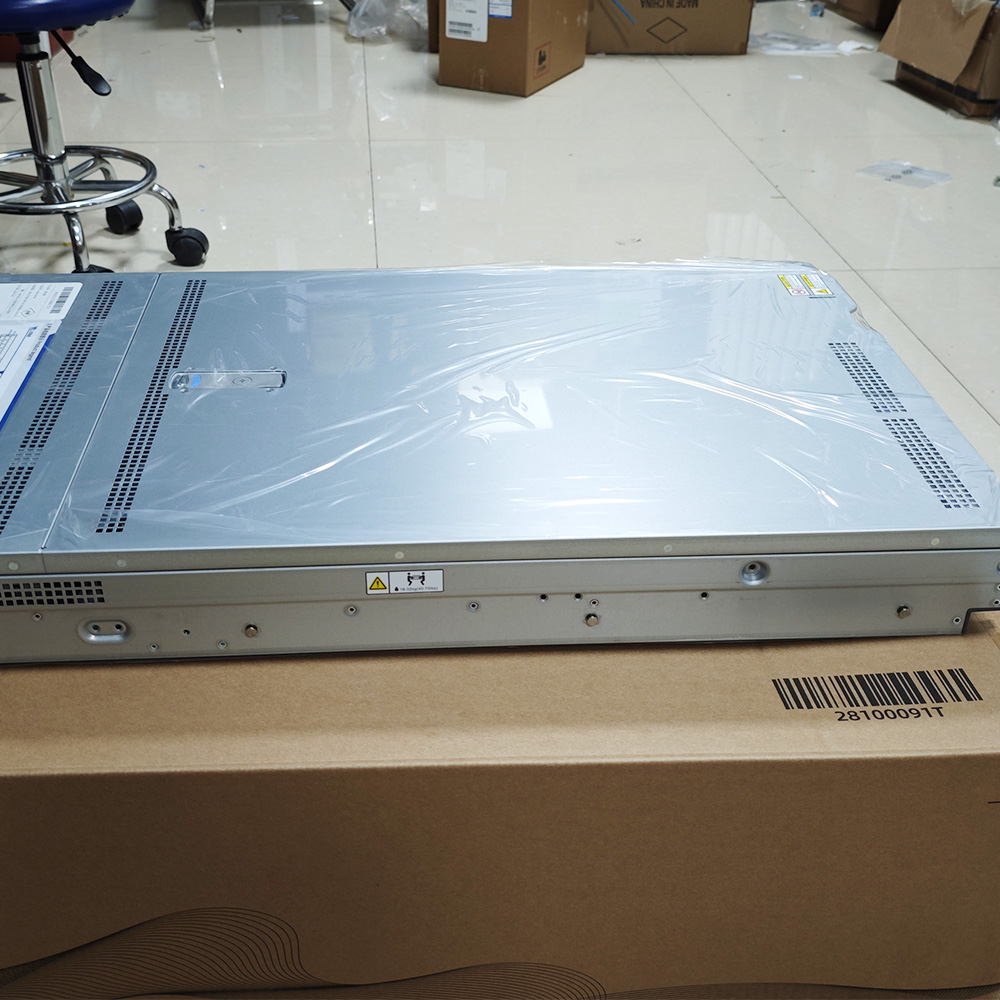

AC-629V3 is a 2U dual-socket general-purpose server with wide applications. It is equipped with the latest EPYC™ 9004/9005 series processors. This product adopts a modular design and can be flexibly configured according to business needs. It has excellent computing performance and rich expansion capabilities, achieving excellent cost-effectiveness and energy efficiency, and is suitable for applications such as cloud computing, virtualization, high-performance computing and artificial intelligence.
Supports two EPYC™ 9004/9005 series processors, each with up to 192 cores and a maximum TDP of 500W.
Four xGMI interconnects maximize CPU computing power.
Supports 24 DDR5 memory modules with a maximum frequency of 6400MT/s, providing excellent memory bandwidth and capacity.
Decoupled hardware module design enables flexible configuration of compute, storage, and networking to meet diverse business needs.
Flexible storage configuration options include support for up to 24 U.2 NVMe slots.
Supports up to 10 standard PCIe expansion slots and OCP NIC 3.0 network expansion.
Key system components are redundant and hot-swappable, supporting tool-free installation and disassembly.
Integrated intelligent management chip AST2600 provides an open management platform supporting IPMI 2.0, Redfish, and SNMP.
Supports remote KVM, virtual media, key component status monitoring, and abnormality alarms.
| Function | Technical Specifications |
|---|---|
| Type | 2U rackmount |
| Processor | Supports two EPYC™ 9004/9005 series processors, with a single CPU supporting up to 192 cores and a maximum power draw of 500W. 4 xGMI links |
| Storage Controller | Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID card |
| Memory | 24 DDR5 memory slots, supporting up to 6400MT/s, RDIMM/3DS RDIMM |
| Storage |

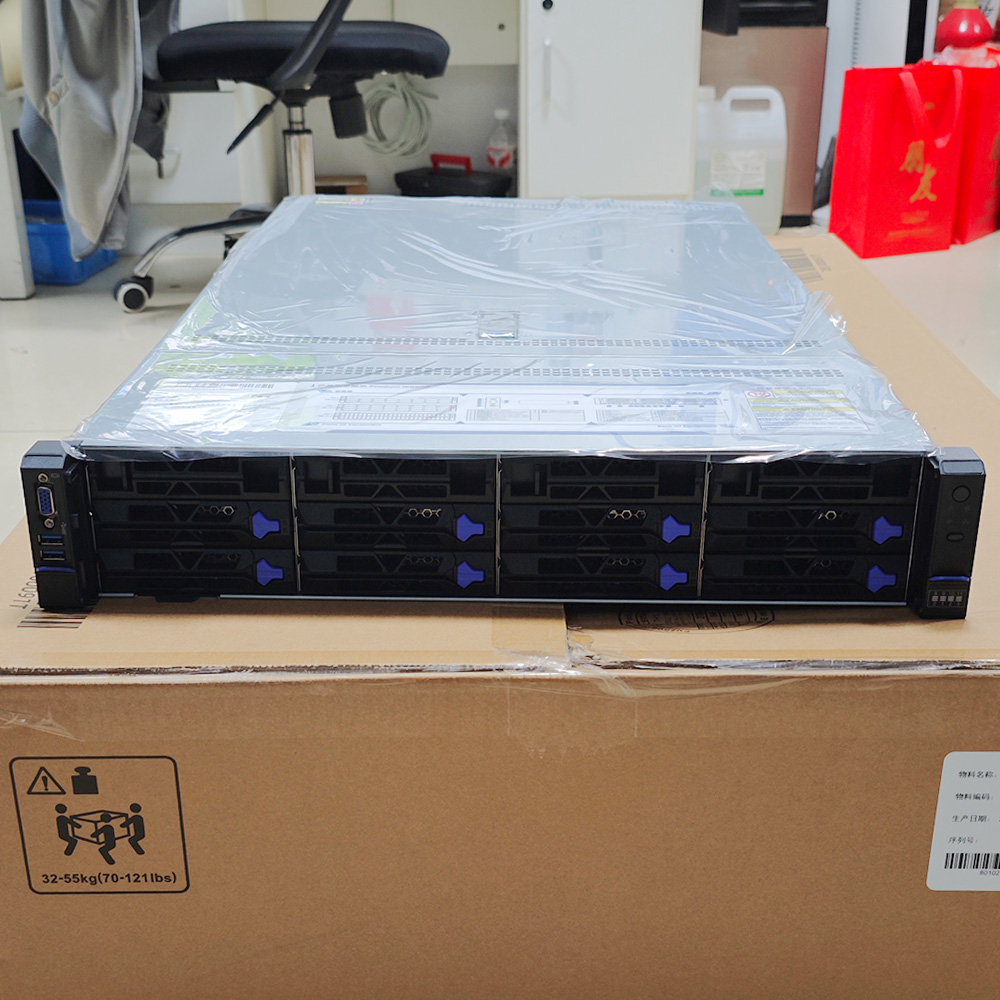

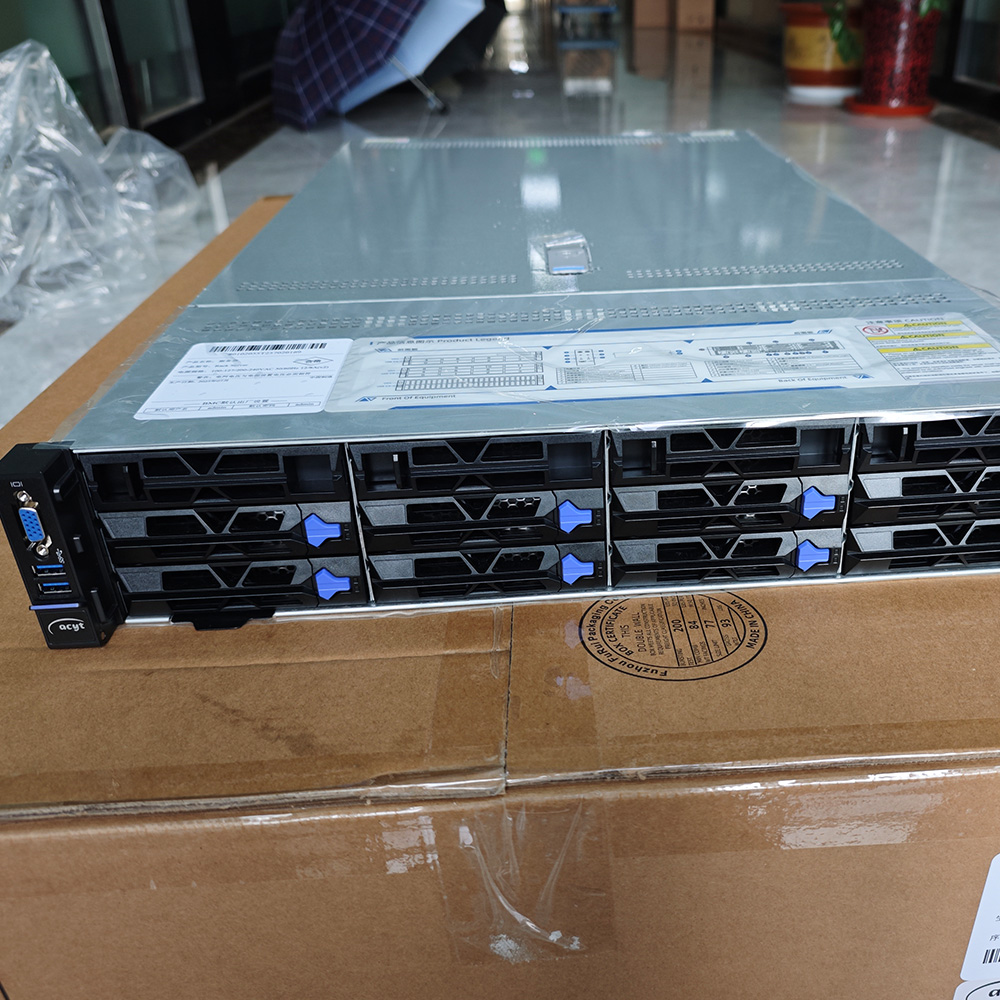

Front: Supports up to 12 3.5-inch or 24 2.5-inch hard drives Rear: Supports up to 4 2.5-inch hard drives Internal: Supports 2 M.2 (2280/22110, PCIe 3.0 x4) Supports up to 24 U.2 NVMe drives |
| PCI-E Expansion | Supports up to 10 standard PCIe expansion slots |
| GPU |
Supports up to two full-height, full-length, double-width GPUs Supports up to four full-height, full-length, single-width GPUs Supports up to eight half-height, half-length, single-width GPUs |
| Network | 1x 1Gb RJ45 dedicated management network port. Optional support for 1x OCP 3.0 network card with NCSI support. Optional 4x 1GbE / 2x 10Gb SFP+ / 4x 10Gb SFP+ / 2x 25Gb SFP28 or other standard-compliant cards |
| I/O Interface |

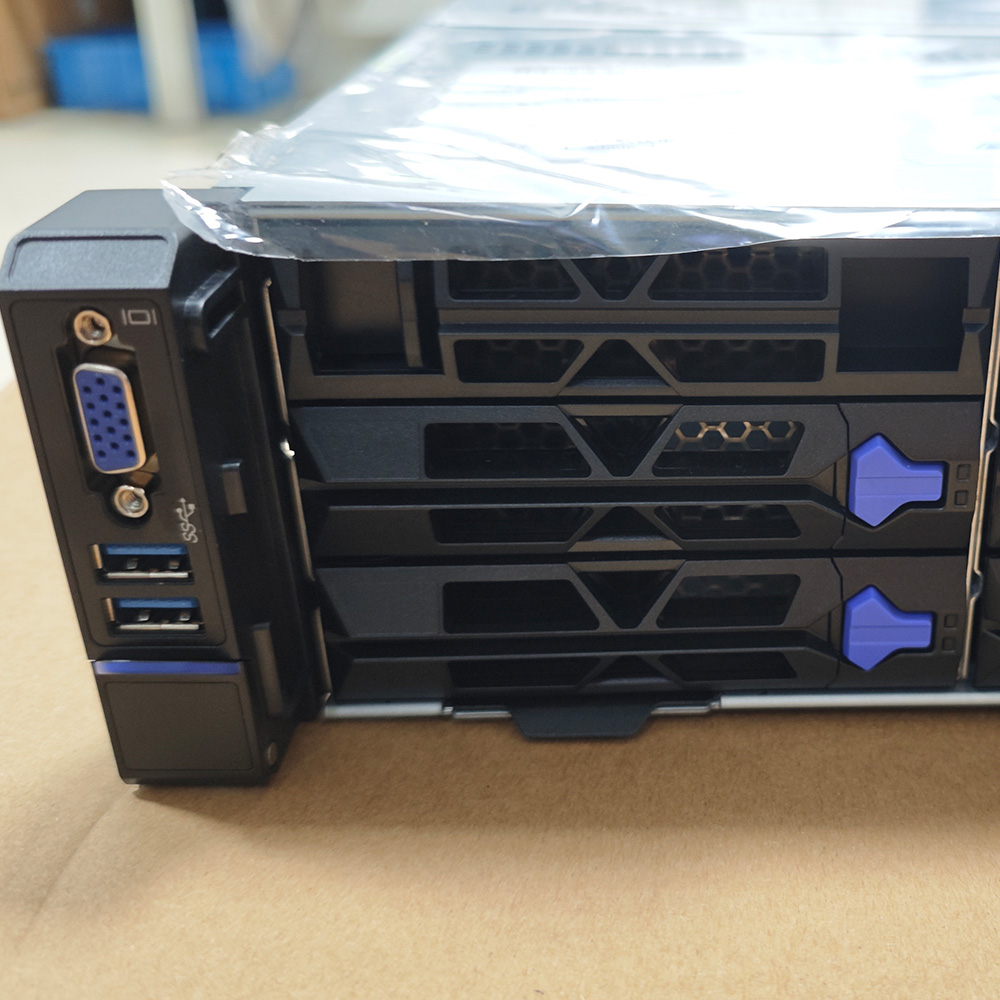

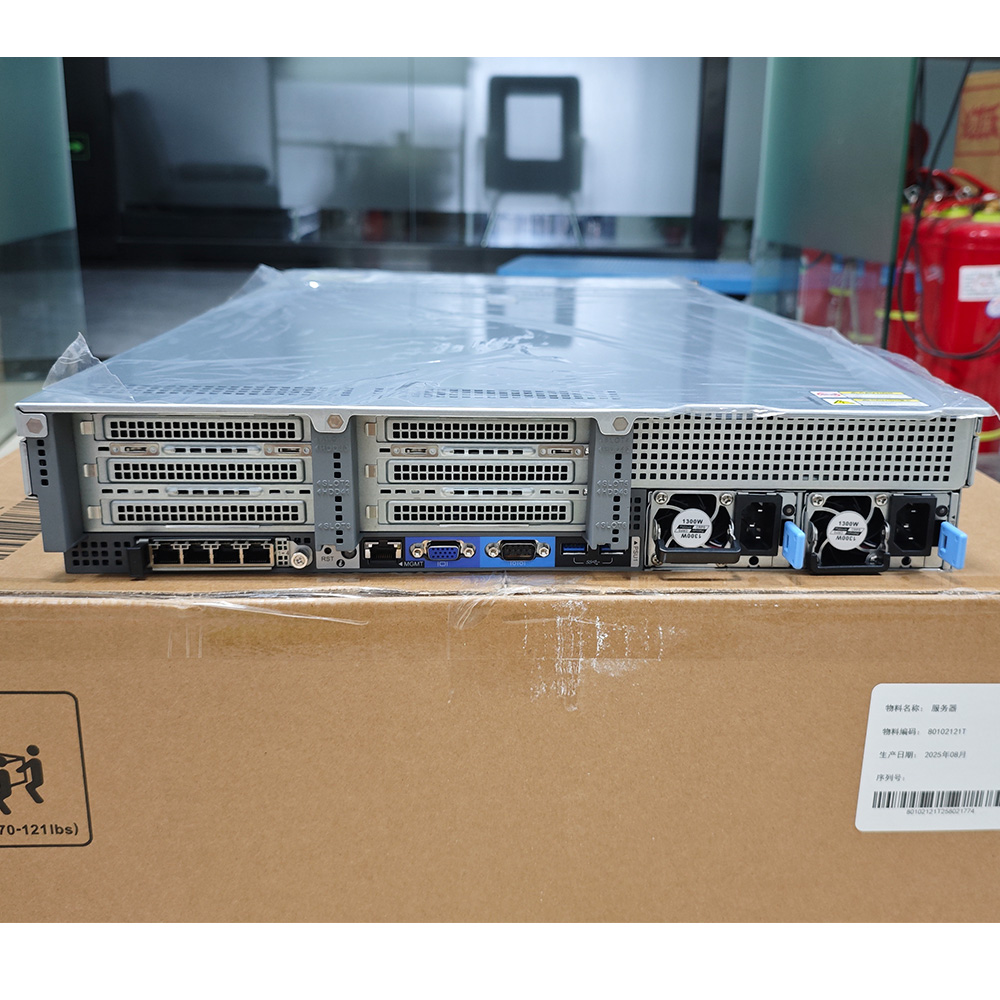

Front: 1 VGA, 2 USB 3.0 ports Rear: 1 VGA, 2 USB 3.0 ports, 1 RJ45 management network port, 1 COM port |
| Management | BMC management chip AST2600, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions |
| Security | Optional TPM security module, chassis cover intrusion detection, lockable chassis cover (tool-free), BMC dual flash redundancy |
| Power Supply | Two power modules can be configured, supporting 1+1 redundancy and hot swapping. Optional 800W/1300W/1600W/2000W/2400W high-efficiency platinum power supplies. Supports 220V AC/240V DC |
| System Fan | 4 hot-swappable fans, support N+1 redundancy, support intelligent speed regulation and abnormal alarm |
| Size | Width 448mm x Height 87mm x Depth 763mm (783mm including mounting ears) |
| Weight | The net weight of the full configuration is about 32KG, and the full configuration including the guide rail, accessories and packaging is about 40KG |
| Temperature | Operating Temperature: 5°C - 35°C (without direct sunlight) Storage Temperature: -40°C - 65°C |
| Humidity | Operating relative humidity: 8% to 90% (non-condensing) Storage relative humidity: 5% to 95% (non-condensing) |
| OS Support | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, Oracle Linux, VMware ESXi, Citrix XenServer |
