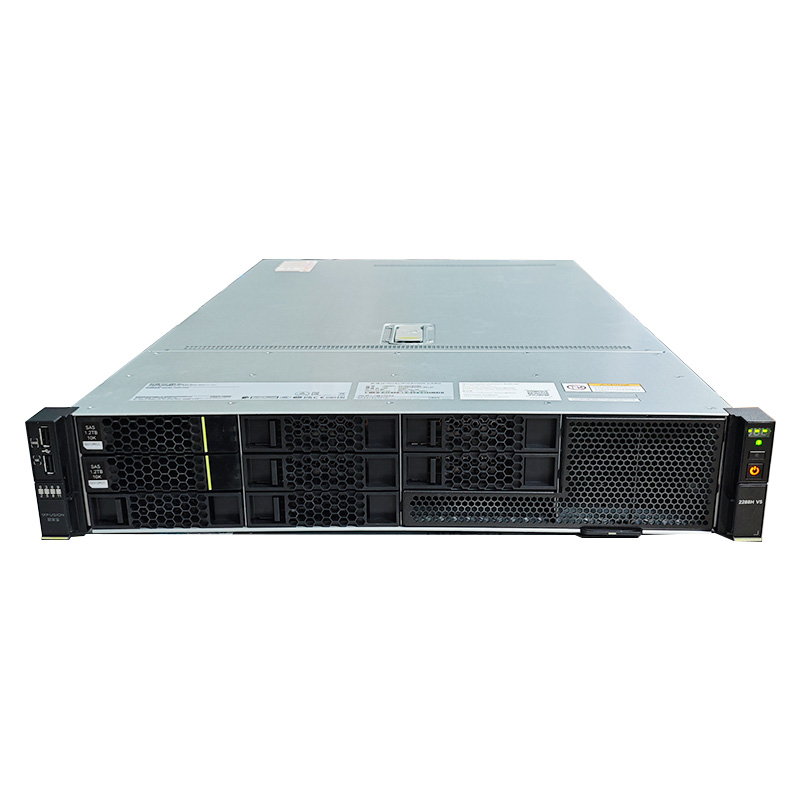

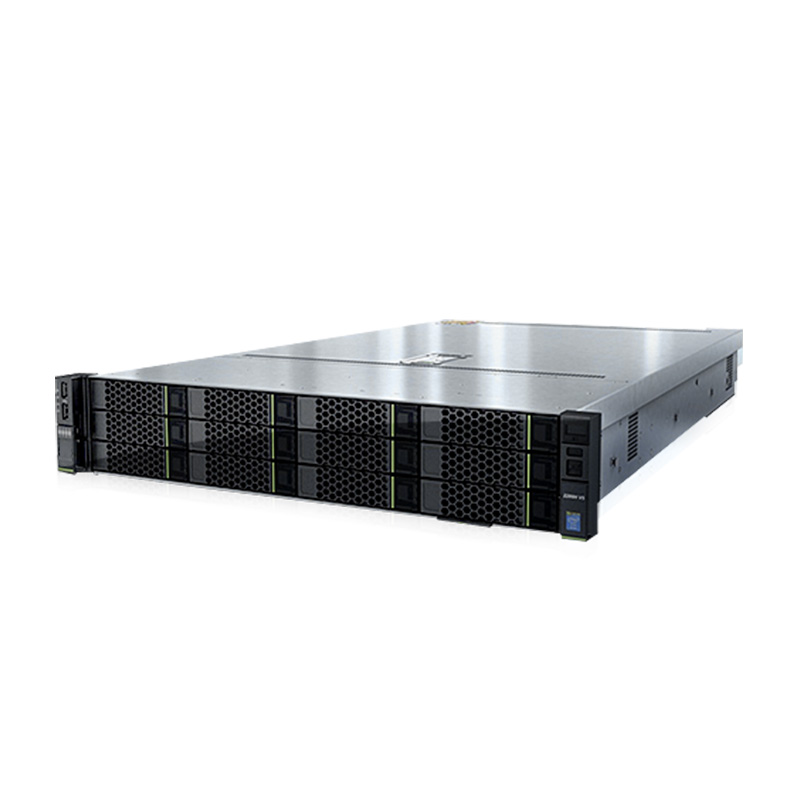

FusionServer 2288H V5 is a 2U 2-socket rack server with flexible configuration. It is equipped with 24 DDR4 memory expansion slots and 10 PCIe expansion slots, and up to 20×3.5-inch or 31×2.5-inch local storage resources (4/8/12/24/28 NVMe SSD hard drives can be configured). It integrates patented technologies such as DEMT intelligent power consumption management and FDM intelligent fault management, and can be equipped with FusionDirector full life cycle management software, which can effectively reduce operating costs and improve investment returns. It is suitable for cloud computing virtualization, databases, big data and other loads.
Supports up to two Intel® Xeon® Scalable processors and 24 DDR4 memory slots. Can be configured with up to 20 3.5-inch or 31 2.5-inch slots, and NVMe models can be configured with up to 28 NVMe SSDs.
DEMT smart energy-saving strategy, component sleep, power supply phase, PID energy-saving speed regulation, power supply main and standby power supply and other multi-dimensional energy-saving technologies. Optional 550W/900W/1200W/1500W power modules, using DC and high-voltage DC HVDC technology to improve energy utilization.
Full life cycle intelligent operation and maintenance, FDM deep fault diagnosis technology with up to 93% accuracy. Onboard network card meets high IO network business. Standardized open interface and development guide, easy to integrate with third-party management software.
| Form Factor/Height | 2U rack-mount server, FusionServer 2288H V5 |
| Processor | 1/2 first generation Intel® Xeon® Scalable processor 3100/4100/5100/6100/8100 series, up to 205W, supports Lanqi Jintai processors 1/2 second generation Intel® Xeon® Scalable processor 3200/4200/5200/6200/8200 series, up to 205W, supports Lanqi Jintai processors |
| Memory | 24 DDR4 memory slots, up to 2933MT/s, up to 12 Intel® Optane™ persistent memory 100 series, up to 2666MT/s |
| Drives | Supports a variety of different hard disk configurations, and hard disks support hot swapping: • Configurable to 8 2.5-inch SAS/SATA/SSD hard disks • Configurable to 12/16/20 3.5-inch SAS/SATA hard disks • Configurable to 4/8/12/24/28 NVMe SSD hard disks • Configurable to 31 2.5-inch SAS/SATA/SSD hard disks • Configurable to 2 M.2 SATA SSD hard disks, supports hardware RAID* |
| Expansion slots | Up to 10 PCIe3.0 expansion slots, including 1 PCIe expansion card dedicated to RAID card and 1 flexible LOM card |
| Network interface | Onboard network card: 2 10GE interfaces and 2 GE interfaces Flexible card: optional 2*GE or 4*GE or 2*10GE or 2*25GE or 1/2 56G FDR IB interfaces |
| Dual redundant power supply | Two redundant hot-swappable power supplies can be configured, supporting 1+1 redundancy. Optional specifications are as follows: • 550W AC Platinum Power Supply • 900W AC Platinum/Titanium Power Supply • 1500W AC Platinum Power Supply • 1500W 380V High Voltage DC Power Supply • 1200W -48V～-60V DC Power Supply |
| System Management | FusionServer BMC |
| Operating system | Microsoft, SUSE, Red Hat, VMware, CentOS, NeoKylin, Ubuntu, OpenEuler, etc. |
| GPU | Up to 7 single-slot half-height, half-length cards Up to 2 dual-slot full-height, full-length cards |
| Dimensions (H x W x D) | 3.5-inch hard disk chassis dimensions: 86.1mm×447mm×748mm 2.5-inch hard disk chassis dimensions: 86.1mm×447mm×708mm |
