NF5280M6 2U Rackmount Server Host Database Virtualization Backup Storage High-performance GPUs in Stock

Product Description

NF5280M6 Banner

NF5280M6 Use Cases

  • Cloud computing
  • Virtualization (vSphere/Hyper-V)
  • Database (Oracle/MySQL)
  • AI/ML training

For detailed datasheets or custom configurations, feel free to inquire!

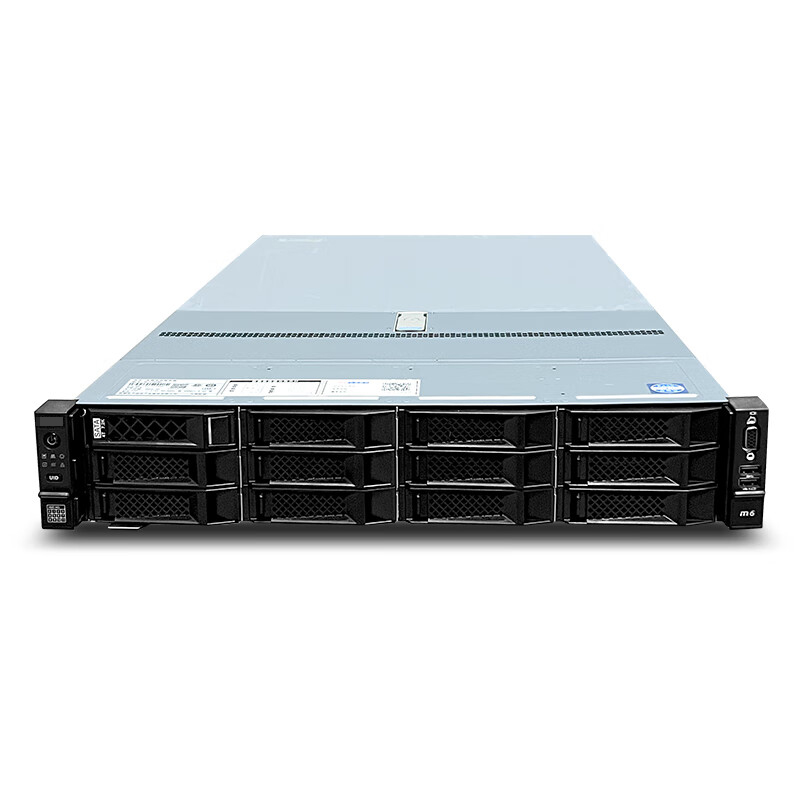

NF5280M6 Front View

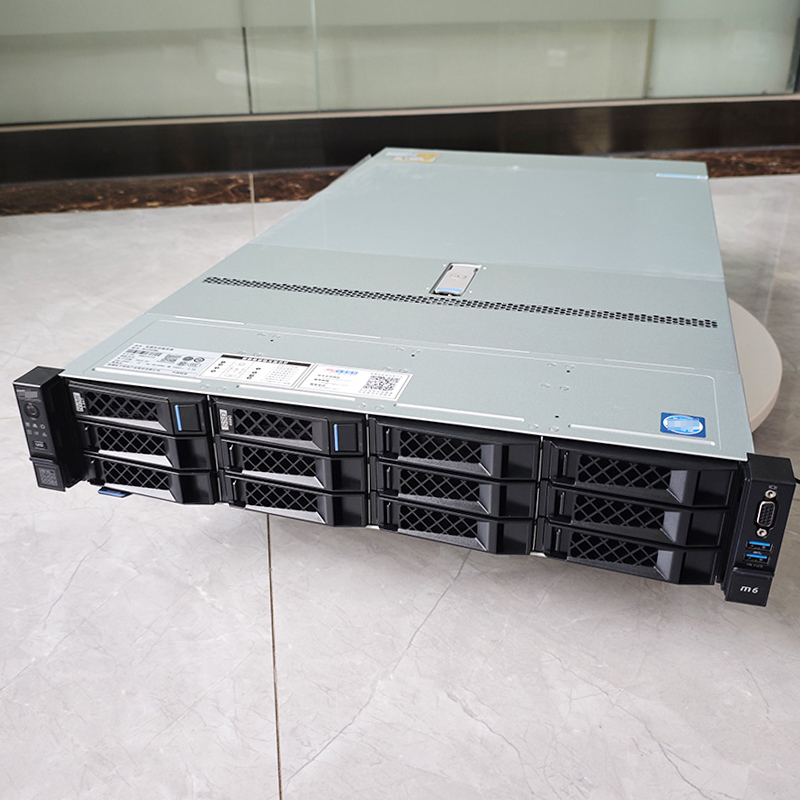

NF5280M6 Processor & Memory

NF5280M6

1. Processor (CPU)
  • Supports 2× 3rd Gen Intel® Xeon® Scalable (Ice Lake-SP)
  • Max 40 cores/80 threads per CPU
  • TDP: 85W~270W (configurable)
2. Memory (RAM)
  • 32× DDR4 DIMM slots
  • Supports 3200/2933 MHz RDIMM/LRDIMM
  • Max capacity: 8TB (256GB per DIMM)
3. Storage
  • Front bays: 12/24× 2.5" or 3.5" hot-swappable bays (SAS/SATA/NVMe)
  • Optional Rear 2× 2.5" bays
  • RAID: Hardware RAID (LSI 9460/9560 or Adaptec 8xxx series)
NF5280M6 Power & OS

NF5280M6

5. Power Supply
  • Dual 800W/1200W/1600W (80+ Platinum/Titanium)
  • Hot-swappable, 200-240V AC or 240V DC
6. Management
  • BMC (IPMI 2.0 compliant)
  • Web-based remote control (HTML5/KVM)
  • Redfish API support
7. OS Support
  • Windows Server, RHEL, CentOS, VMware ESXi, Ubuntu

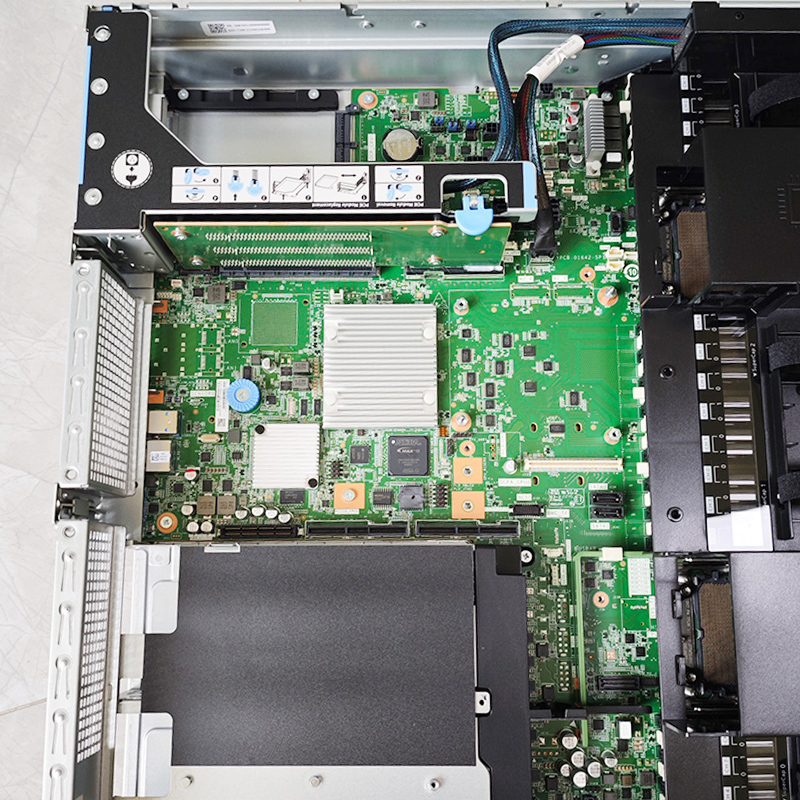

NF5280M6 Structure

NF5280M6

Physical Appearance
  • Form Factor: 2U rackmount
  • Width: 482.6mm (19")
  • Depth: 780mm (standard) / 650mm (short)
  • Height: 87.5mm (2U)
  • Weight: ~30kg (fully loaded)
  • Chassis: Tool-less design, Black metal shell with blue/white accents
  • Front View: Drive bays, Power buttons, system health LEDs, LED status indicators, USB 3.0, VGA port

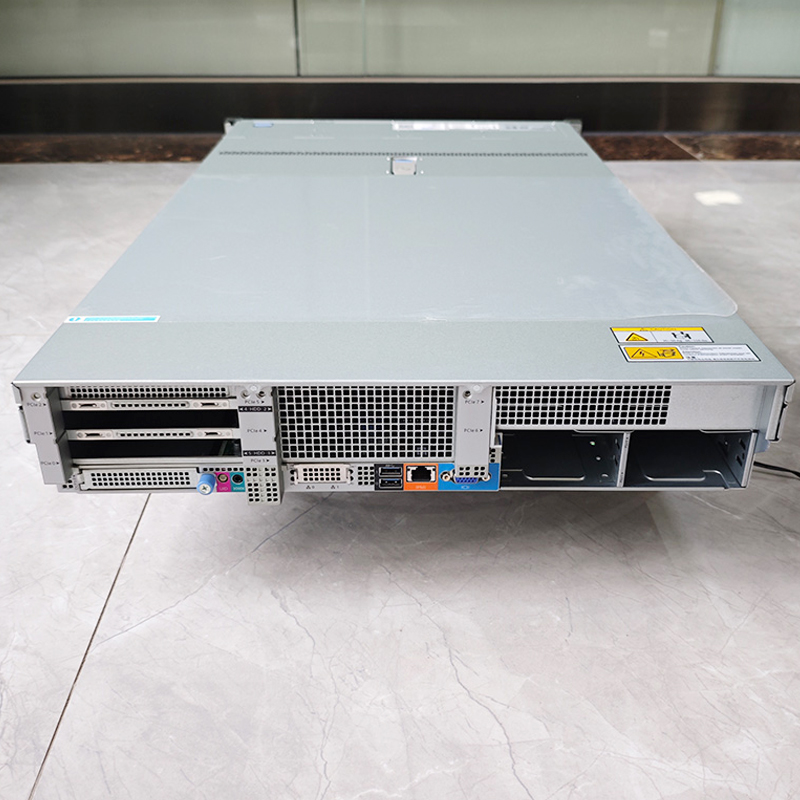

  • Rear View: Power supplies, PCIe slots, OCP NIC, Serial/VGA/2× USB 3.0 ports

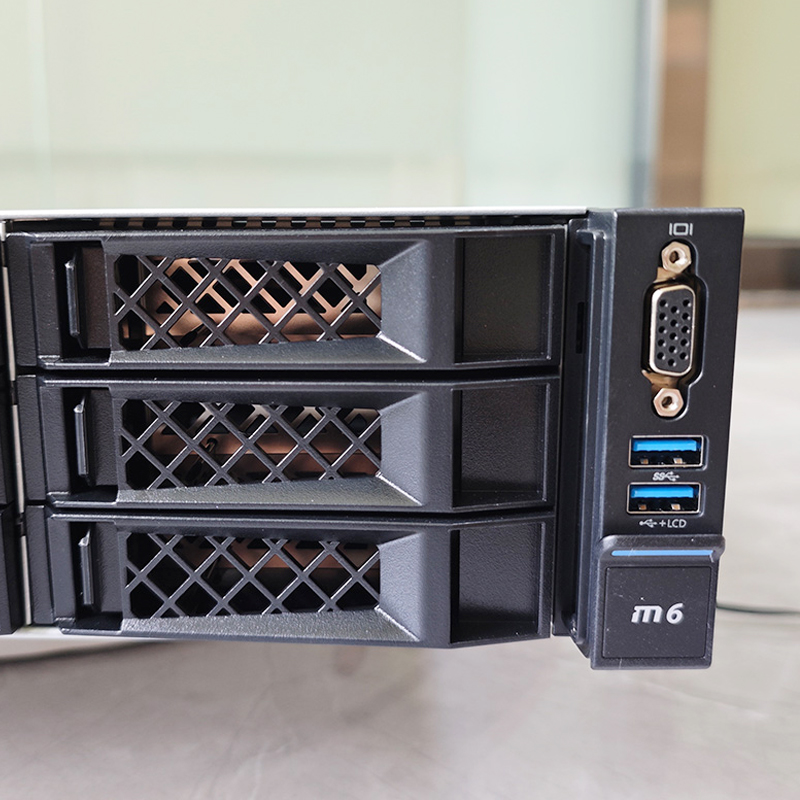

NF5280M6 Detail View
Specifications Banner
Specification Details
model NF5280M6
Processor The third-generation Xeon Scalable CPU supports two processors. A single CPU can support 40 cores.
Memory 32 DDR4 memory slots support RDIMM and BPS memory.
Drive the bay Supports 12 x 3.5-inch hard drive slots.
RAID controllers /
power supply Support 1 1 redundant power supply 550W/800W/1300W/1600W/2000W.
size Height: 42.8 m (1.68 inches) | Width: 482 mm (18.97 inches) | Depth: 598.64 m² (23.56 in) with a border / 585 m² (23.03 in) without border.
Embedded management iDRAC9
baffle Optional LCD frame or safety frame.
Warranty 3 years
Quality Control Banner
FAQ Banner
Frequently Asked Questions
Q1: What products can I purchase from you?

A1: We provide a wide range of hardware solutions, including Server, Storage, Workstations, Memory, Hard Disk, laptop, and Desktop.

Q2: Do you support customization with an R&D team?

A2: Yes, we have our own R&D team and can customize products according to your specific hardware and software requirements.

Q3: How is the quality of the products guaranteed?

A3: We deploy senior technical experts and implement a strict QA and QC system to ensure high performance and reliability.

Q4: Are you looking for international distributors?

A4: Yes, we are actively looking for distributors and agents all over the world to build long-term partnerships.

Q5: How are the products packaged for shipment?

A5: Normally we pack the items in sturdy cartons, but we can also customize the packaging according to your specific requirements.

Q6: What is the typical delivery timeline and language support?

A6: Delivery usually takes about 7 days depending on the quantity ordered. We support communications in multiple languages including English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, and Italian.
