NF5280M6 2U Rackmount Server Host Deep Learning High-performance Meta-brain Database Virtualization

Product Description

NF5280M6 Server Banner

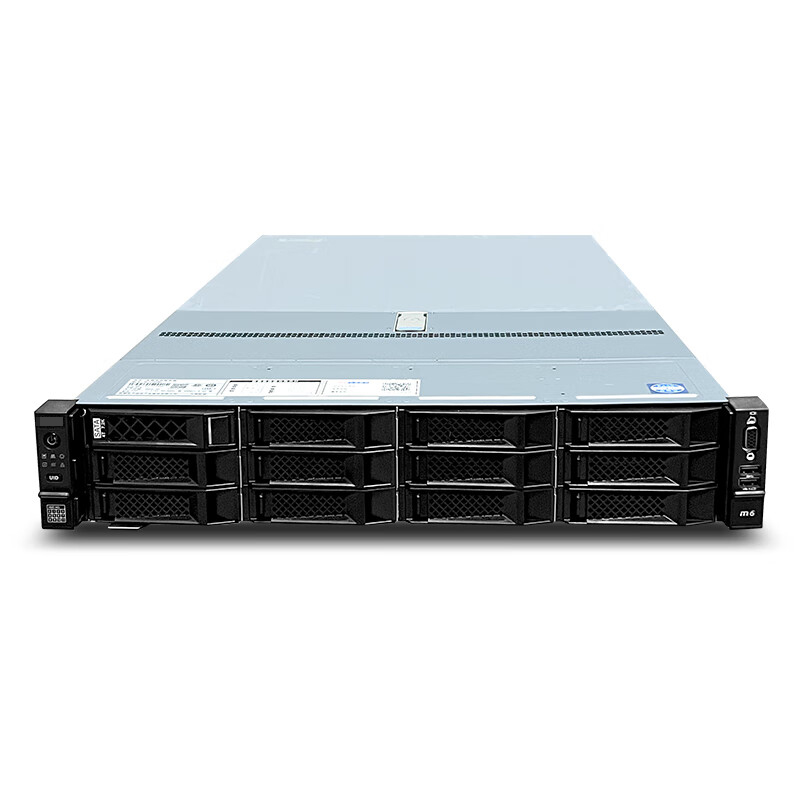

NF5280M6 Rack Server

☁️
Cloud Computing
🖥️
Virtualization
(vSphere / Hyper-V)
🗄️
Database Management
(Oracle / MySQL)
🧠
AI / ML Training

For detailed datasheets or custom configurations, feel free to inquire!

NF5280M6 Product View

Core Capabilities & Physical Specifications

Hardware Config 1
NF5280M6 Hardware Config
  • Processor (CPU): Supports 2× 3rd Gen Intel® Xeon® Scalable (Ice Lake-SP), Max 40 cores/80 threads per CPU. TDP: 85W~270W (configurable).
  • Memory (RAM): 32× DDR4 DIMM slots, Supports 3200/2933 MHz RDIMM/LRDIMM. Max capacity: 8TB (256GB per DIMM).
  • Storage: Front bays: 12/24× 2.5" or 3.5" hot-swappable bays (SAS/SATA/NVMe). Optional Rear 2× 2.5" bays. RAID: Hardware RAID (LSI 9460/9560 or Adaptec 8xxx series).
Hardware Config 2
System & Management
  • Power Supply: Dual 800W/1200W/1600W (80+ Platinum/Titanium). Hot-swappable, 200-240V AC or 240V DC.
  • Management: BMC (IPMI 2.0 compliant). Web-based remote control (HTML5/KVM). Redfish API support.
  • OS Support: Windows Server, RHEL, CentOS, VMware ESXi, Ubuntu.
Physical Design
Physical Appearance
  • Form Factor & Size: 2U rackmount. Width: 482.6mm (19"), Depth: 780mm (standard) / 650mm (short), Height: 87.5mm (2U). Weight: ~30kg (fully loaded).
  • Chassis Design: Tool-less design, black metal shell with blue/white accents. Front panel: LED status indicators, USB 3.0, VGA port.
  • Ports: Front drive bays, power buttons, health LEDs. Rear power supplies, PCIe slots, OCP NIC, Serial, VGA, and 2× USB 3.0 ports.

System Architecture Images

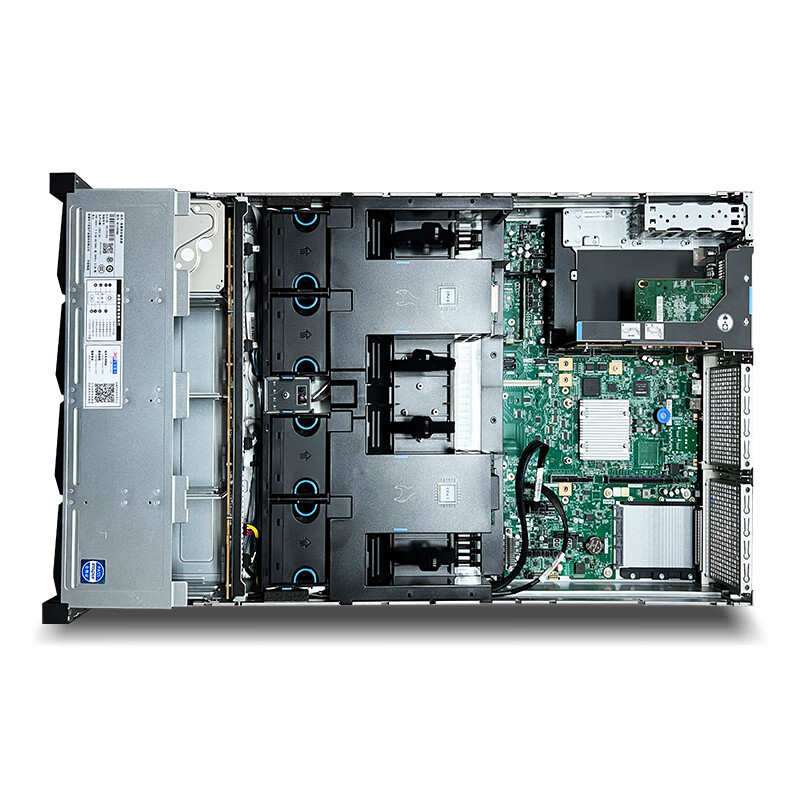

Internal Architecture View
Chassis Front Layout

Technical Specifications

Model NF5280M6
Processor The third-generation Xeon Scalable CPU supports two processors. A single CPU can support 40 cores.
Memory 32 DDR4 memory slots support RDIMM and BPS memory.
Drive Bay Supports 12 x 3.5-inch hard drive slots.
RAID Controllers /
Power Supply Support 1+1 redundant power supply 550W/800W/1300W/1600W/2000W.
Size Height: 42.8 mm (1.68 inches) | Width: 482 mm (18.97 inches)
Depth: 598.64 m² (23.56 in) with a border / 585 m² (23.03 in) without border
Embedded Management iDRAC9
Baffle Optional LCD frame or safety frame.
Warranty 3 years
Operational View Diagram

We focus on the information technology field and are a highly professional and innovative enterprise. Since our establishment, we have always adhered to the business philosophy of "professionalism, efficiency, innovation, and win-win cooperation", and are committed to providing high-quality products and services to customers.

Our main products cover servers, storage, switches, GPUs, and other related accessories. We have established long-term and stable cooperative relationships with many well-known brands in the industry to ensure that all products sold are genuine products with excellent quality and stable performance. At the same time, we have a professional team composed of senior technical experts. They have profound technical skills and rich industry experience, and can provide customers with all-round pre-sales consultation, in-sales support, and after-sales service. Whether it is product selection, system integration, technical training, or troubleshooting, our team can meet the diverse needs of customers with professional qualities and efficient services.

With professional products and services, we have won the trust and praise of many customers, our business scope has been continuously expanded, and a good reputation has been established in the market. In the future, we will continue to forge ahead, continuously enhance our core competitiveness, create greater value for customers, and contribute to the development of the industry.

Product Showcase Gallery

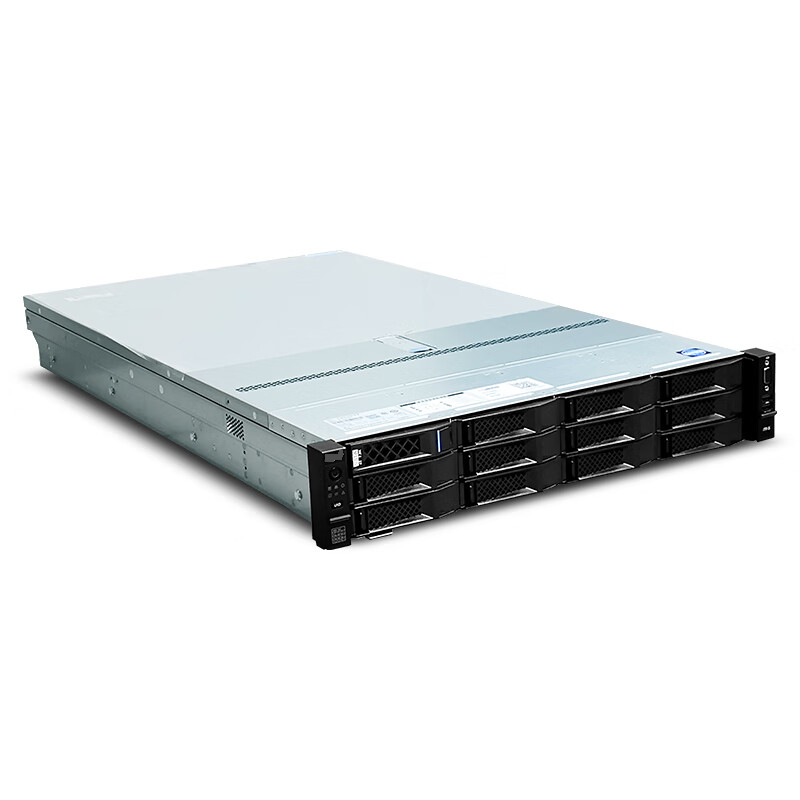

Server Angle View 1

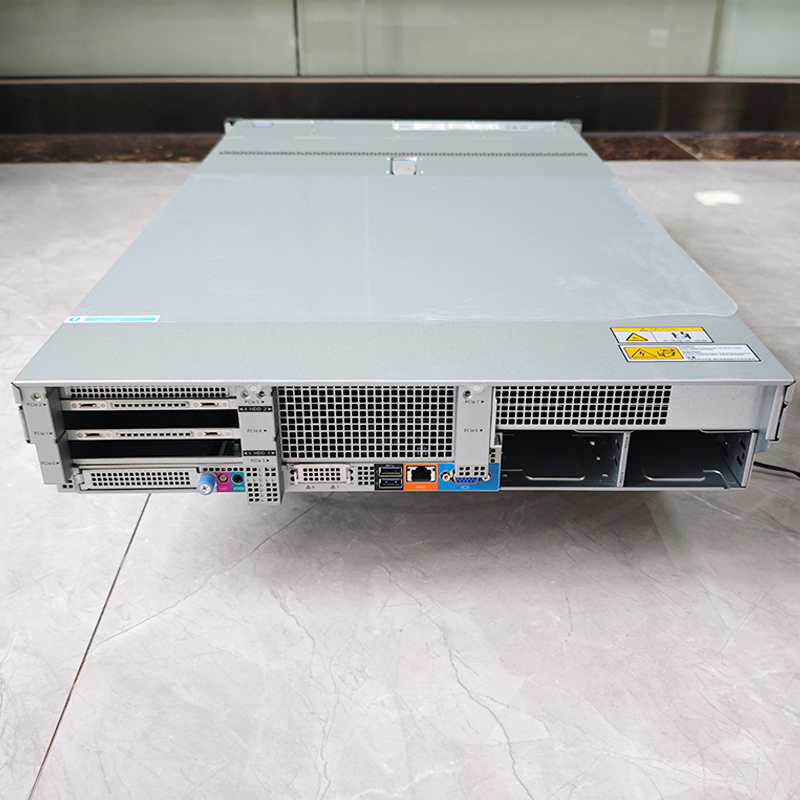

Server Angle View 2

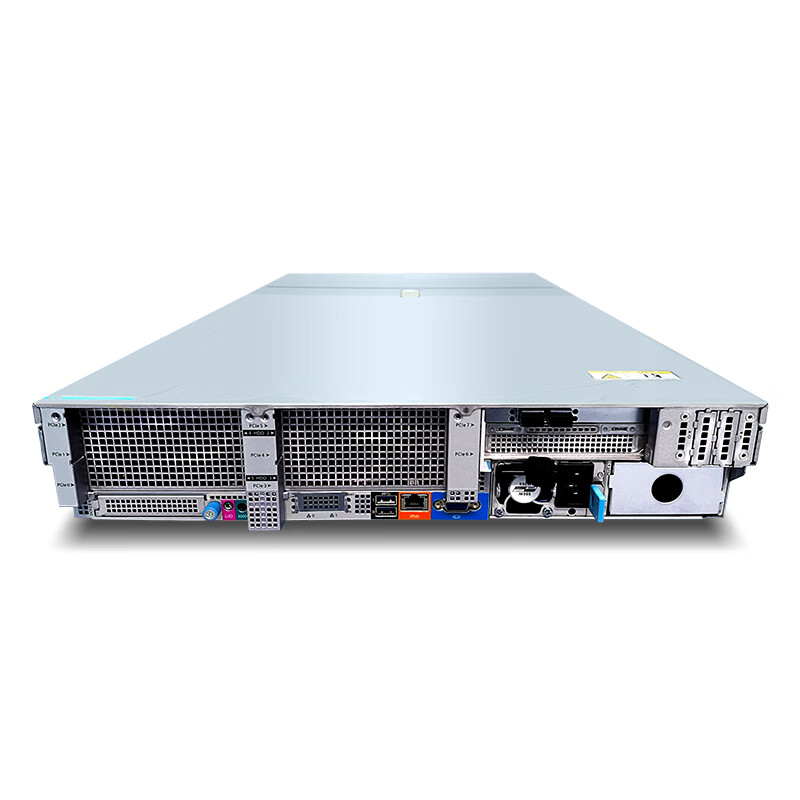

Server Angle View 3
Detail Configuration View 1
Detail Configuration View 2
Detail Configuration View 3

Frequently Asked Questions

What products are available for purchase?
You can purchase servers, storage, workstations, memory, hard disks, laptops, and desktop computers.
Do you offer product customization?
Yes, we have a professional technical team and can customize products according to your specific requirements.
How do you ensure product quality?
We ensure product quality through our highly professional engineering team and strict QA and QC inspection processes.
Can we apply to be your regional distributor?
Yes, we are actively looking for distributors and agents to establish partnership relations all over the world.
What packaging options do you provide?
Normally, products are securely packed in sturdy cartons. However, we can customize packaging options according to your specifications.
What is the typical delivery timeframe and supported languages?
The standard delivery timeframe is usually around 7 days depending on the quantity ordered. For support, our team handles communication in English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, and Italian.
