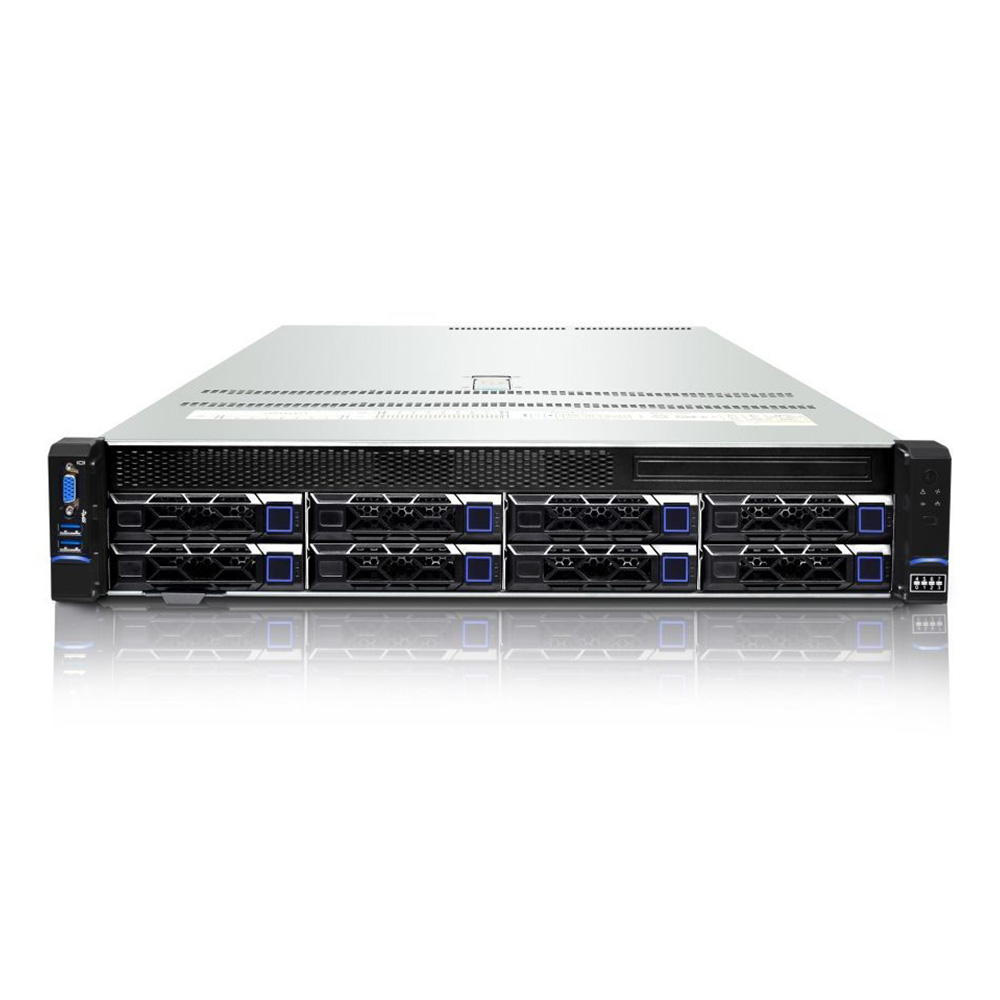

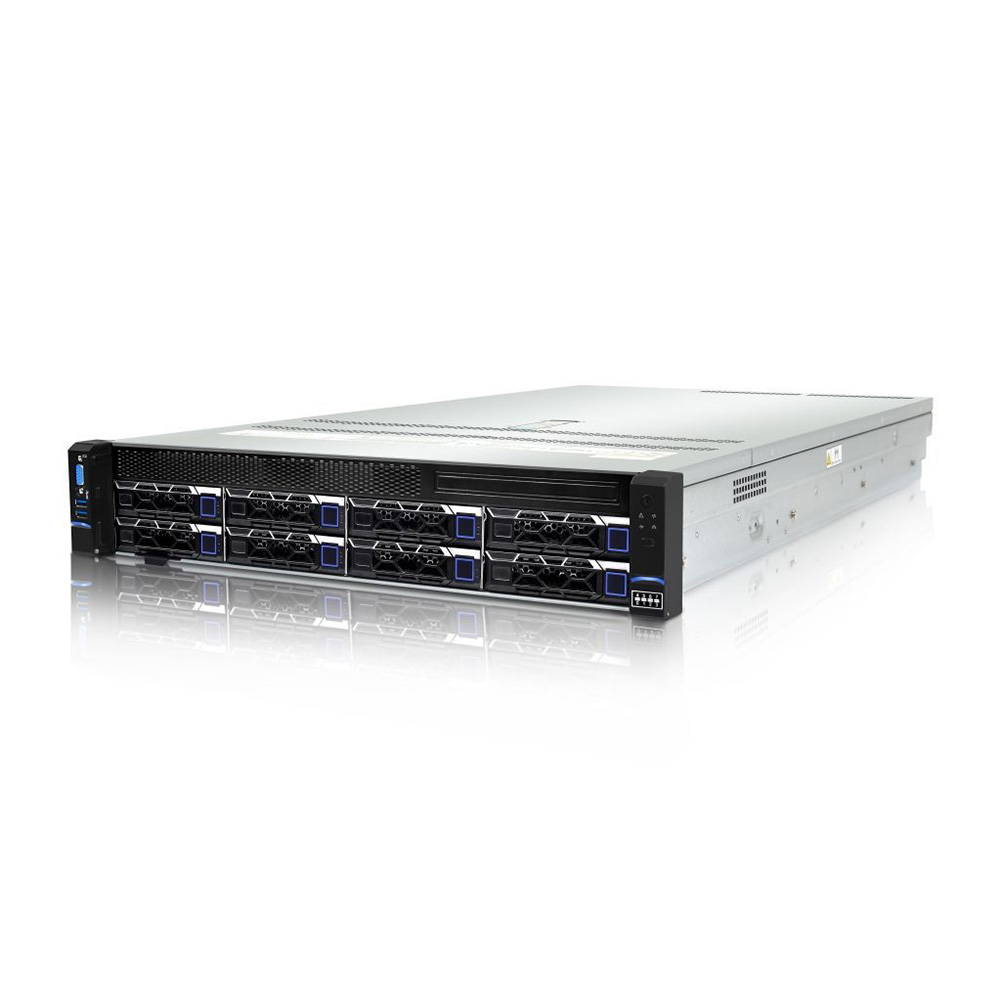

AC-629V3 2U Rack Server
This model is a 2U dual-socket general-purpose server with wide applications. It is equipped with latest EPYC™ 9004/9005 series processors. This product adopts a modular design and can be flexibly configured according to business needs. It has excellent computing performance and rich expansion capabilities, achieving excellent cost-effectiveness and energy efficiency, and is suitable for applications such as cloud computing, virtualization, high-performance computing and artificial intelligence.

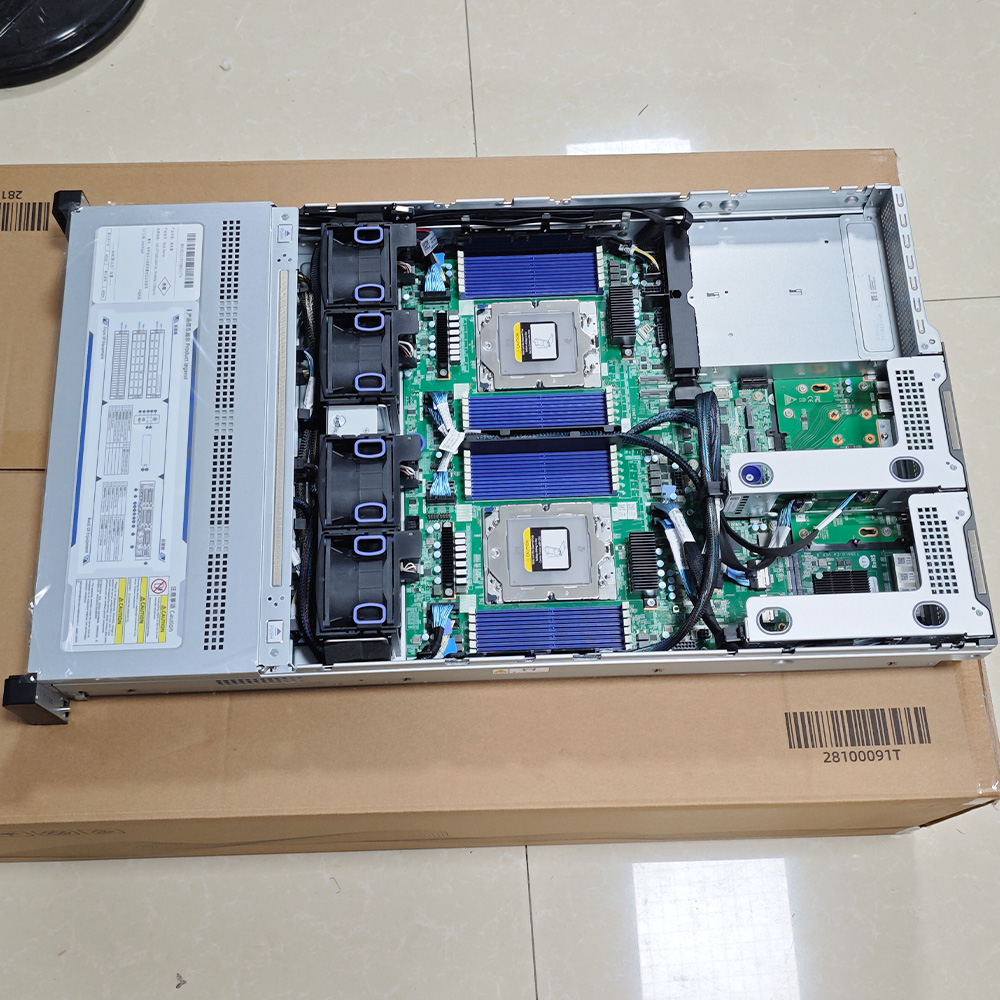

Supports two EPYC™ 9004/9005 series processors, each with up to 192 cores and a maximum TDP of 500W. Four xGMI interconnects maximize CPU computing power. Supports 24 DDR5 memory modules with a maximum frequency of 6400MT/s.
Decoupled hardware module design enables flexible configuration of compute, storage, and networking. Includes support for up to 24 U.2 NVMe slots and 10 standard PCIe expansion slots. Supports OCP NIC 3.0 network expansion.
Key system components are redundant and hot-swappable. Integrated intelligent management chip provides an open platform supporting IPMI 2.0, Redfish, and SNMP with remote KVM and virtual media status monitoring.
| Function | Technical specifications |
| Type | 2U rackmount |
| Processor | Supports two EPYC™ 9004/9005 series processors, with a single CPU supporting up to 192 cores and a maximum power draw of 500W. 4 xGMI links |
| Storage Controller | Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID card |
| Memory | 24 DDR5 memory slots, supporting up to 6400MT/s, RDIMM/3DS RDIMM |
| Storage | Front: Supports up to 12 3.5-inch or 24 2.5-inch hard drives Rear: Supports up to 4 2.5-inch hard drives Internal: Supports 2 M.2(2280/22110, PCIe 3.0 x4) Supports up to 24 U.2 NVMe drives |
| PCI-E Expansion | Supports up to 10 standard PCIe expansion slots |
| GPU | Supports up to two full-height, full-length, double-width GPUs; Up to four single-width; Up to eight half-height, half-length GPUs |
| Network | 1x 1Gb RJ45 dedicated management port. Optional OCP 3.0 network card. Optional 4x 1GbE / 2x 10Gb SFP+ / 4x 10Gb SFP+ / 2x 25Gb SFP28 |

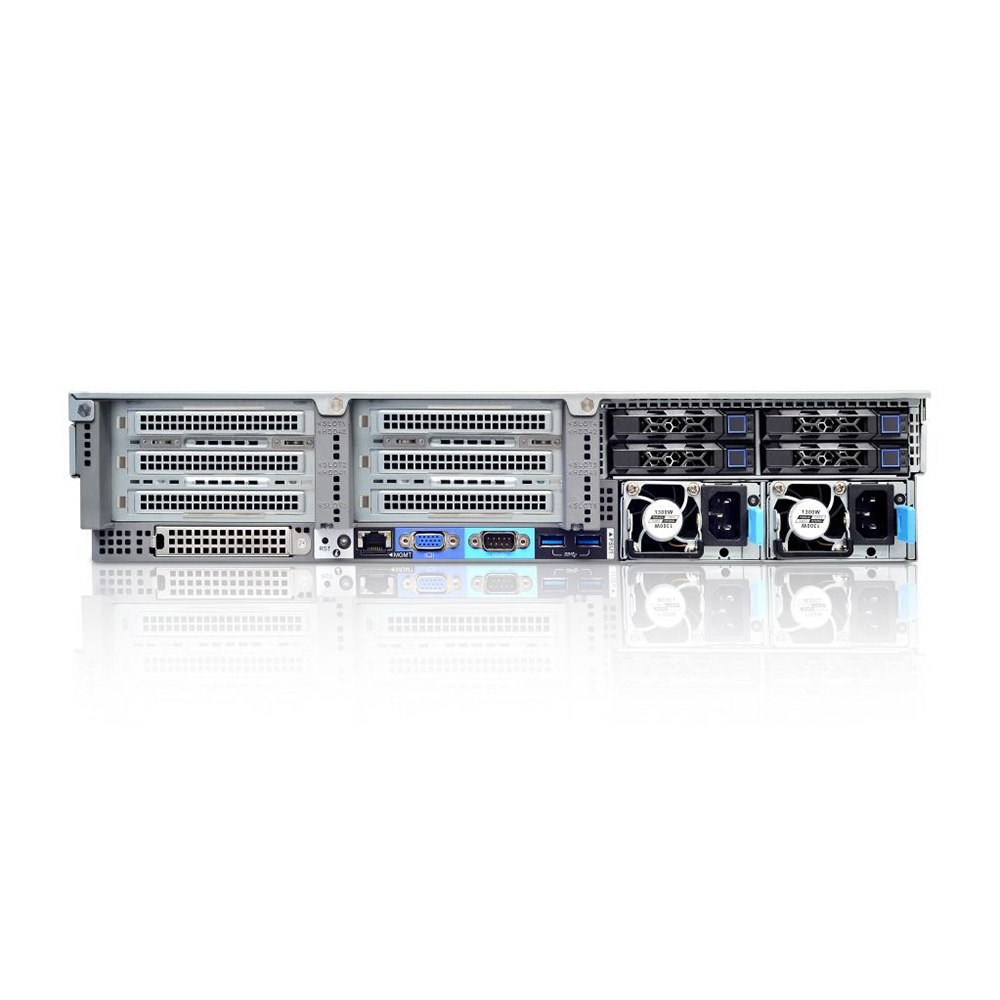

| I/O Interface | Front: 1 VGA, 2 USB 3.0 ports; Rear: 1 VGA, 2 USB 3.0 ports, 1 RJ45 management port, 1 COM port |
| Management | BMC management chip AST2600, supporting IPMI2.0, Redfish, SOL, KVM, virtual media |
| Power Supply | Two modules, 1+1 redundancy, hot swapping. Optional 800W/1300W/1600W/2000W/2400W platinum power supplies |
| Size | Width 448mm x Height 87mm x Depth 763mm |
| Operating System | Windows Server, Red Hat Enterprise Linux, SUSE, Ubuntu, Oracle Linux, VMware ESXi, Citrix XenServer |
